Cylinder Head Cover (RH) Installation Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Apply silicone sealant to the mating faces as shown.
Install the cylinder head cover with a new gasket.

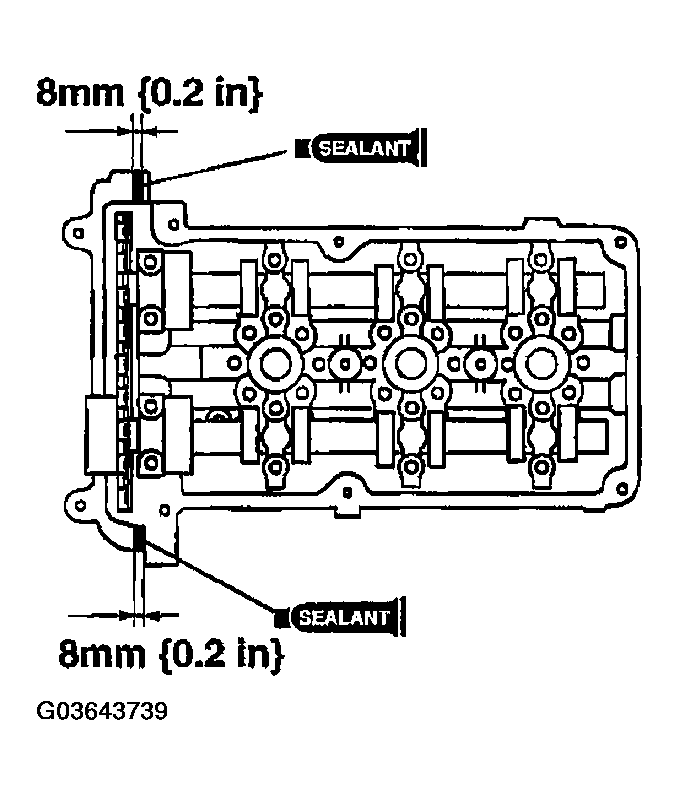

Fig 1: Applying Silicone Sealant To Mating Faces
Courtesy of MAZDA MOTORS CORP.
Install the oil control valve (OCV) with cylinder head cover raised as shown in the figure.
NOTE:
- Take care not to let the OCV tightening bolt slip into the timing chain cover when Installing the OCV tightening bolt from engine front.
Tightening torque

8.0-12.0 N.m {82-122 kgf.cm, 71-106 in.lbf}

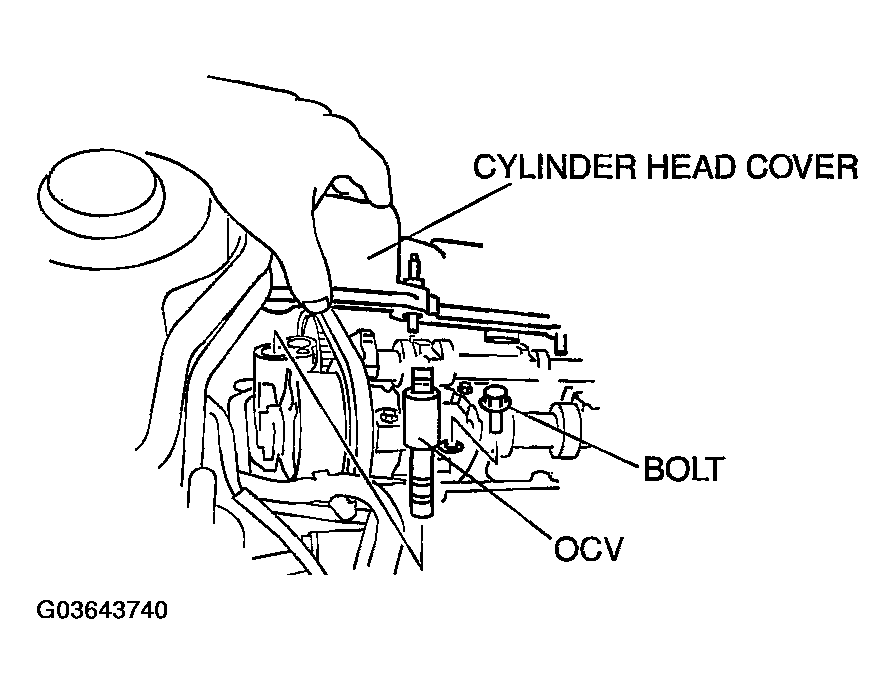

Fig 2: Installing Oil Control Valve
Courtesy of MAZDA MOTORS CORP.
Install the cylinder head cover.
Tighten the bolts in the order shown.

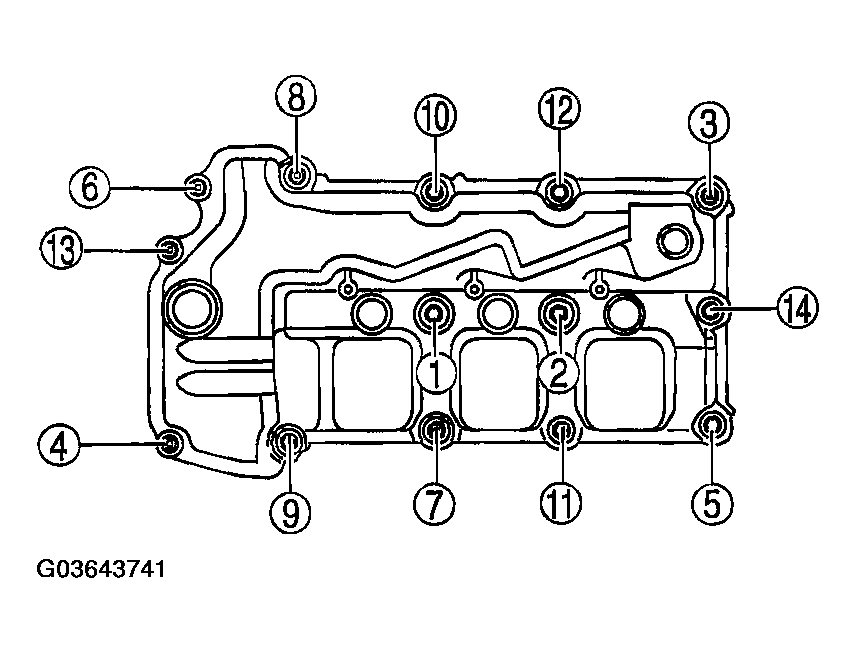

Fig 3: Tightening Order Of Cylinder Head Cover Bolts
Courtesy of MAZDA MOTORS CORP.
