Front Drive Belt

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the front drive belt auto tensioner indicator mark does not exceeds the limit.

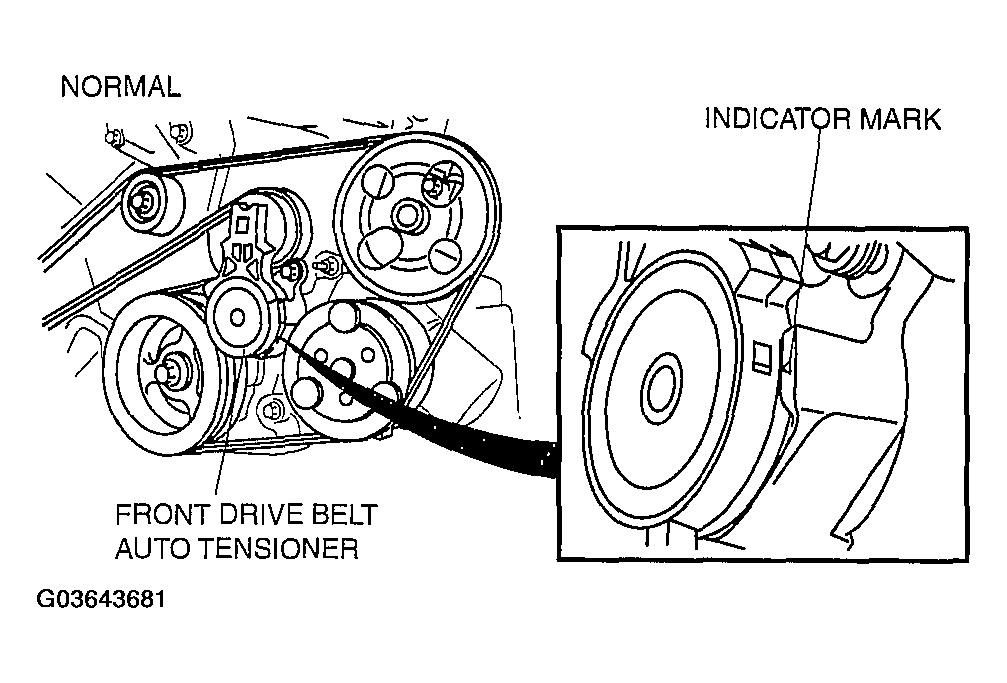

Fig 1: Identifying Front Drive Belt Auto Tensioner Indicator Mark (Within Limit)
Courtesy of MAZDA MOTORS CORP.
- If it exceeds the limit, replace the front drive belt. (See FRONT DRIVE BELT .)

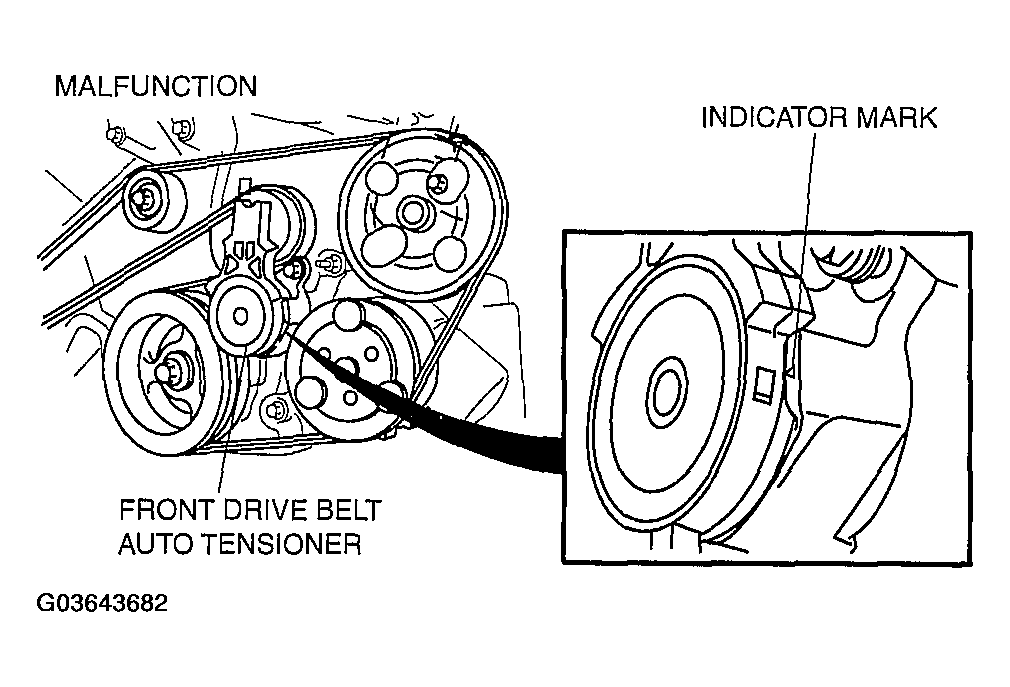

  Fig 2: Identifying Front Drive Belt Auto Tensioner Indicator Mark (Out Of Limit)
  Courtesy of MAZDA MOTORS CORP.
