Cylinder Head (LH) Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the cylinder head bolts in several passes in the order shown.

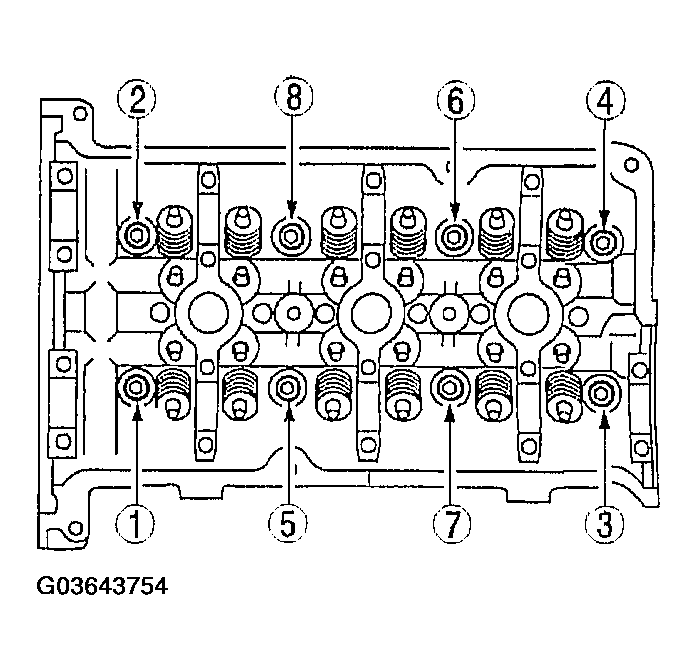

    Fig 1: Identifying Loosening Order Of Cylinder Head Bolts
    G03643754Courtesy of MAZDA MOTORS CORP.
