No. 4 Engine Mount Bracket and No. 4 Engine Mount Rubber Installation Note
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

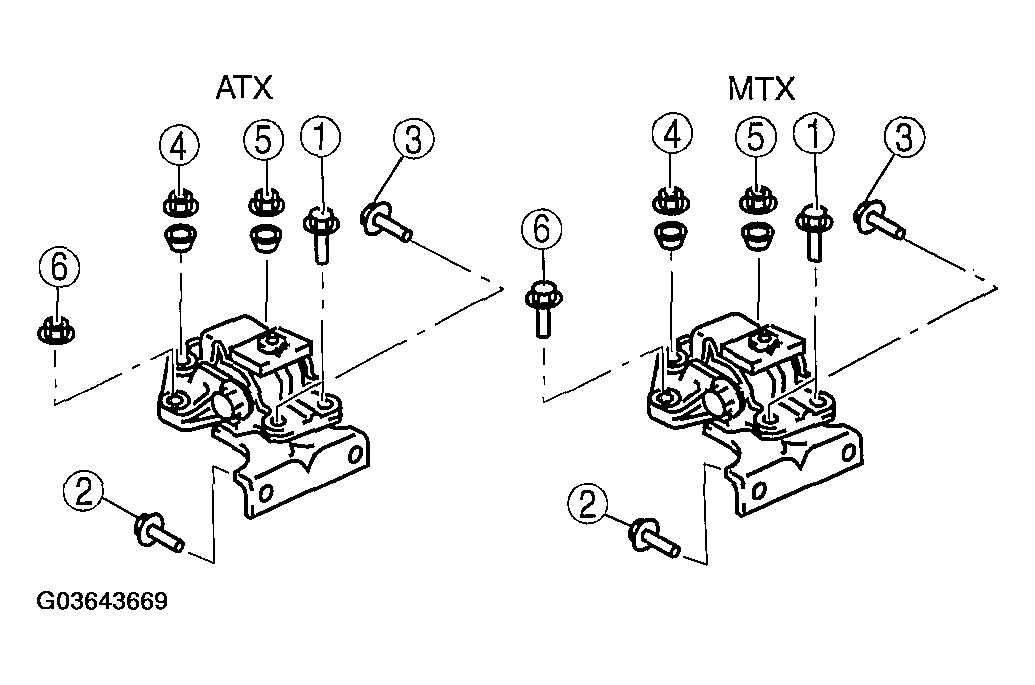

- Tighten the No. 4 engine mount bracket and No. 4 engine mount rubber bolt and nut in the order as shown.
BOLT AND NUT TIGHTENING TORQUE
| Bolt and nut No. |
Tightening torque (N.m {kgf.m, ft.lbf}) |
| 1, 2, 3 |
74.5-100.9 {7.6-10.3, 54.9-74.4} |
| 4, 5, 6 |
66.6-93.1 {6.80-9.49, 49.2-68.6} |
Courtesy of MAZDA MOTORS CORP.
