Service Gauge Port Valves
WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

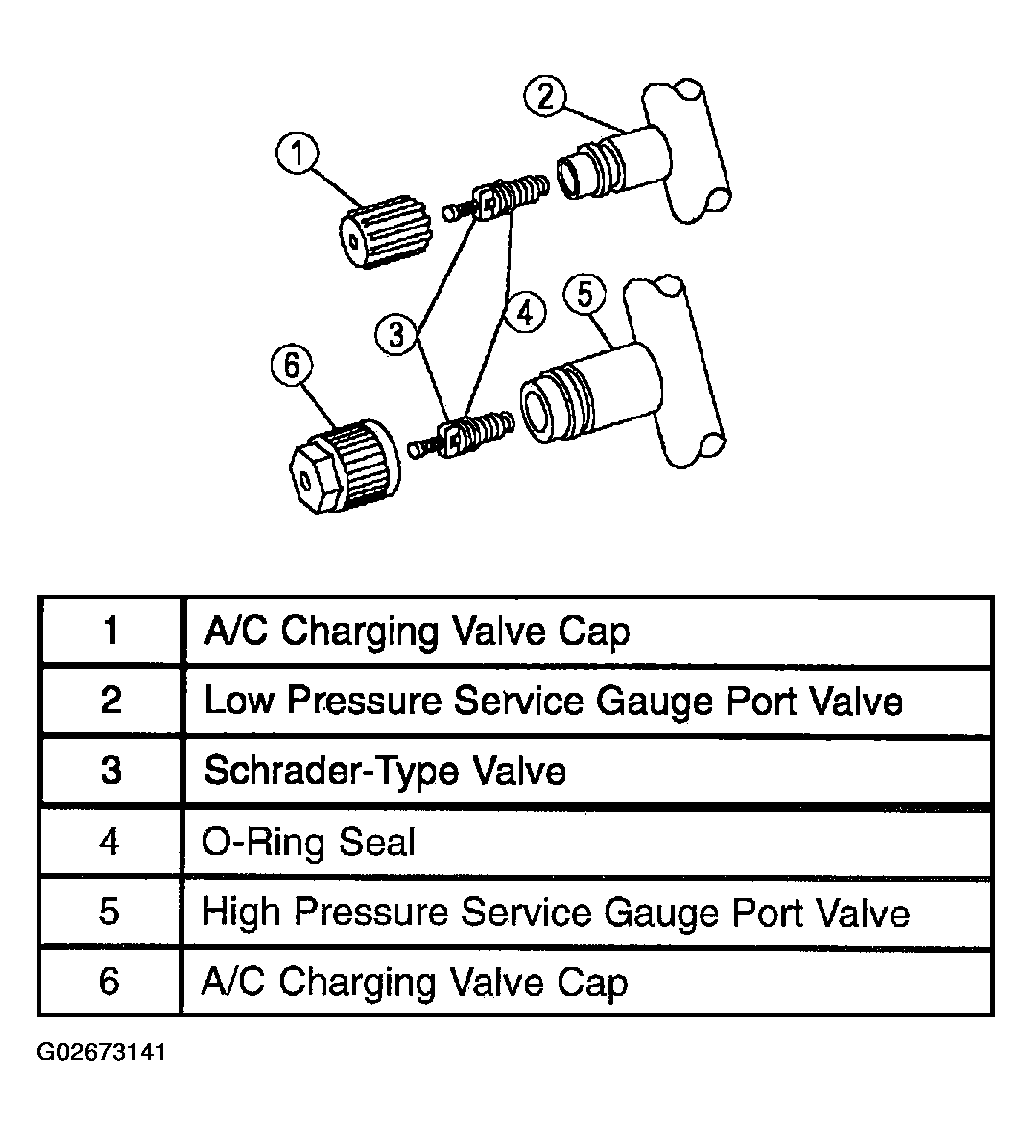

The high-pressure service gauge port valve is located on the compressor manifold and tube assembly.
The low pressure service gauge port valve is located on the receiver/drier.
The fitting is an integral part of the refrigeration line or component.
- Special couplings are required for both the high side and low side service gauge ports.
- The Schrader-type valve core can be replaced if the seal leaks.
- Always install the A/C charging valve cap on the service gauge port valves after repairing the refrigerant system.
