Air Inlet Door Actuator Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Lower the glove compartment door to the floor.
Remove the screws.

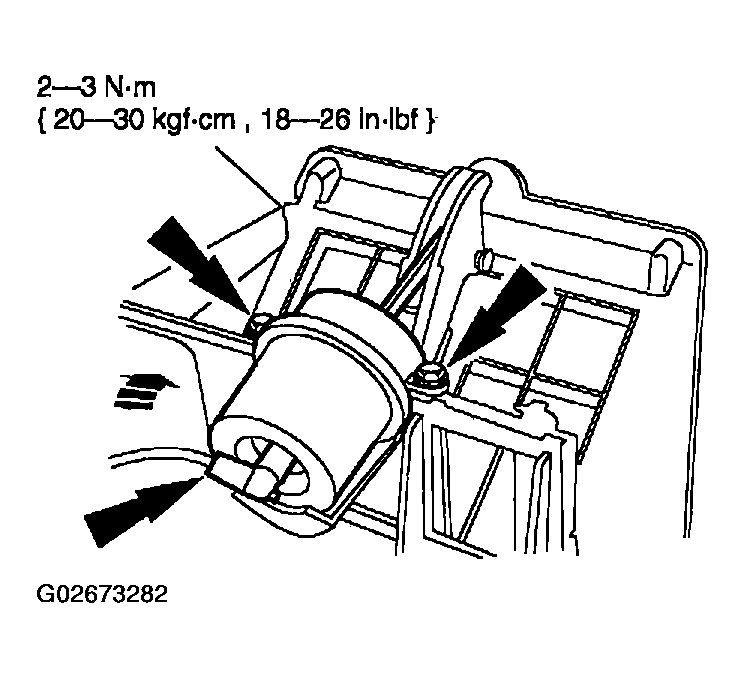

Fig 1: Removing Air Inlet Door Actuator Screws
Courtesy of MAZDA MOTORS CORP.
Disconnect the vacuum hose.
CAUTION: Do not attempt to bend any part of the lever. It is brittle and will break.
Rotate the vacuum control motor, disengage the lever, and remove the vacuum control motor.
Install in reverse order of removal.
