Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute, 2002 Mazda Tribute, and 2001 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine cooling system. Refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Raise and support the vehicle. .

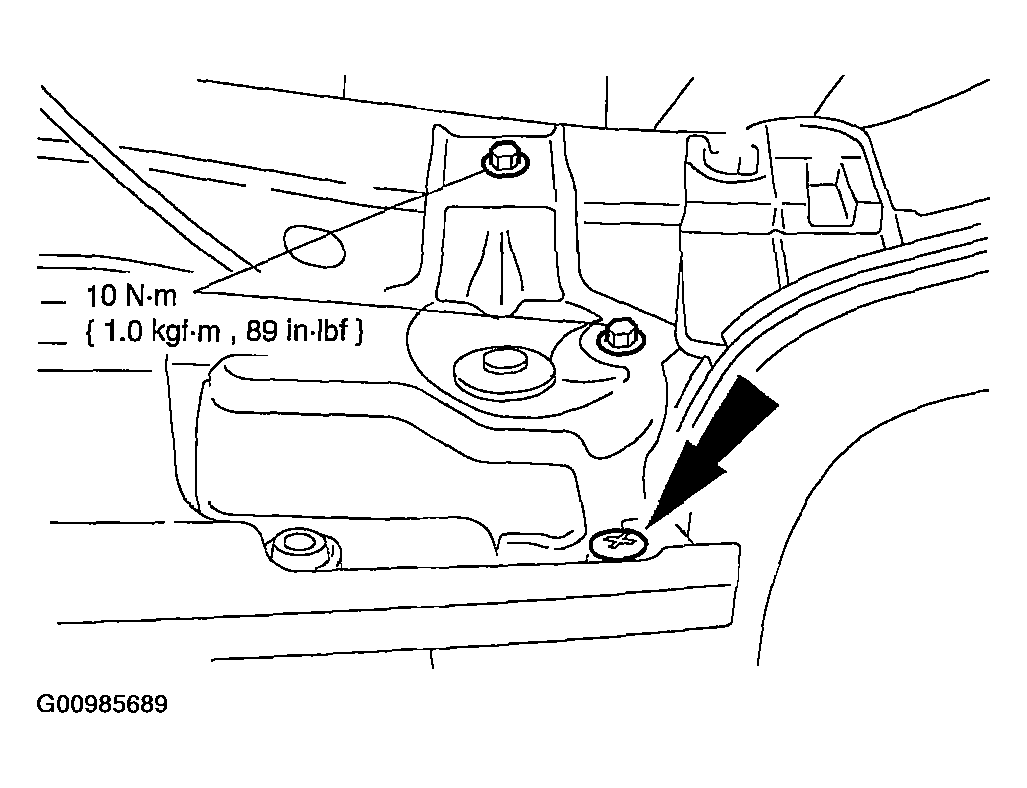

Fig 1: Locating Lower Splash Shields Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the lower splash shields.

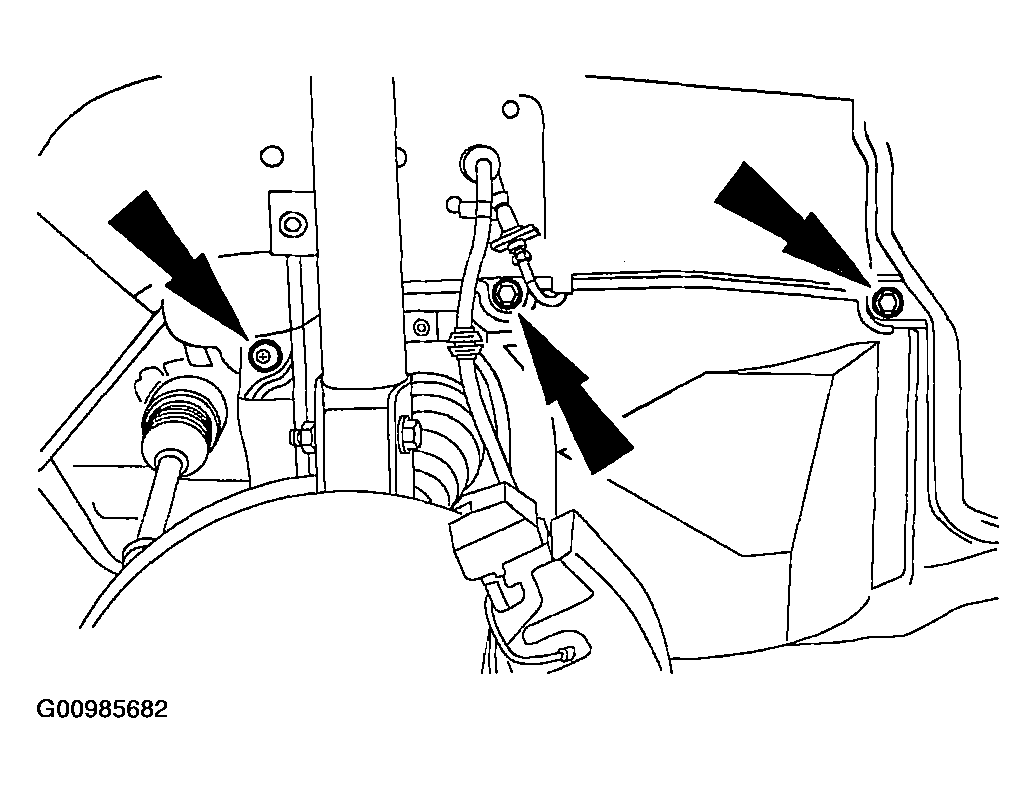

Fig 2: Locating Hose Pipes Clamps
Courtesy of MAZDA MOTORS CORP.
Disconnect the lower radiator hose, the high pressure transaxle line and the degas return hose.
Lower the vehicle.

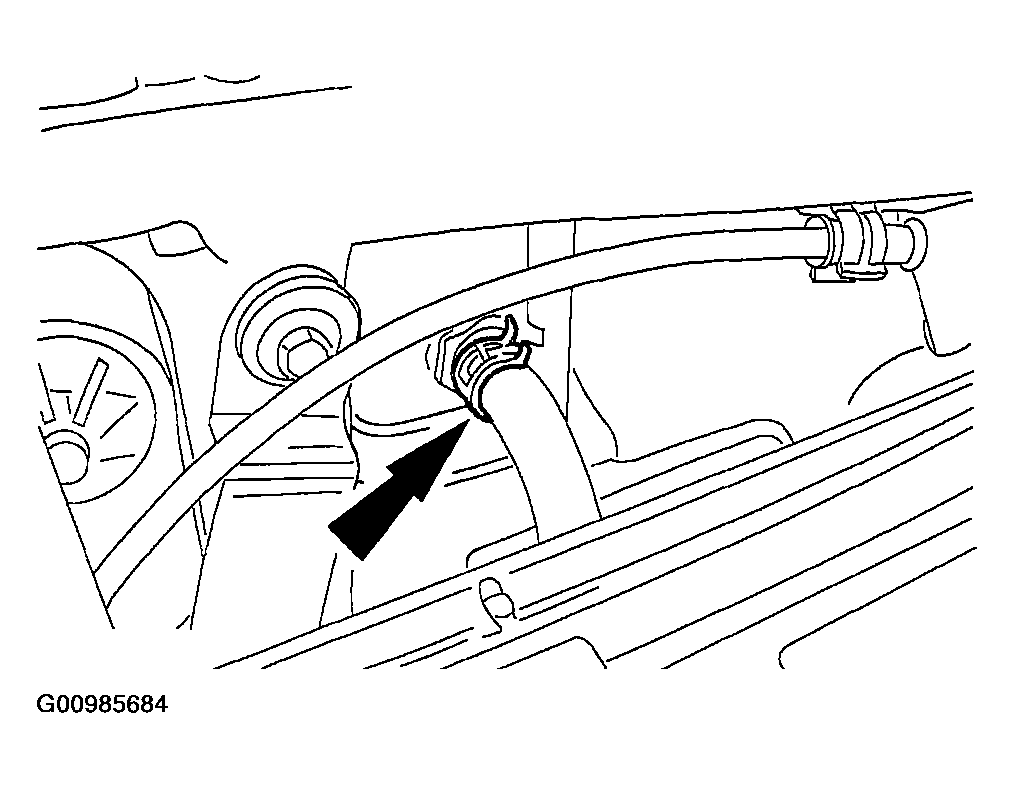

Fig 3: Locating Transaxle Return Line
Courtesy of MAZDA MOTORS CORP.
Disconnect the transaxle return line.

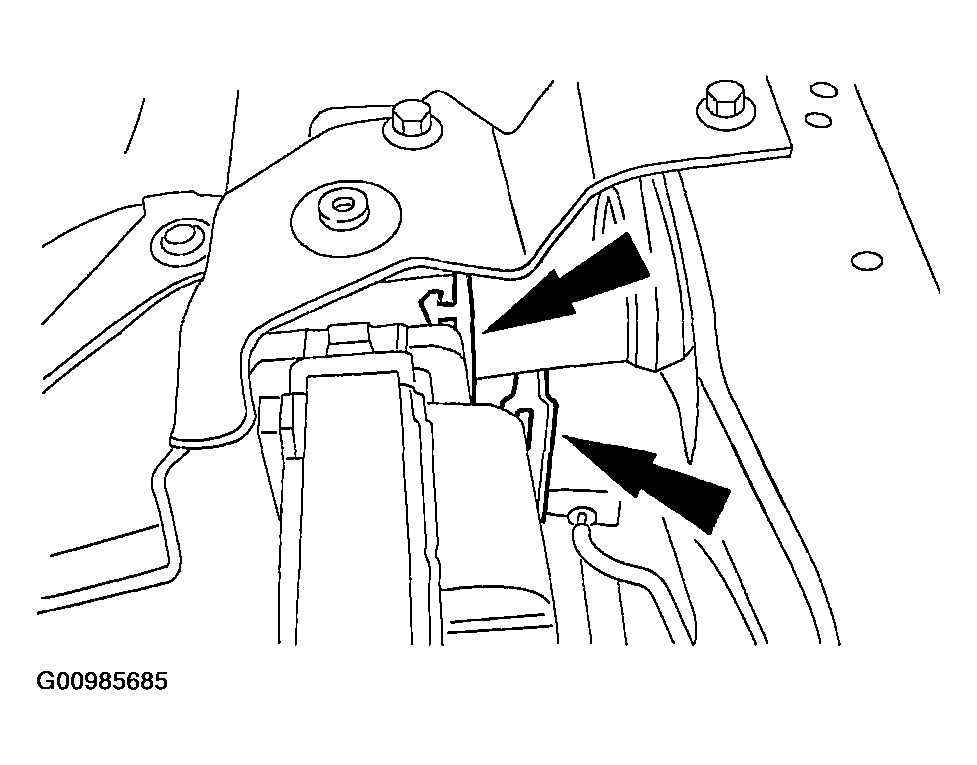

Fig 4: Locating Upper Radiator Hose & Degas Return Hose
Courtesy of MAZDA MOTORS CORP.
Disconnect the upper radiator hose and degas return hose.

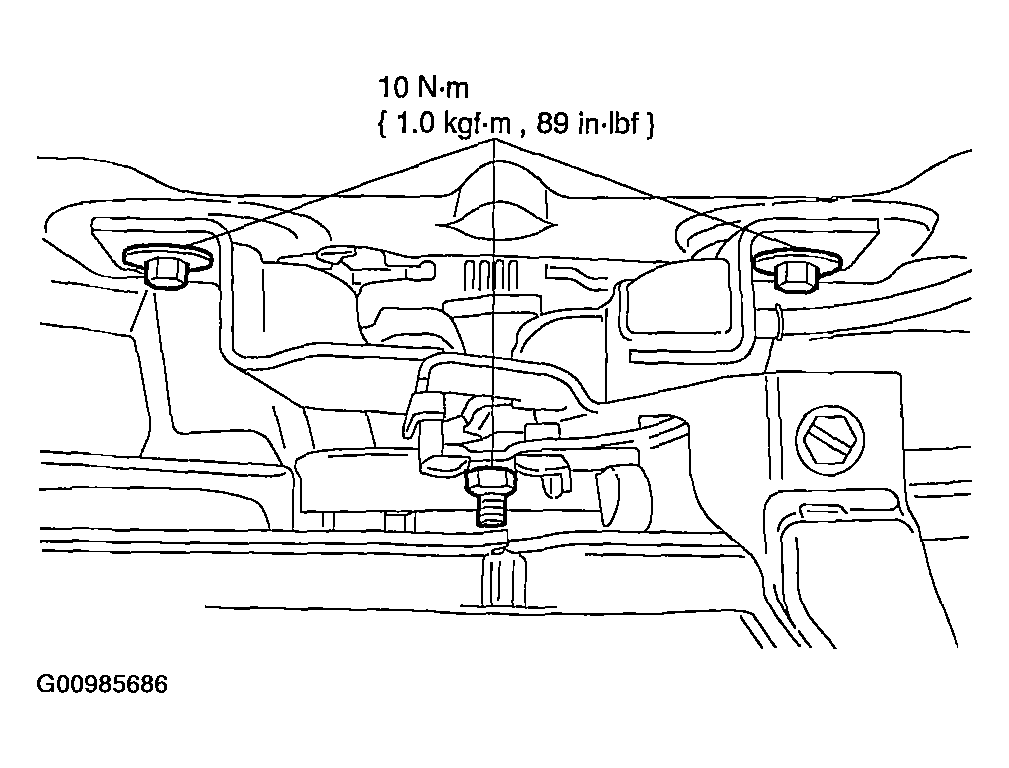

Fig 5: Locating Hood Latch Bolts
Courtesy of MAZDA MOTORS CORP.
Position the hood latch assembly out of the way.

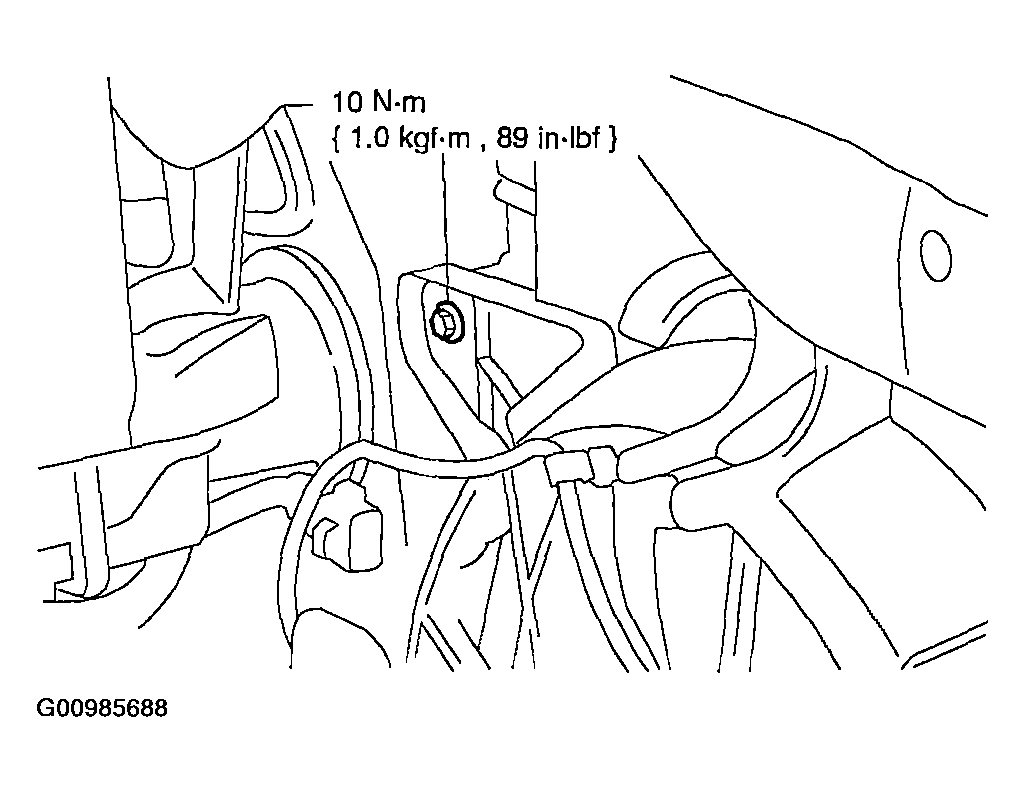

Fig 6: Locating Removal Of Two Bolts & Center Support
Courtesy of MAZDA MOTORS CORP.
Remove the two bolts and the center support.

Fig 7: Locating Bolt Retaining Cooling Fan To Radiator
Courtesy of MAZDA MOTORS CORP.
Remove the two top bolts retaining the cooling fan to the radiator.

Fig 8: Locating Upper Radiator Support Brackets Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the upper radiator support brackets, and remove the radiator from the vehicle.
To install, reverse the removal procedure.
