Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute, 2002 Mazda Tribute, and 2001 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine cooling system. Refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .

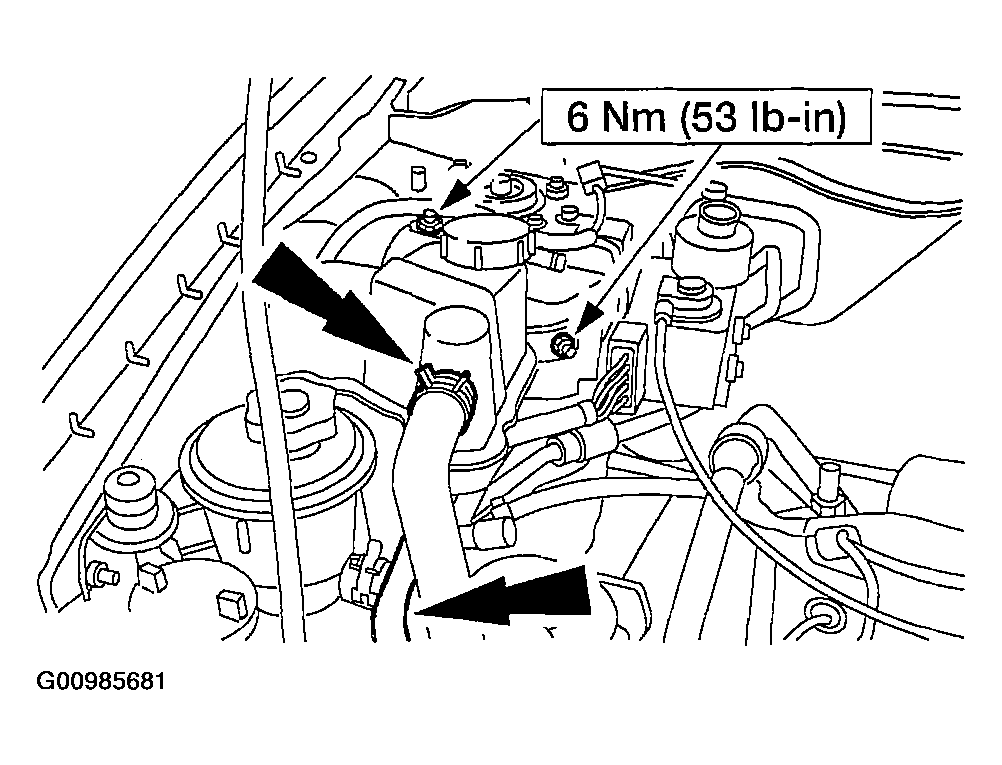

    Fig 1: Locating Degas Bottle
    G00985681Courtesy of MAZDA MOTORS CORP.
  2. Remove the degas bottle.
  3. To install, reverse the removal procedure.
