Resistance Inspection: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Disconnect the throttle body connector.
Measure the resistance between the throttle actuator terminals using an ohmmeter.
- If not as specified, replace the throttle body. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- If as specified, carry out the CIRCUIT OPEN/SHORT INSPECTION .

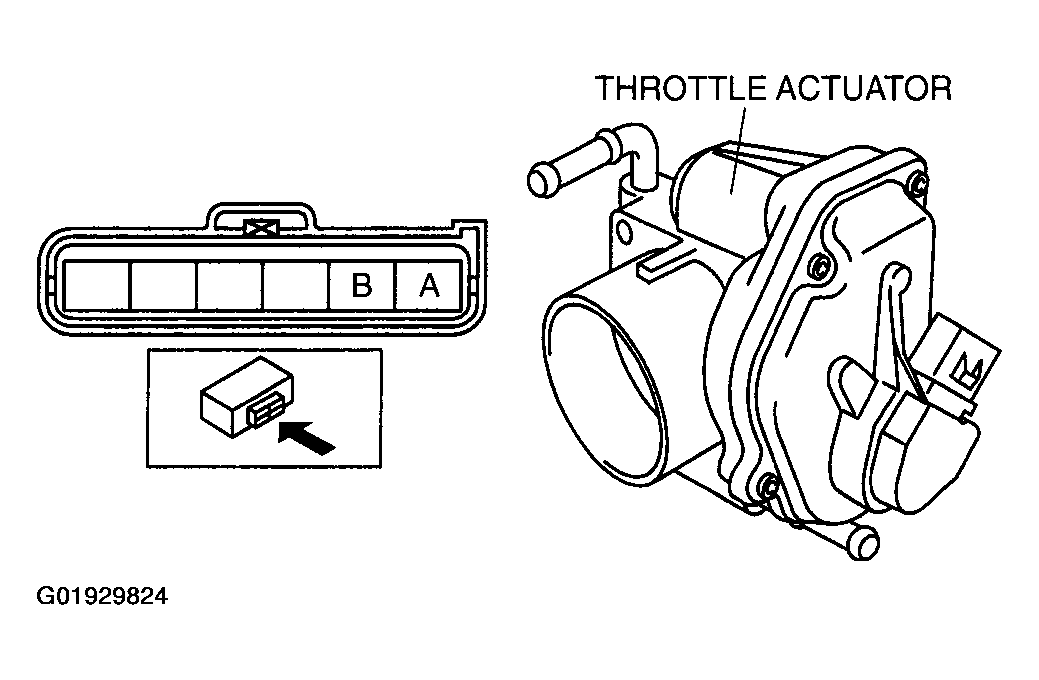

Fig 1: Identifying Throttle Actuator Terminals A & B
Courtesy of MAZDA MOTORS CORP.
