WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

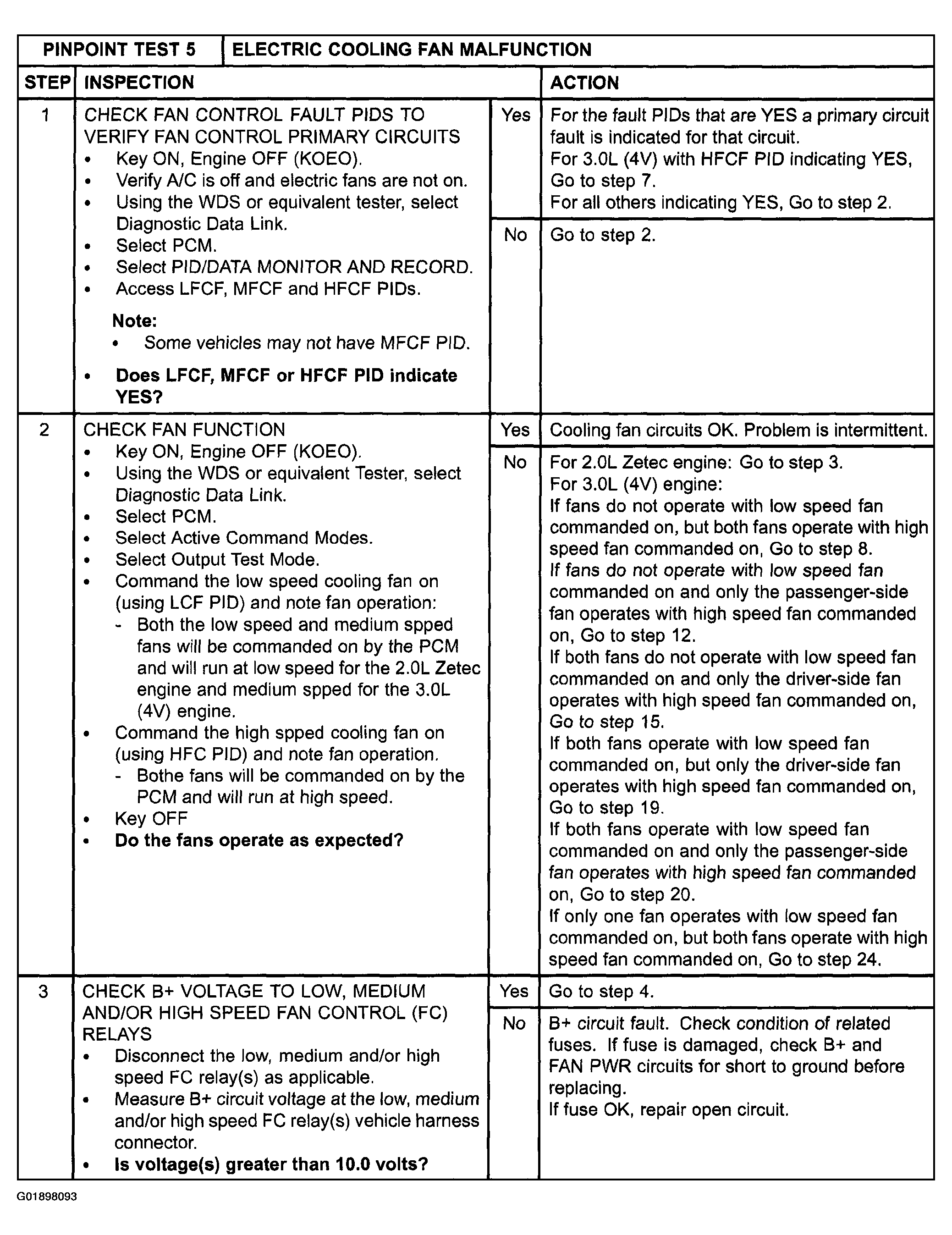

Fig 1: Electric Cooling Fan Malfunction Inspection Procedure (1 Of 8)
Courtesy of FORD MOTOR CO.

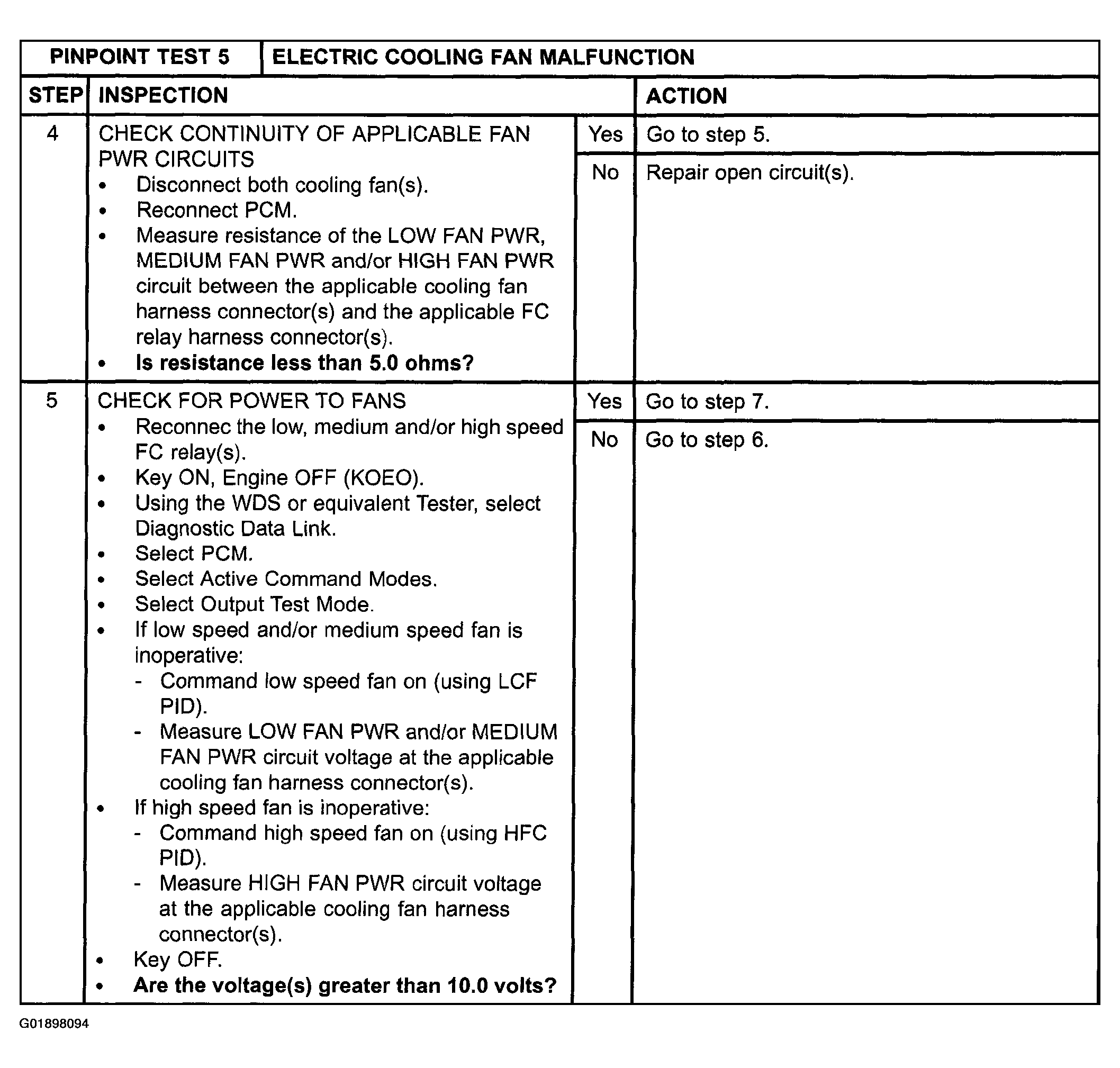

Fig 2: Electric Cooling Fan Malfunction Inspection Procedure (2 Of 8)
Courtesy of FORD MOTOR CO.
Fig 3: Electric Cooling Fan Malfunction Inspection Procedure (3 Of 8)
Courtesy of FORD MOTOR CO.

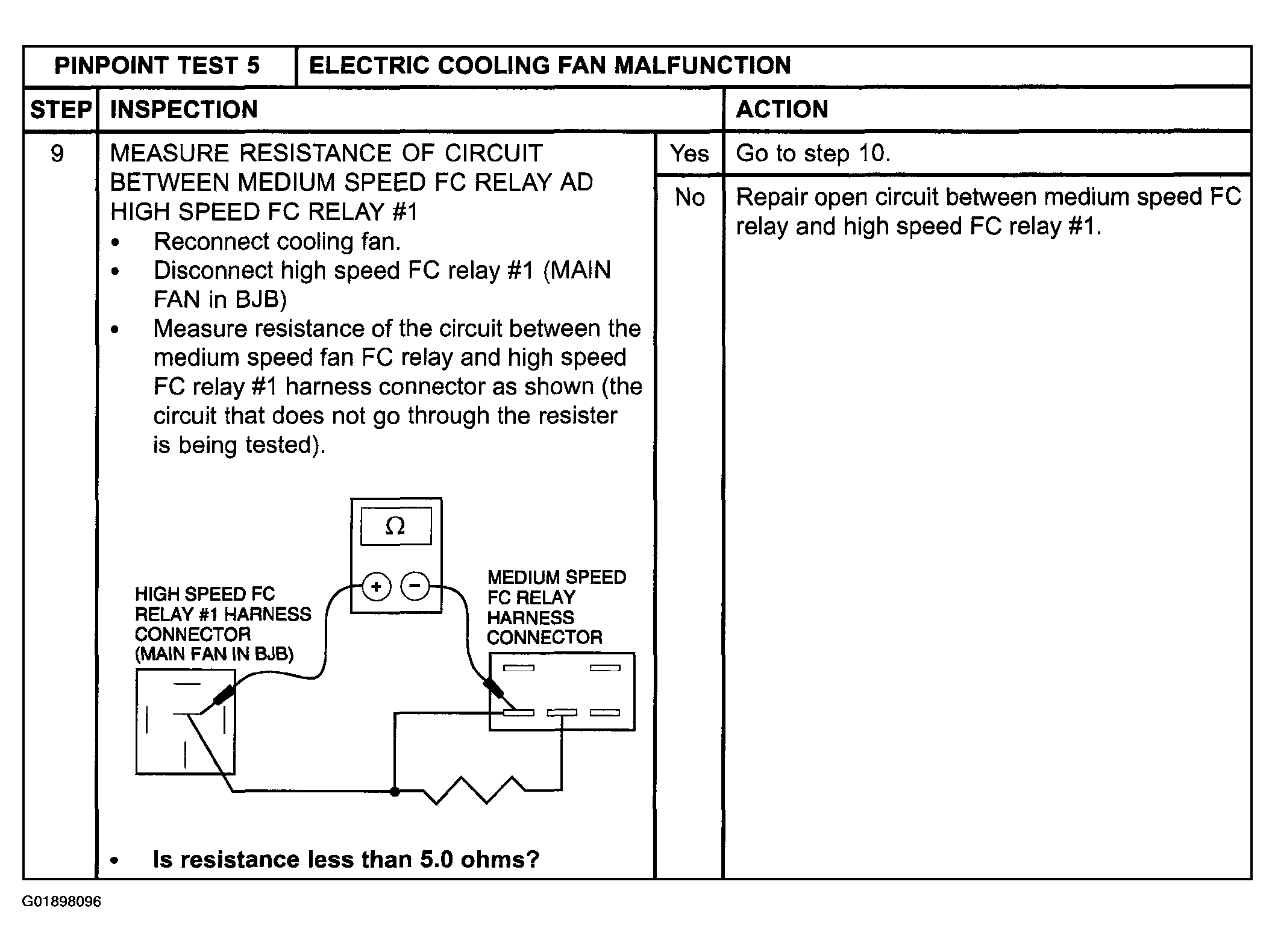

Fig 4: Electric Cooling Fan Malfunction Inspection Procedure (4 Of 8)
Courtesy of FORD MOTOR CO.

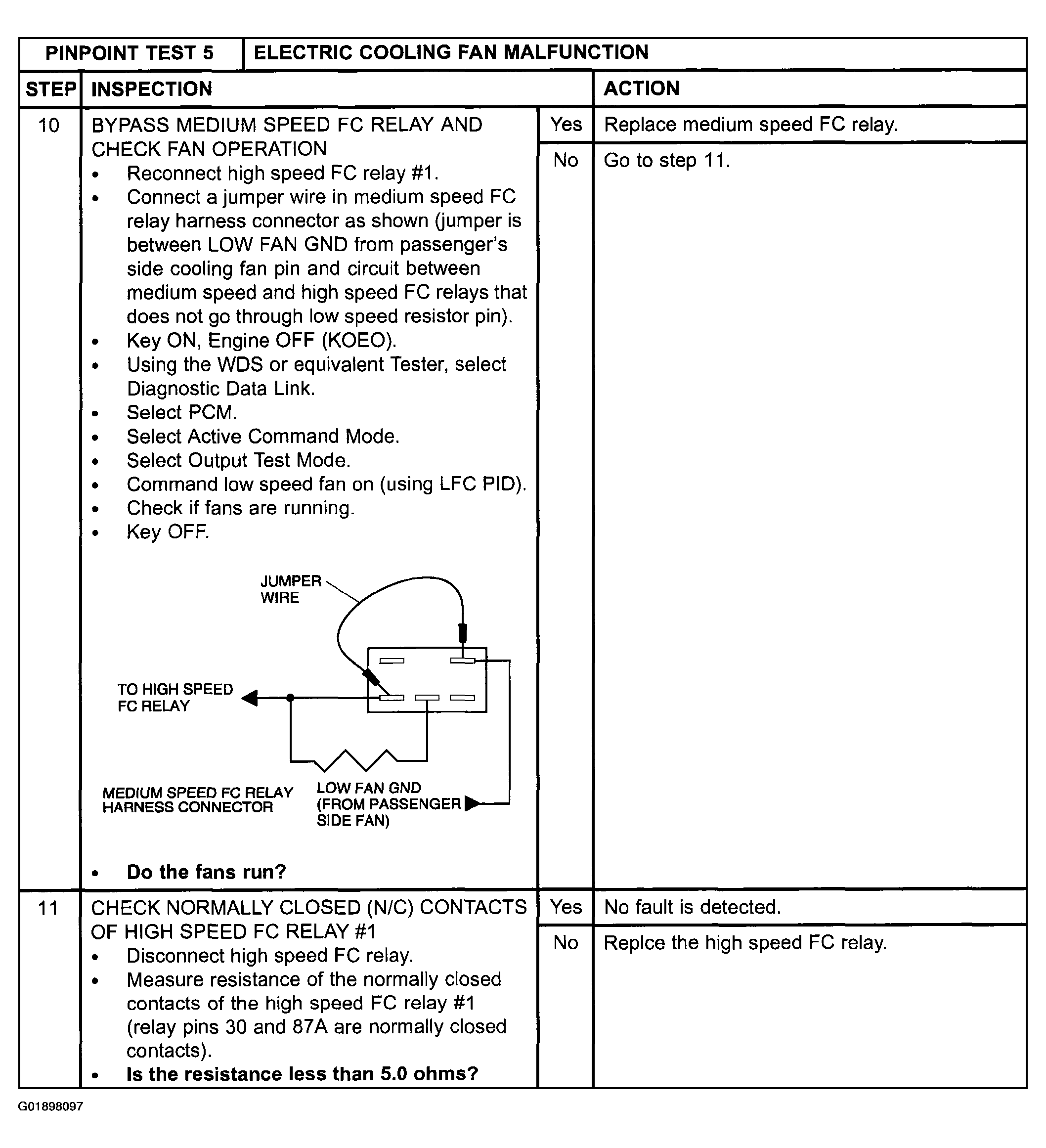

Fig 5: Electric Cooling Fan Malfunction Inspection Procedure (5 Of 8)
Courtesy of FORD MOTOR CO.

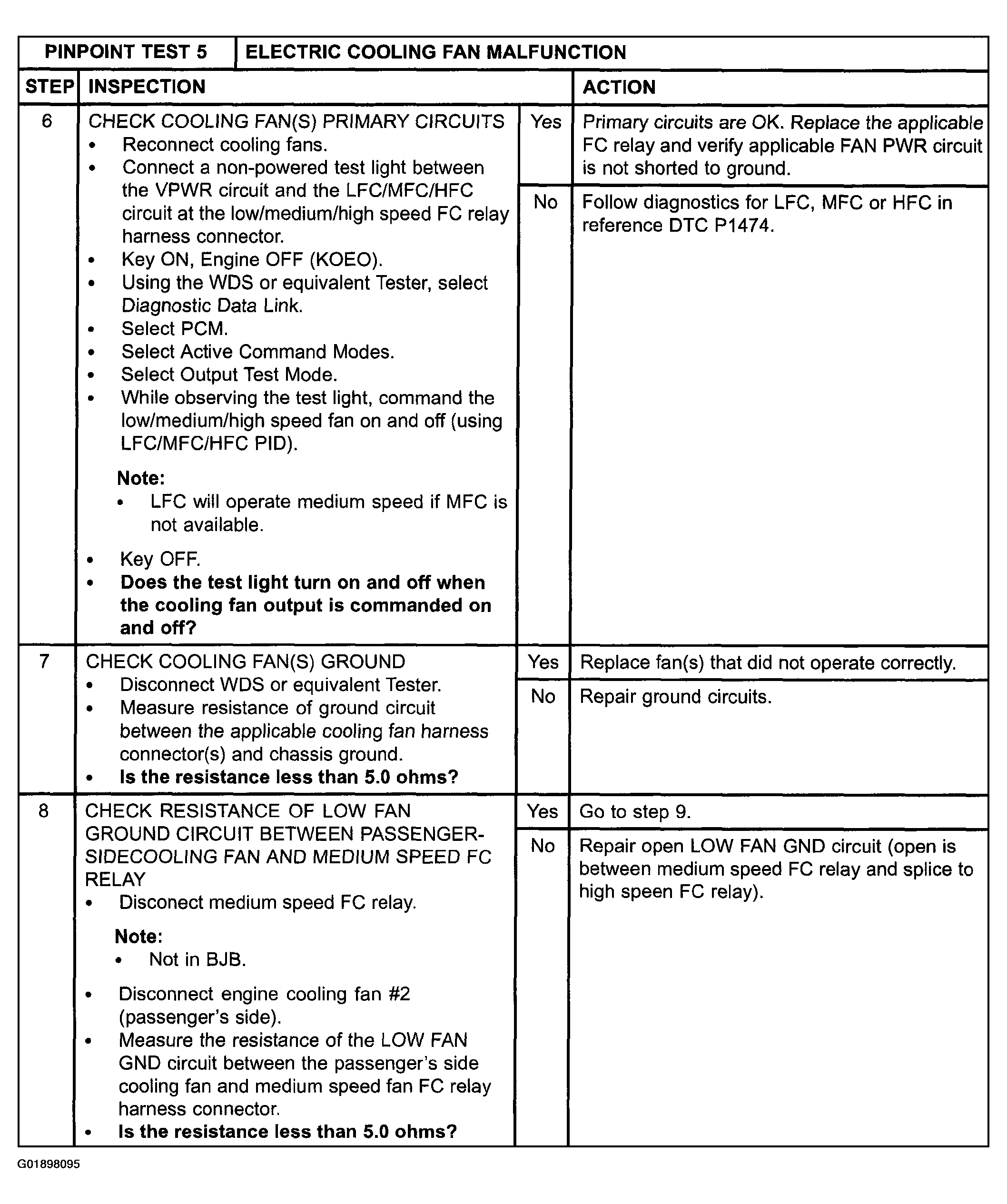

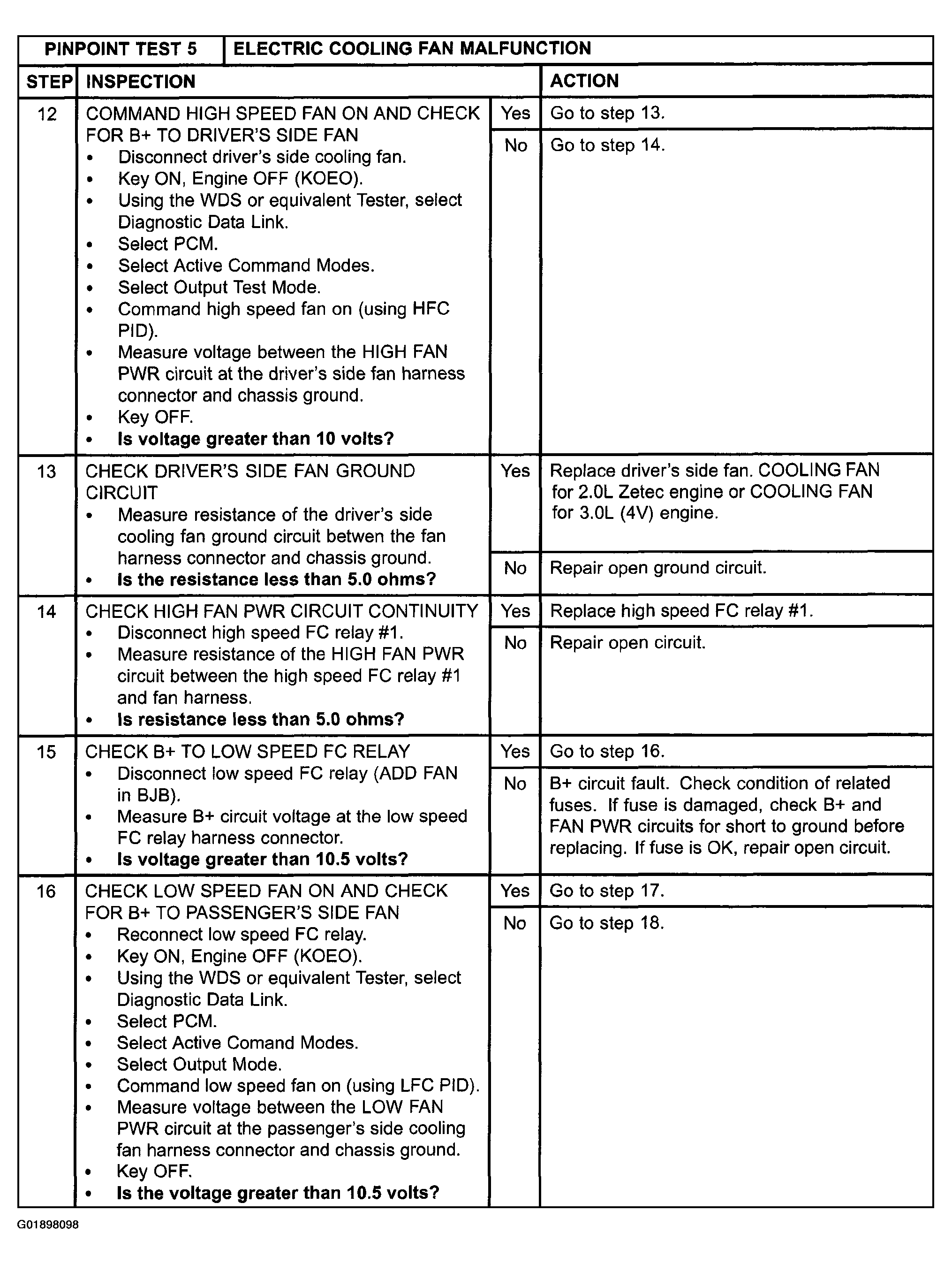

Fig 6: Electric Cooling Fan Malfunction Inspection Procedure (6 Of 8)
Courtesy of FORD MOTOR CO.

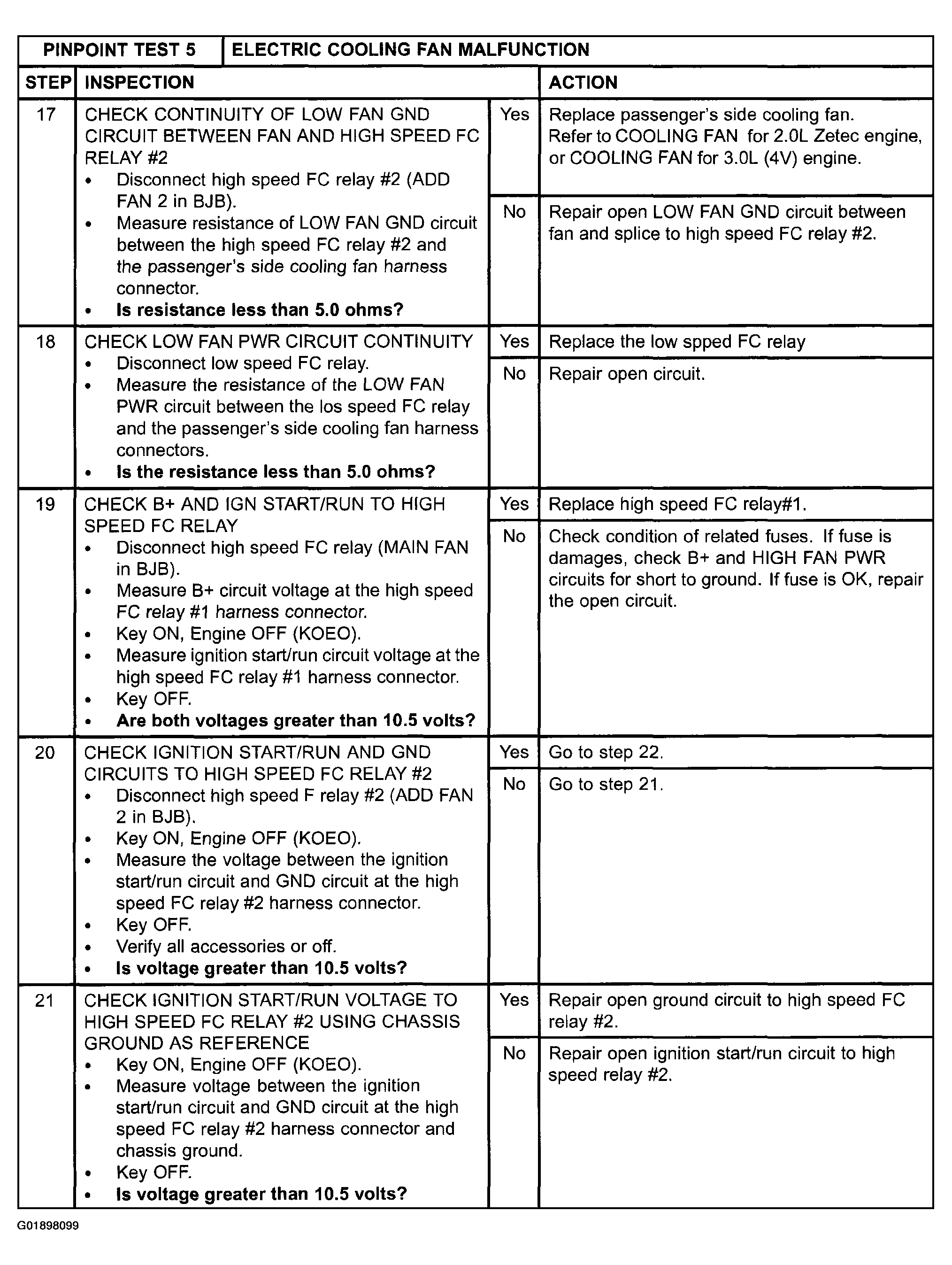

Fig 7: Electric Cooling Fan Malfunction Inspection Procedure (7 Of 8)
Courtesy of FORD MOTOR CO.

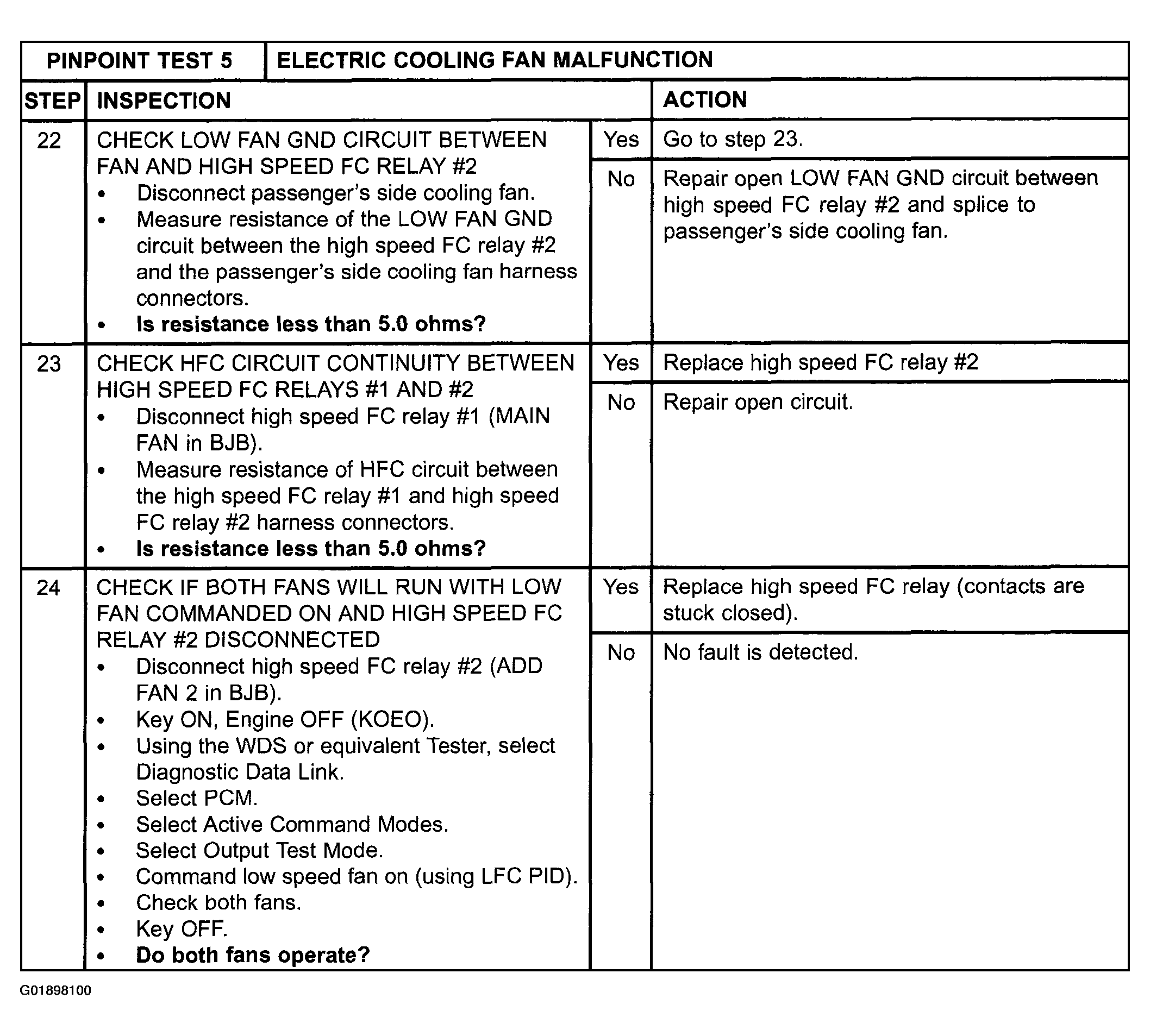

Fig 8: Electric Cooling Fan Malfunction Inspection Procedure (8 Of 8)
