On-Board Diagnostic Test - New Generation Star (NGS) Tester Hook-Up Procedure

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Make sure key is off.

Insert the vehicle interface module and program card into the SST (NGS tester) control unit.

Fig 1: Inserting Vehicle Interface Module And Program Card In To SST (NGS Tester) Control Unit
Courtesy of FORD MOTOR CO.
Plug the NGS Tester adapter cable into the interface module and the large connector into the vehicle data link connector (DLC) located under the left side of the steering column.

Fig 2: Identifying Data Link Connector Pins
Courtesy of FORD MOTOR CO.
Plug the NGS Tester power cable into the adapter power cable connector, cigarette lighter or use a battery hook-up adapter.

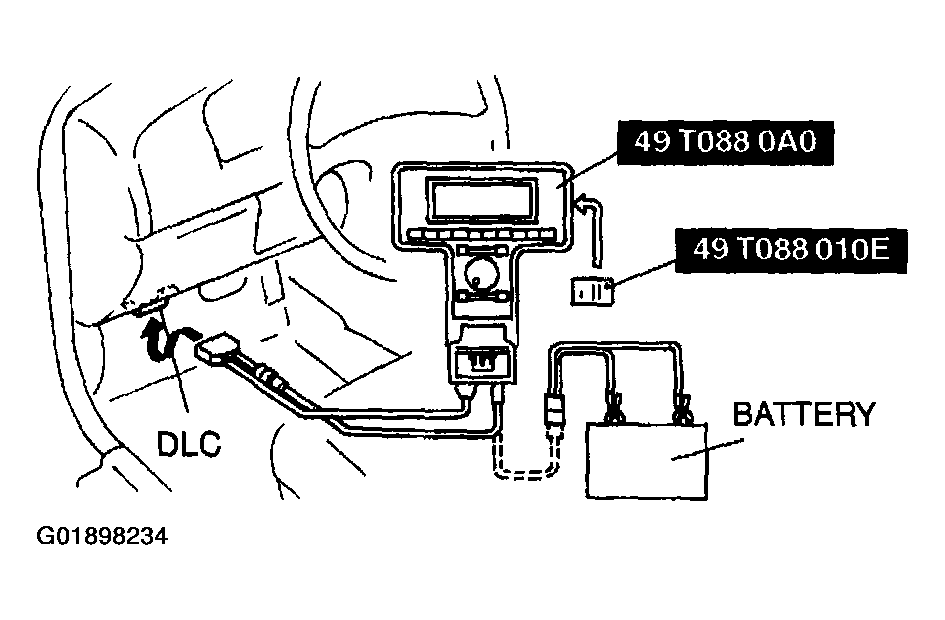

Fig 3: Connecting NGS Tester To DLC And Battery
Courtesy of FORD MOTOR CO.
NOTE:
- If the model year is not displayed, use 2001.
Listen for a double beep. The NGS Tester is now initialized. Begin the functional test of the powertrain control system.
