Diagnostic Monitoring Test Results Tables: Notes

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

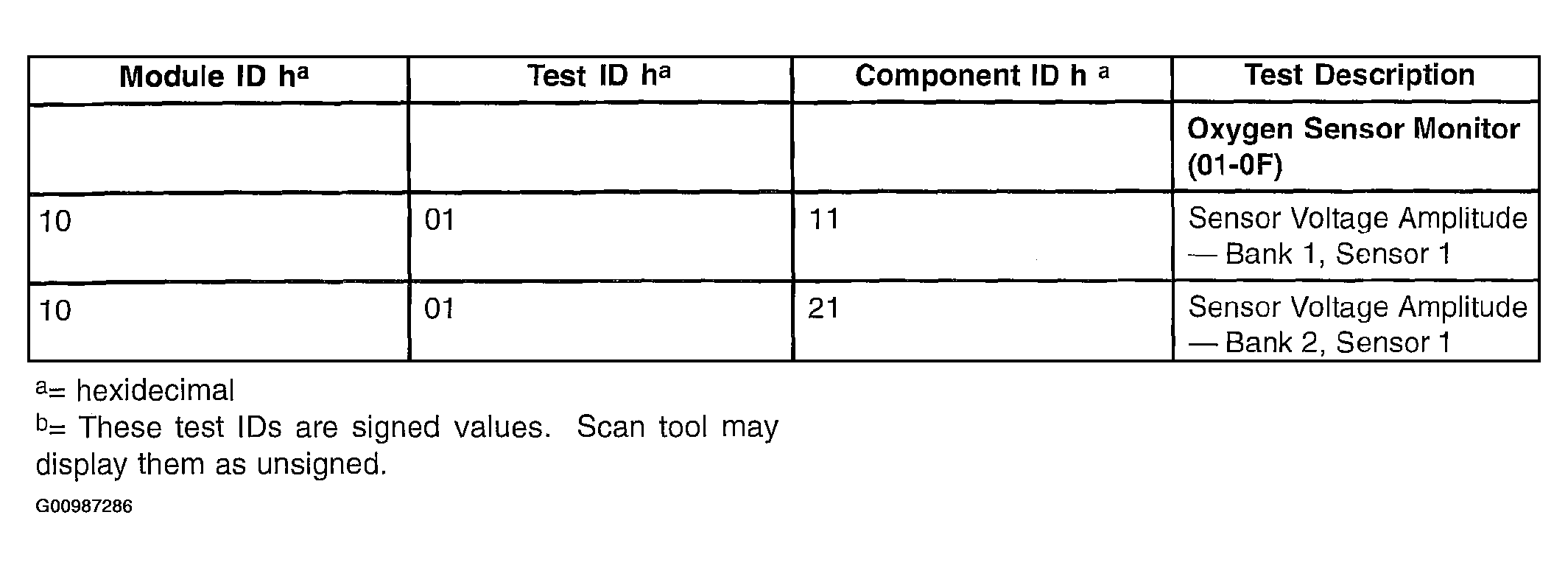

Fig 1: Diagnostic Monitoring Test Results Table (1 Of 4)

Courtesy of FORD MOTOR CO.

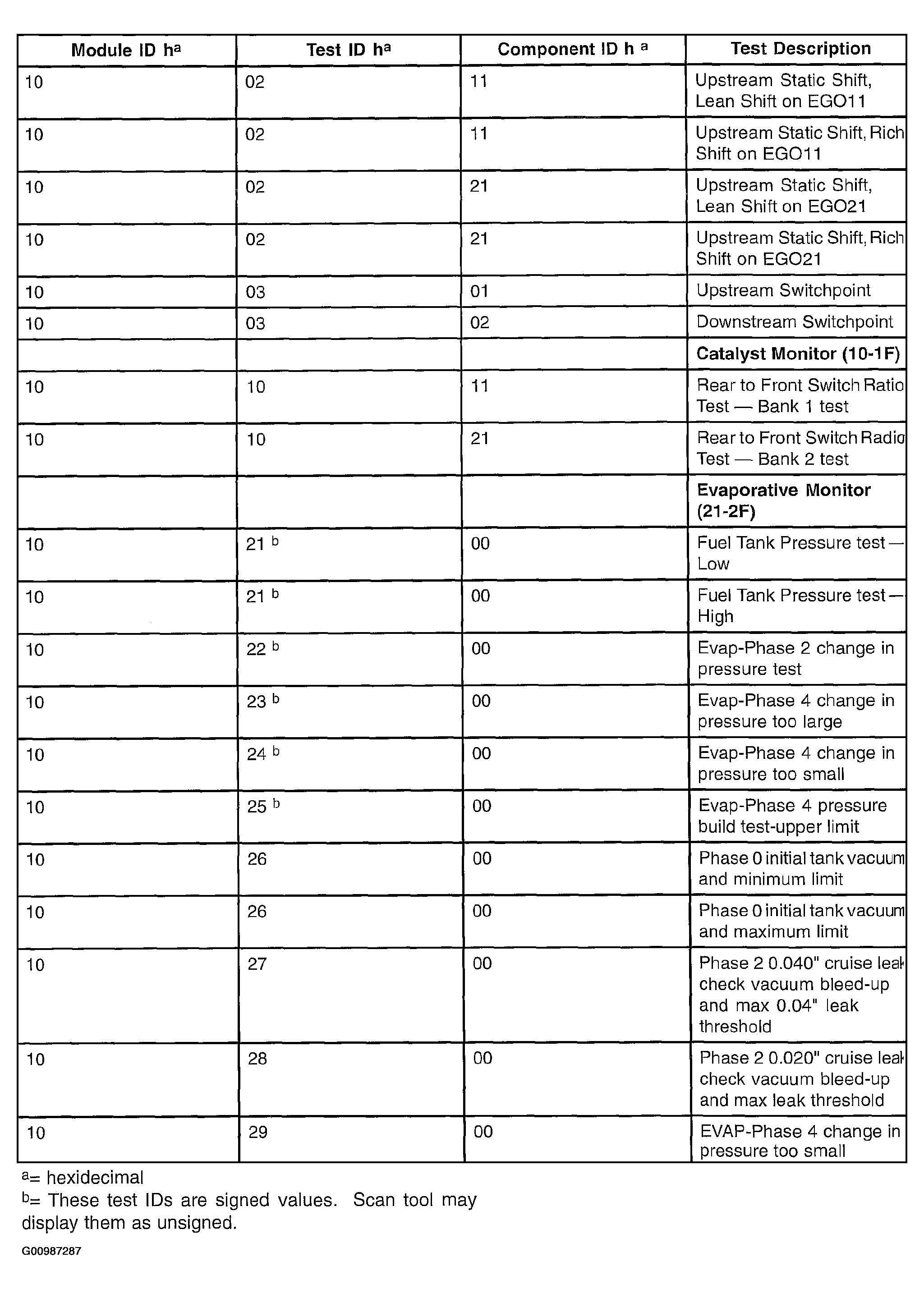

Fig 2: Diagnostic Monitoring Test Results Table (2 Of 4)

Courtesy of FORD MOTOR CO.

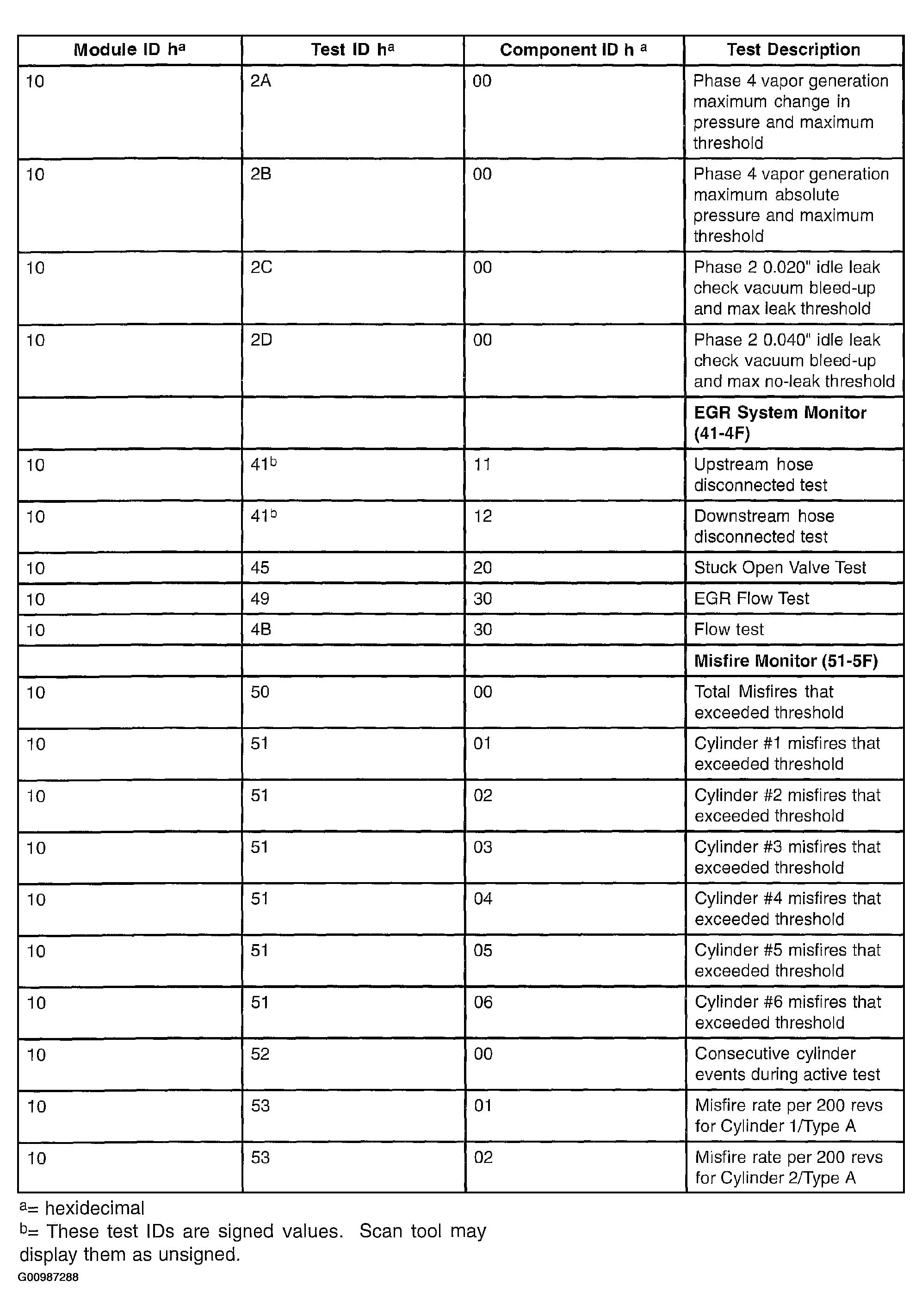

Fig 3: Diagnostic Monitoring Test Results Table (3 Of 4)

Courtesy of FORD MOTOR CO.

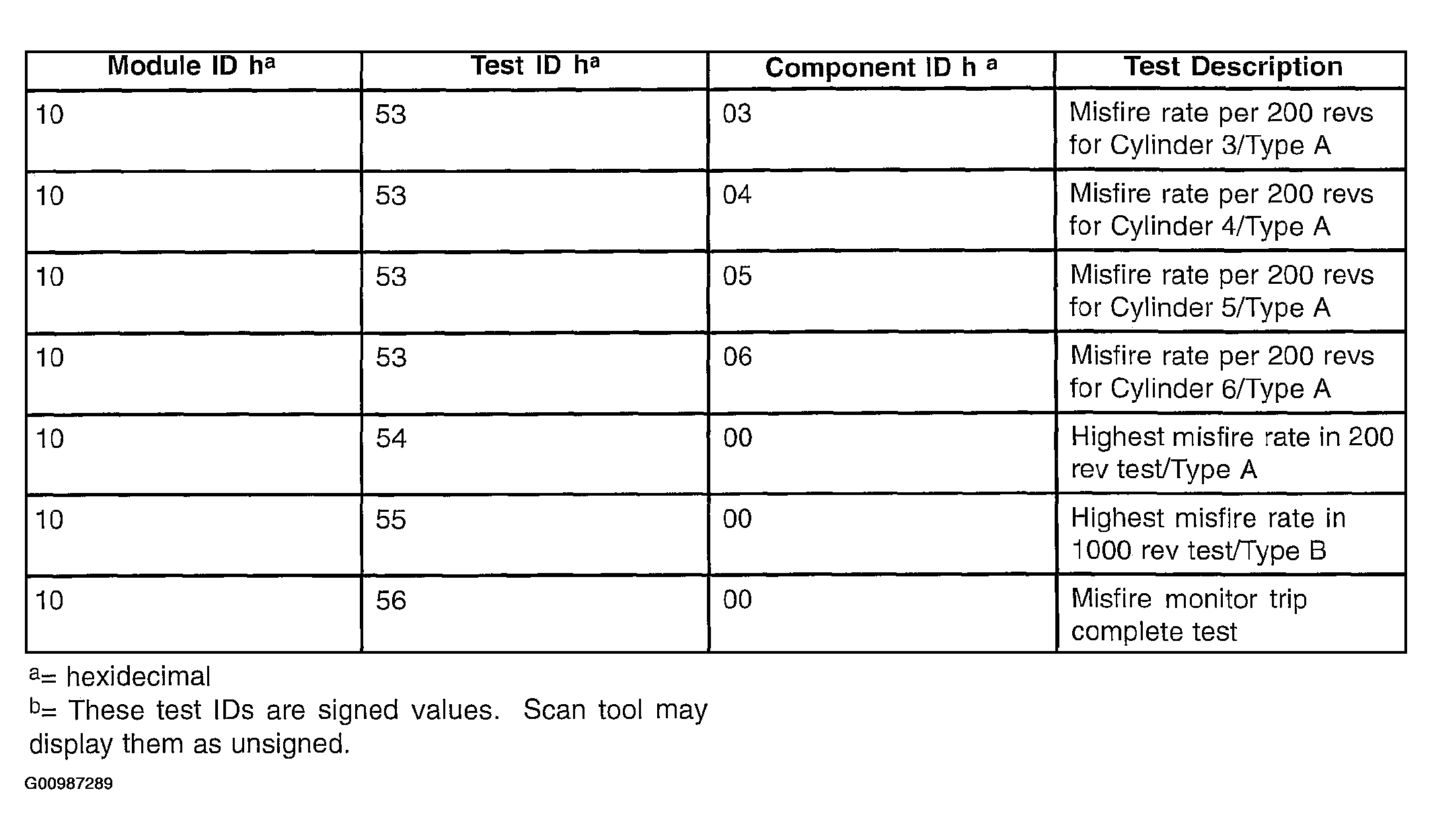

Fig 4: Diagnostic Monitoring Test Results Table (4 Of 4)

Courtesy of FORD MOTOR CO.

The conversion is done as follows: If the value is>32767 then complement (change 0's to 1's and 1's to 0's), add 1 and a negative sign.
