DTC P1130, P1150, P1173: Fuel System Not Switching At Fuel Trim (Rich Or Lean)
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

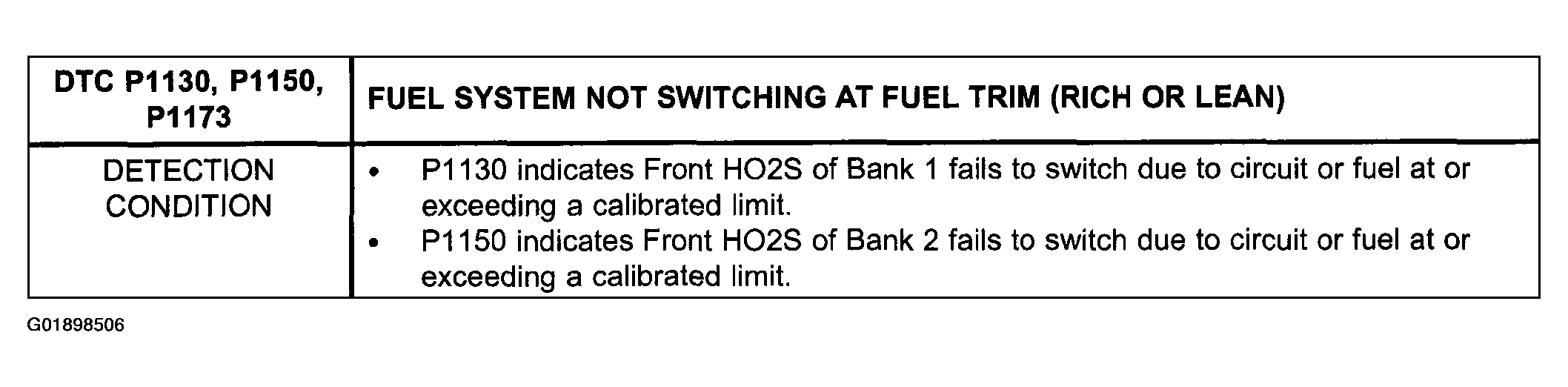

Fig 1: Fuel System Not Switching At Fuel Trim (Rich Or Lean) Troubleshooting Procedure (1 Of 4)
Courtesy of FORD MOTOR CO.

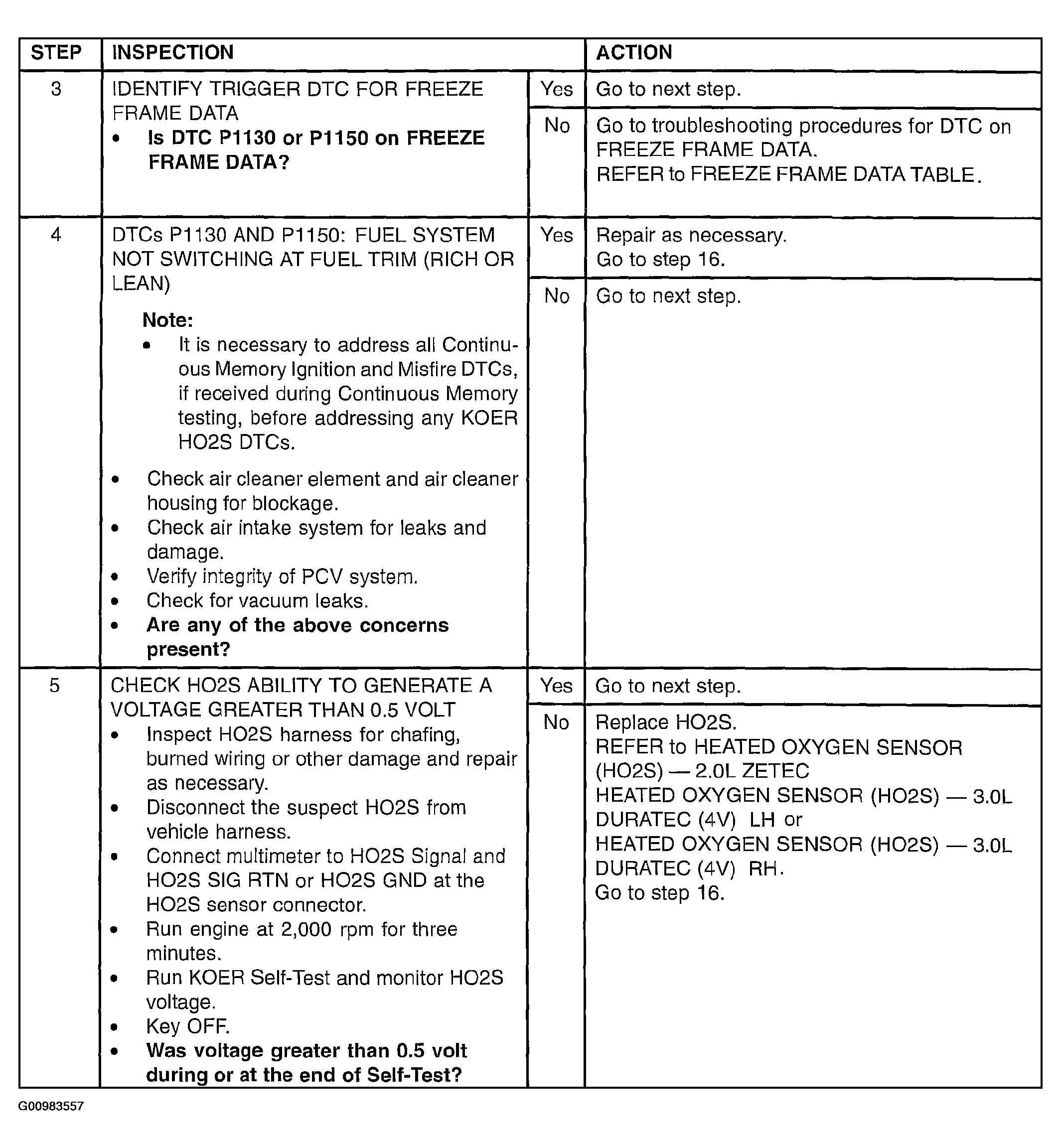

Fig 2: Fuel System Not Switching At Fuel Trim (Rich Or Lean) Troubleshooting Procedure (2 Of 4)
Courtesy of FORD MOTOR CO.

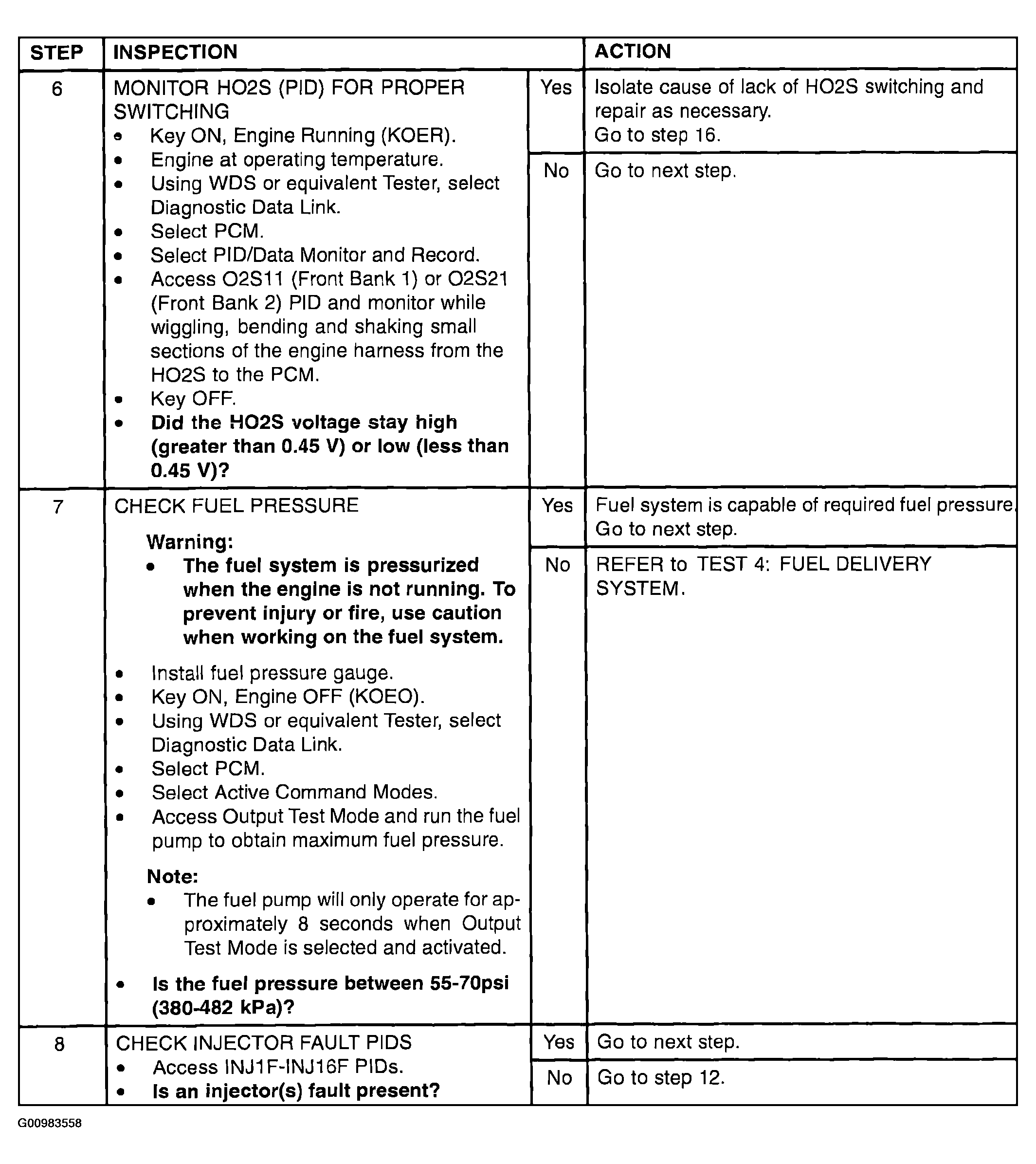

Fig 3: Fuel System Not Switching At Fuel Trim (Rich Or Lean) Troubleshooting Procedure (3 Of 4)
Courtesy of FORD MOTOR CO.

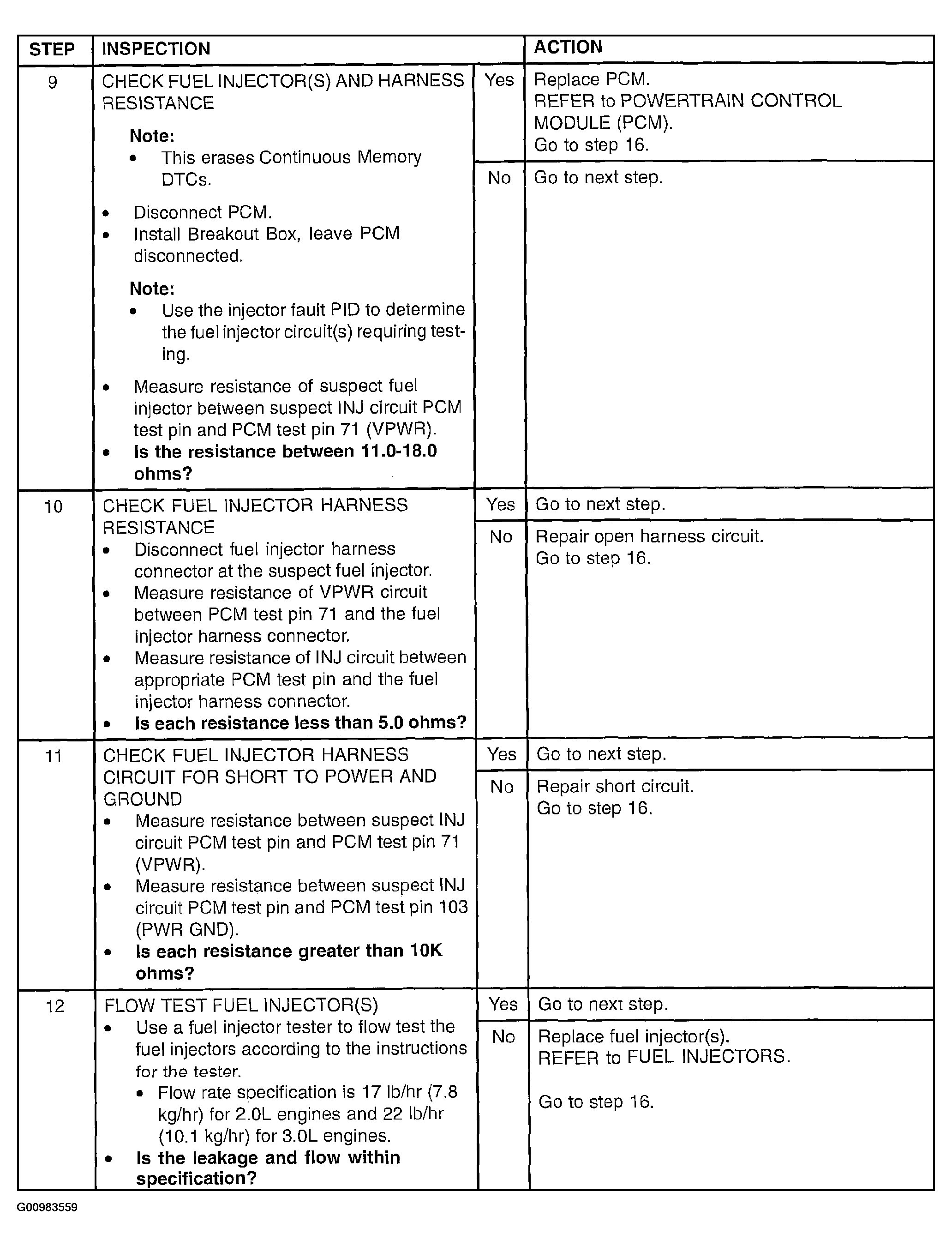

Fig 4: Fuel System Not Switching At Fuel Trim (Rich Or Lean) Troubleshooting Procedure (4 Of 4)
Courtesy of FORD MOTOR CO.

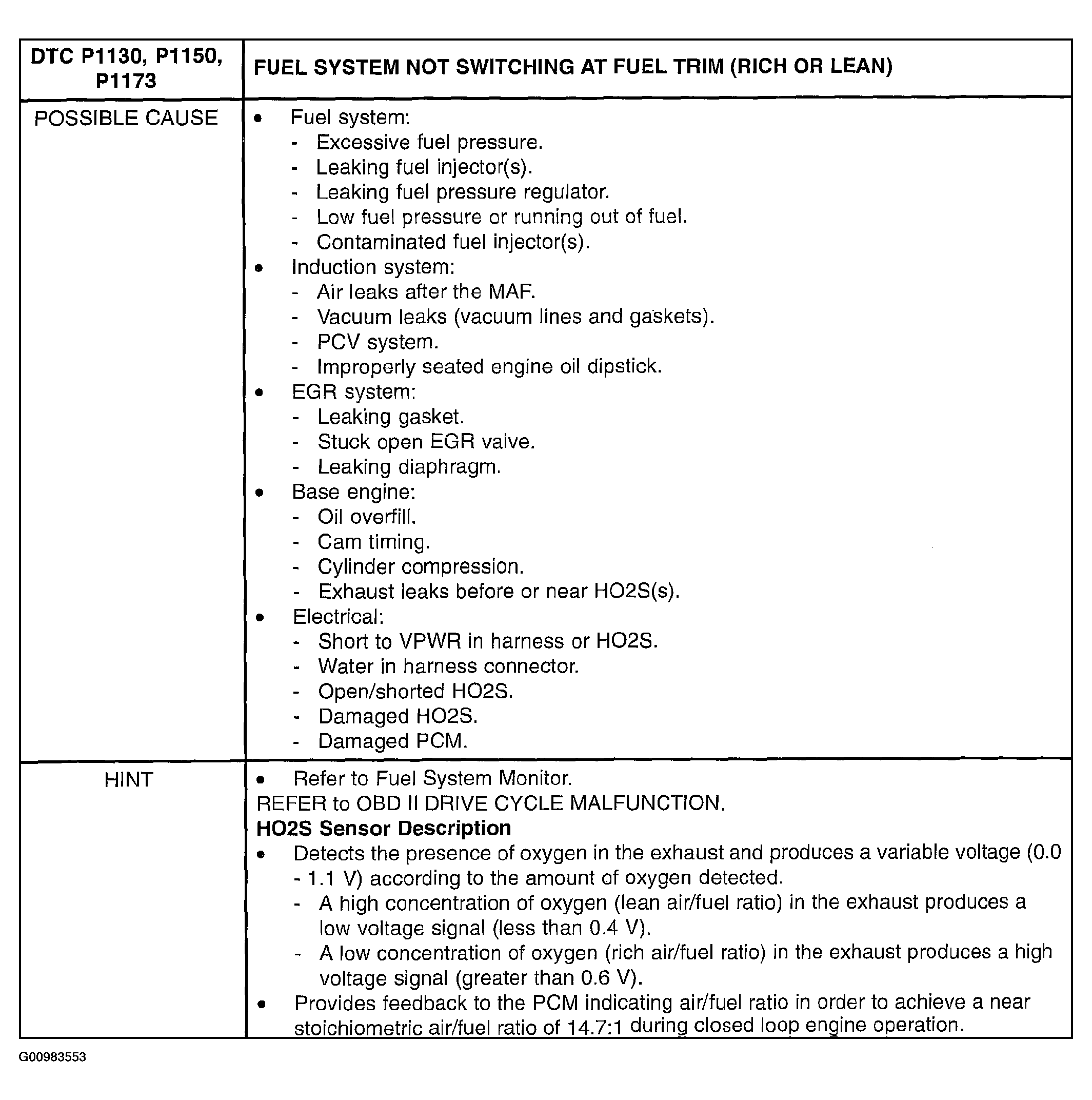

Fig 5: Fuel System Not Switching At Fuel Trim (Rich Or Lean) Inspection Procedure (1 Of 5)
Courtesy of FORD MOTOR CO.

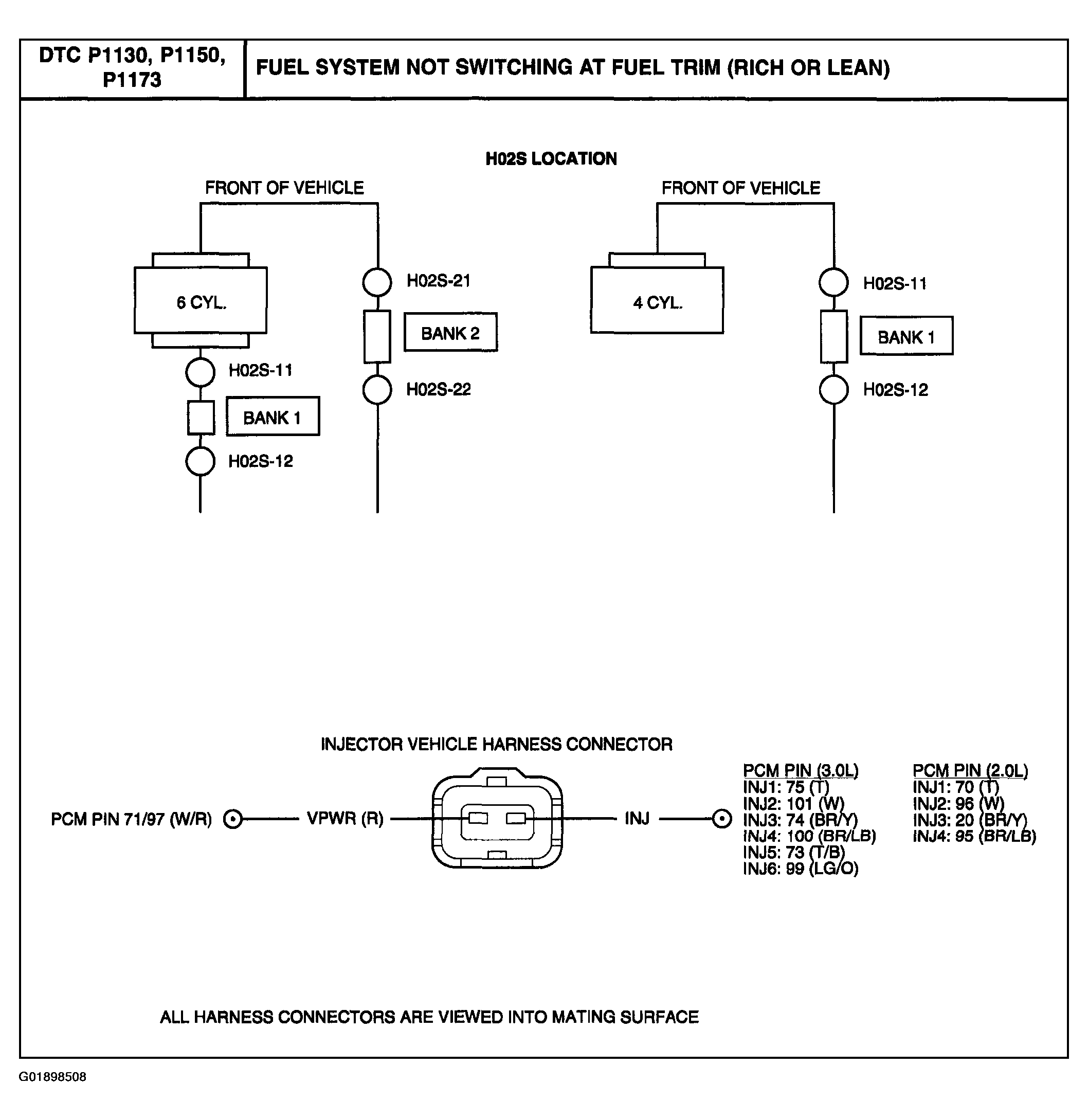

Fig 6: Fuel System Not Switching At Fuel Trim (Rich Or Lean) Inspection Procedure (2 Of 5)
Courtesy of FORD MOTOR CO.

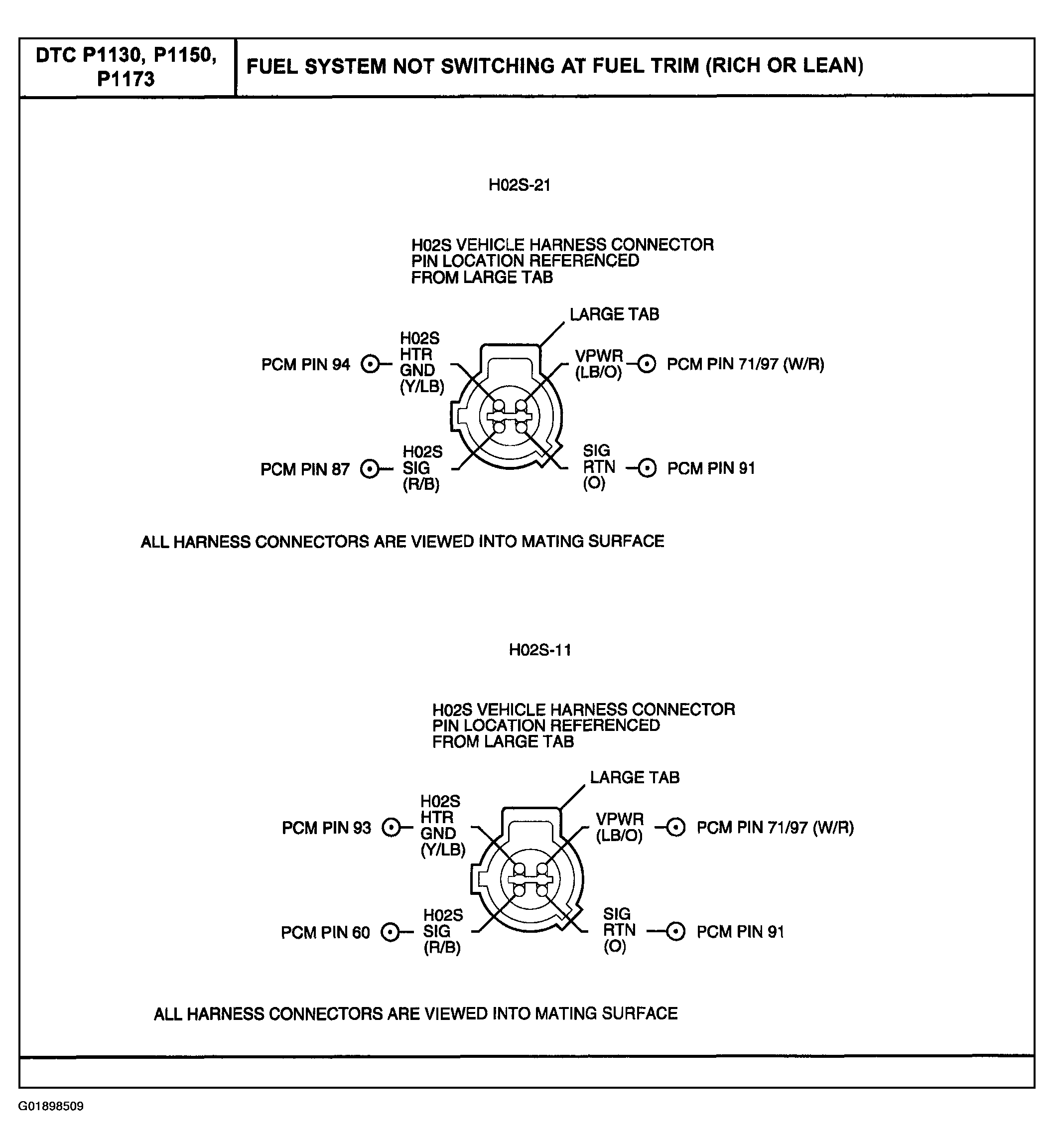

Fig 7: Fuel System Not Switching At Fuel Trim (Rich Or Lean) Inspection Procedure (3 Of 5)
Courtesy of FORD MOTOR CO.

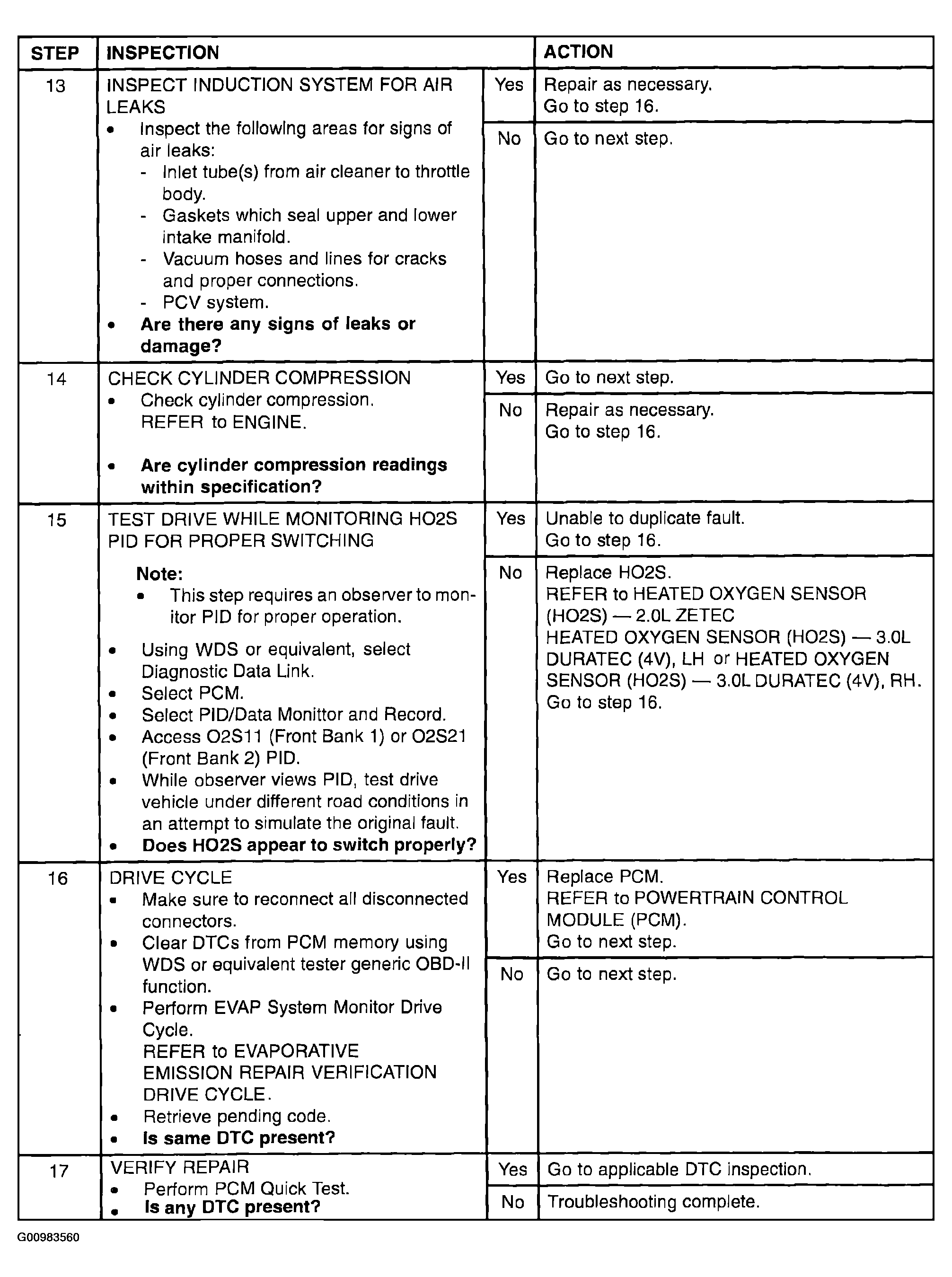

Fig 8: Fuel System Not Switching At Fuel Trim (Rich Or Lean) Inspection Procedure (4 Of 5)
Courtesy of FORD MOTOR CO.
Fig 9: Fuel System Not Switching At Fuel Trim (Rich Or Lean) Inspection Procedure (5 Of 5)
