2.0L ZETEC Fan Diagnosis Chart: Notes

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

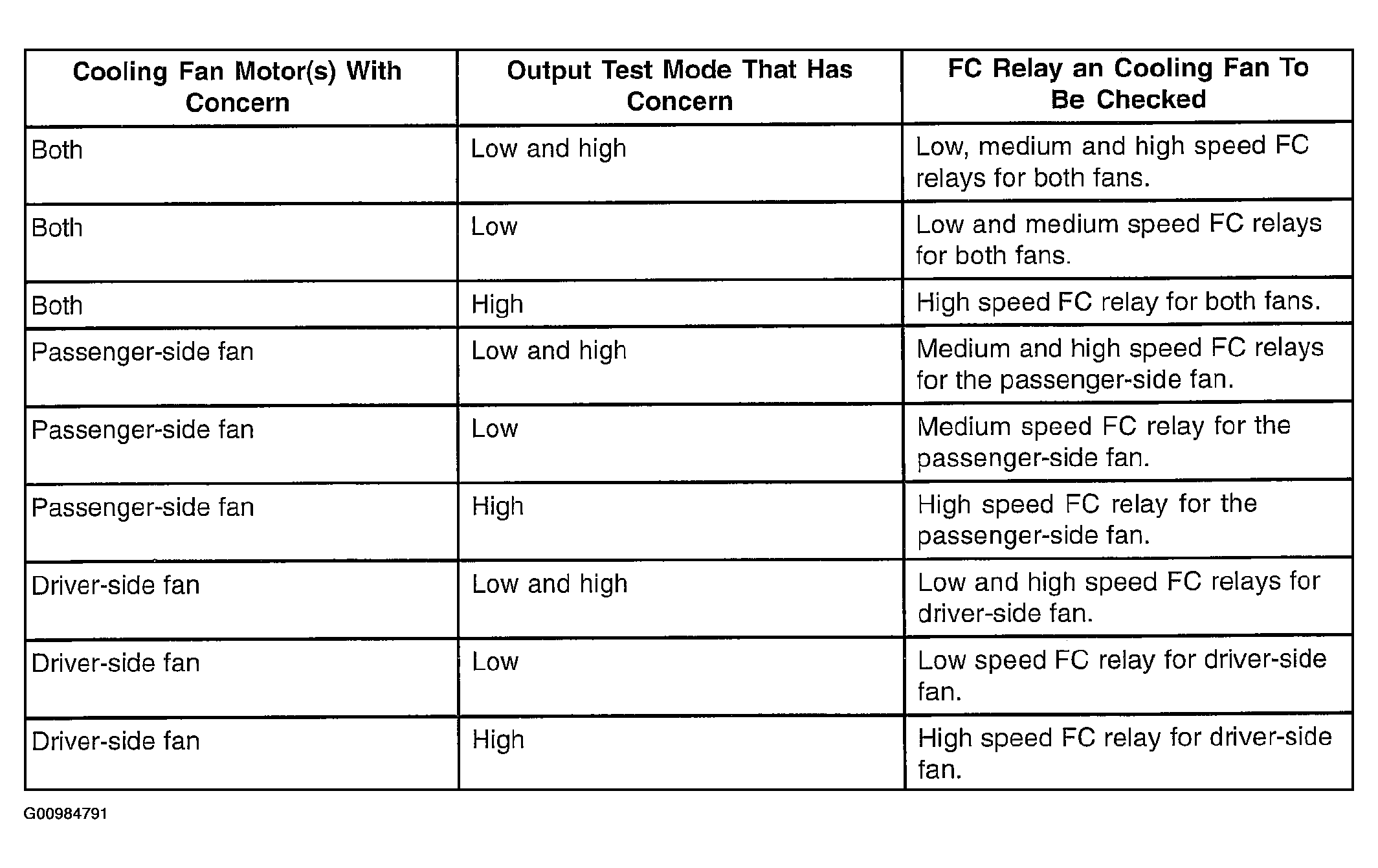

Fig 1: 2.0L Zetec Fan Diagnosis Chart
G00984791Courtesy of FORD MOTOR CO.
