Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. .
  2. Remove the front bumper cover. For additional information, refer to FRONT BUMPER COVER .
    NOTE:
    • RH side shown, LH side similar.

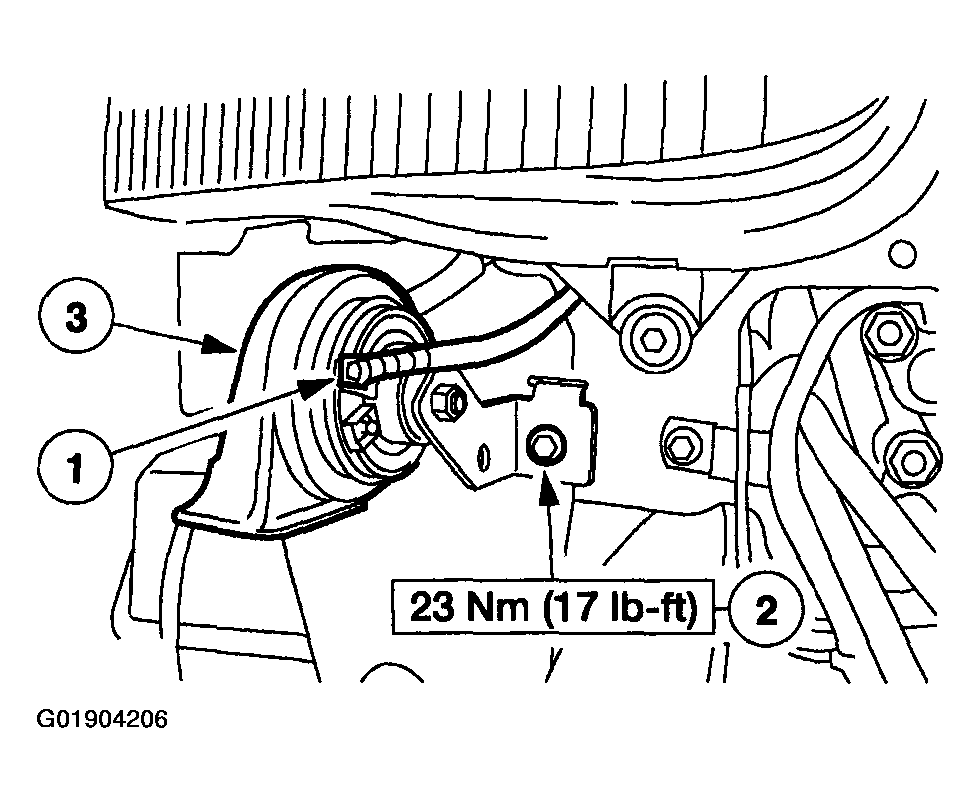

    Fig 1: Removing Horn
    G01904206Courtesy of MAZDA MOTORS CORP.
  3. Remove the horn.
    1. Disconnect the electrical connector.
    2. Remove the nut.
    3. Remove the horn.
  4. To install, reverse the removal procedure.
