Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the audio unit. For additional information, refer to AUDIO UNIT .
Remove the right lower A-pillar trim.

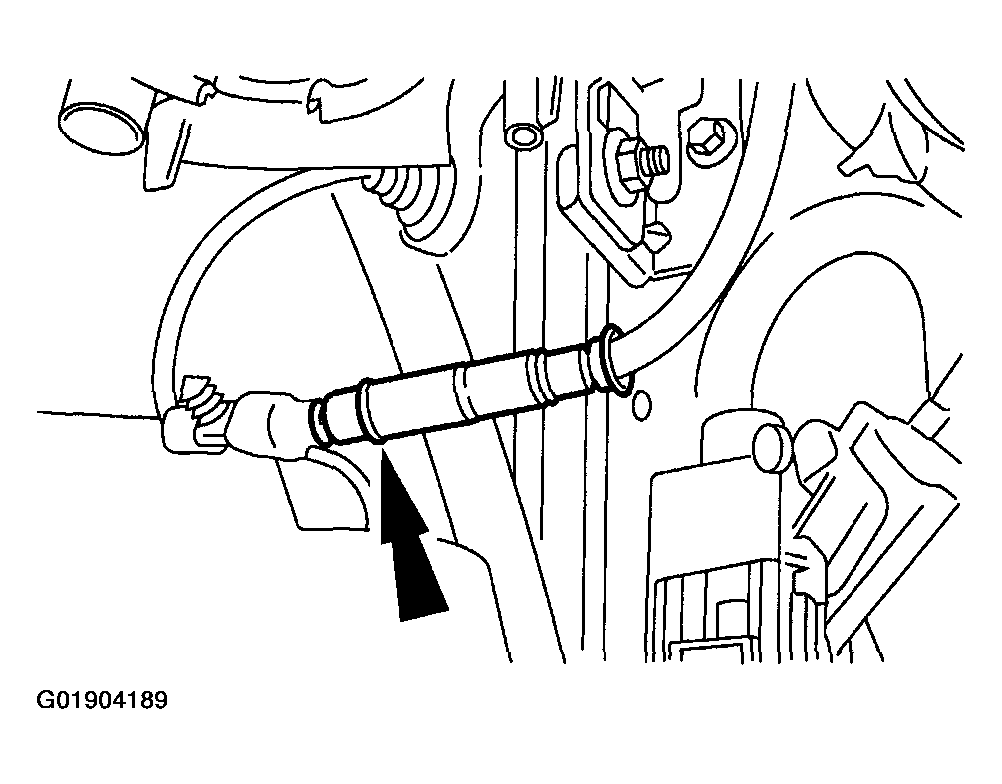

Fig 1: Disconnecting Antenna Cable Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the antenna cable connector.

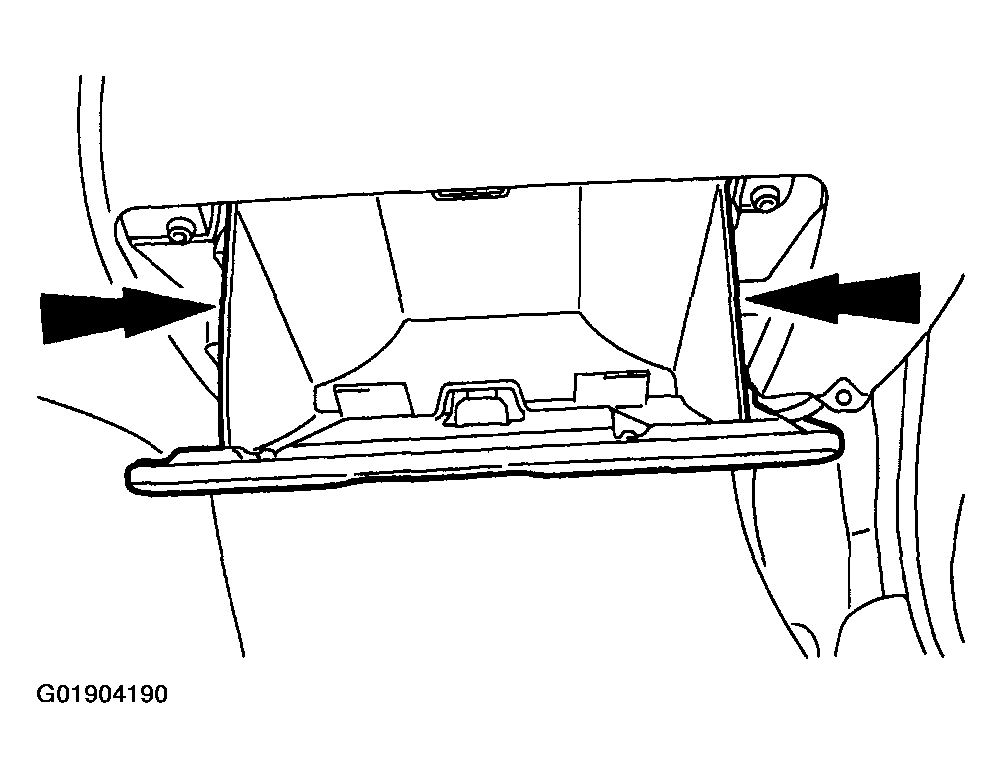

Fig 2: Lowering Glove Box Door
Courtesy of MAZDA MOTORS CORP.
Lower the glove box door.

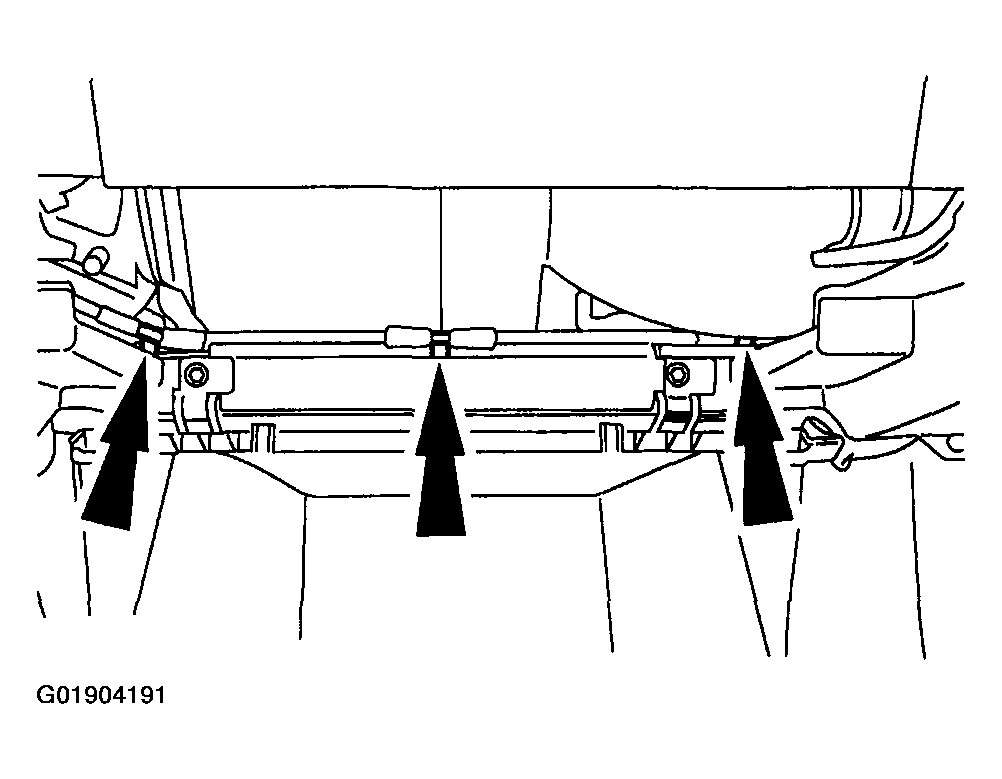

Fig 3: Removing Pin-Type Retainers Holding Lead-In Cable
Courtesy of MAZDA MOTORS CORP.
Remove the three pin-type retainers holding the lead-in cable.

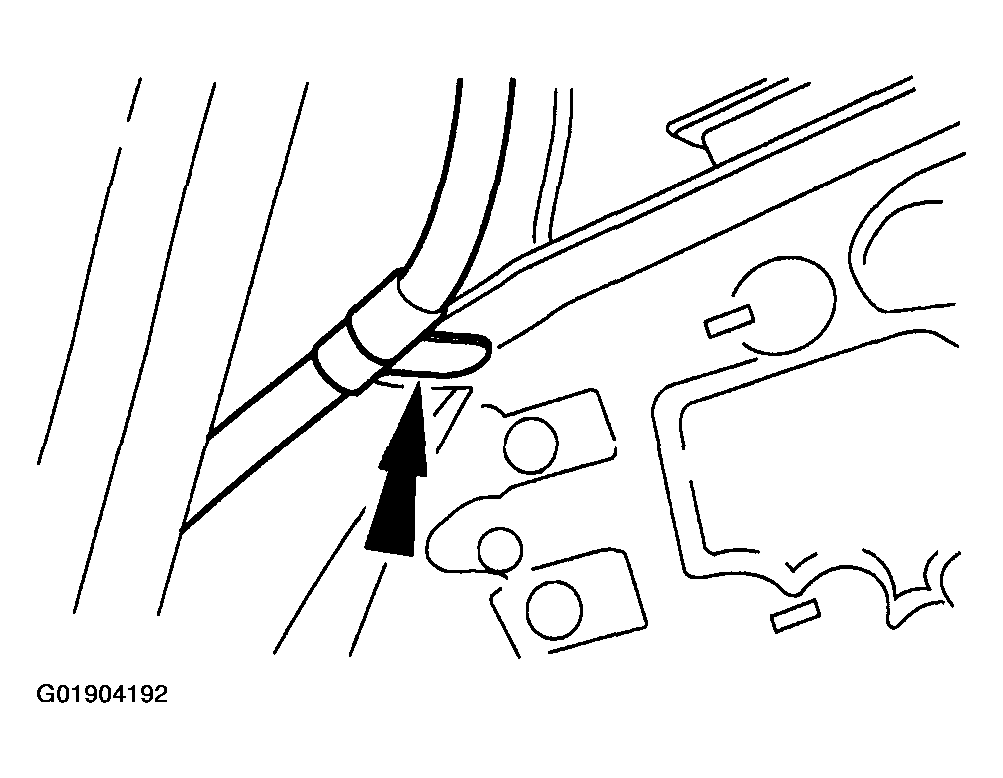

Fig 4: Removing Antenna Cable Clip
Courtesy of MAZDA MOTORS CORP.
Remove the antenna cable clip fastened to the center instrument panel support.
Remove the cable through the glove box opening.
To install, reverse the removal procedure.
