Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

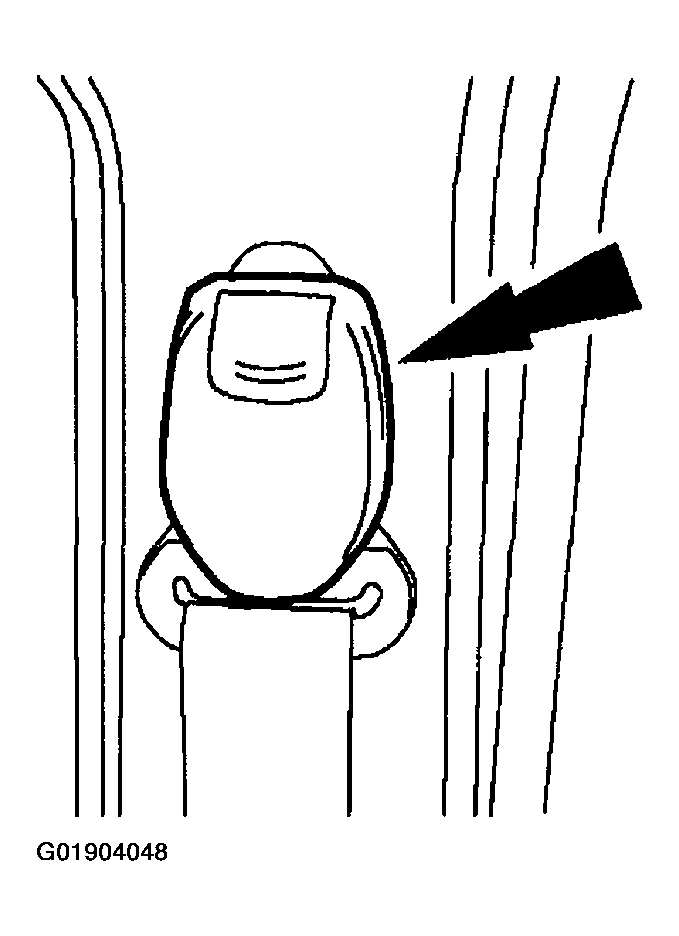

Fig 1: Removing Safety Belt D-Ring Cover

Courtesy of MAZDA MOTORS CORP.

NOTE:

Inspect the safety belt D-ring cover for damage. If the safety belt D-ring cover does not remain in place, install a new cover.

Remove the safety belt D-ring cover.

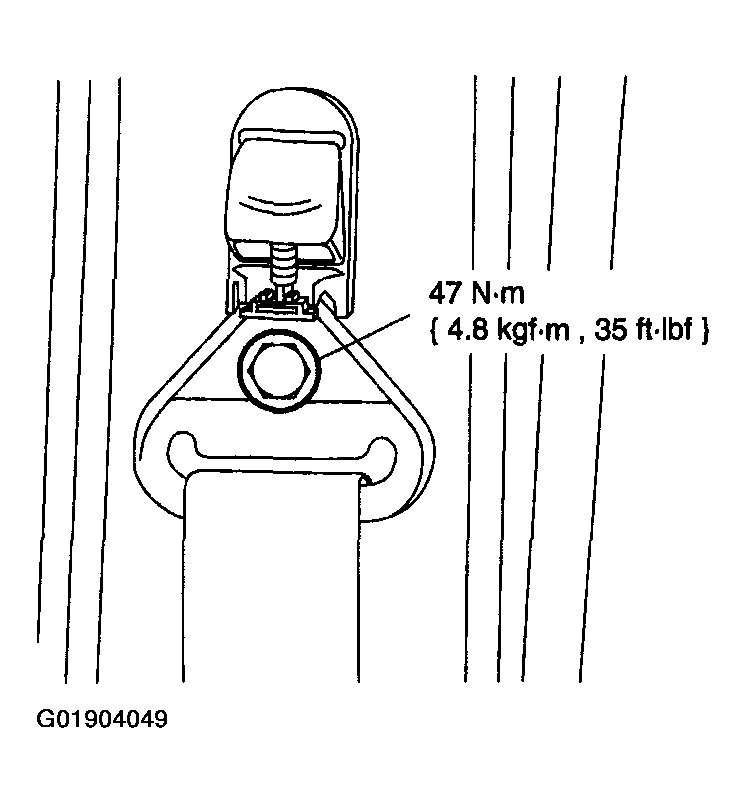

Fig 2: Removing Safety Belt D-Ring Bolt
Courtesy of MAZDA MOTORS CORP.
Remove the safety belt D-ring bolt.
Position the front and rear door weatherstrips aside.

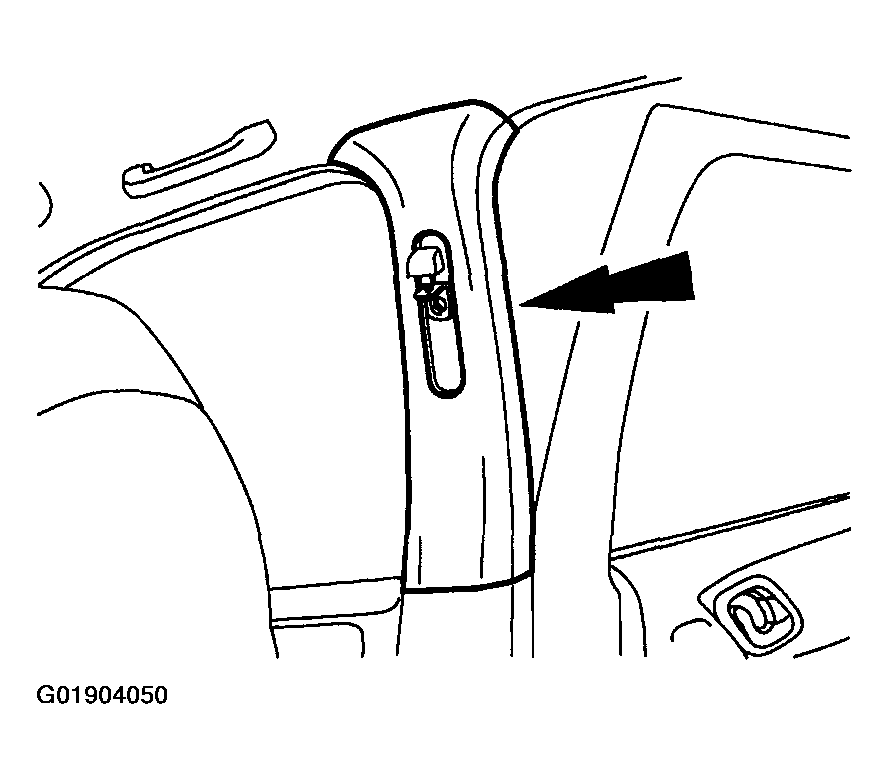

Fig 3: Removing Upper B-Pillar Trim Panel
Courtesy of MAZDA MOTORS CORP.
Remove the upper B-pillar trim panel.

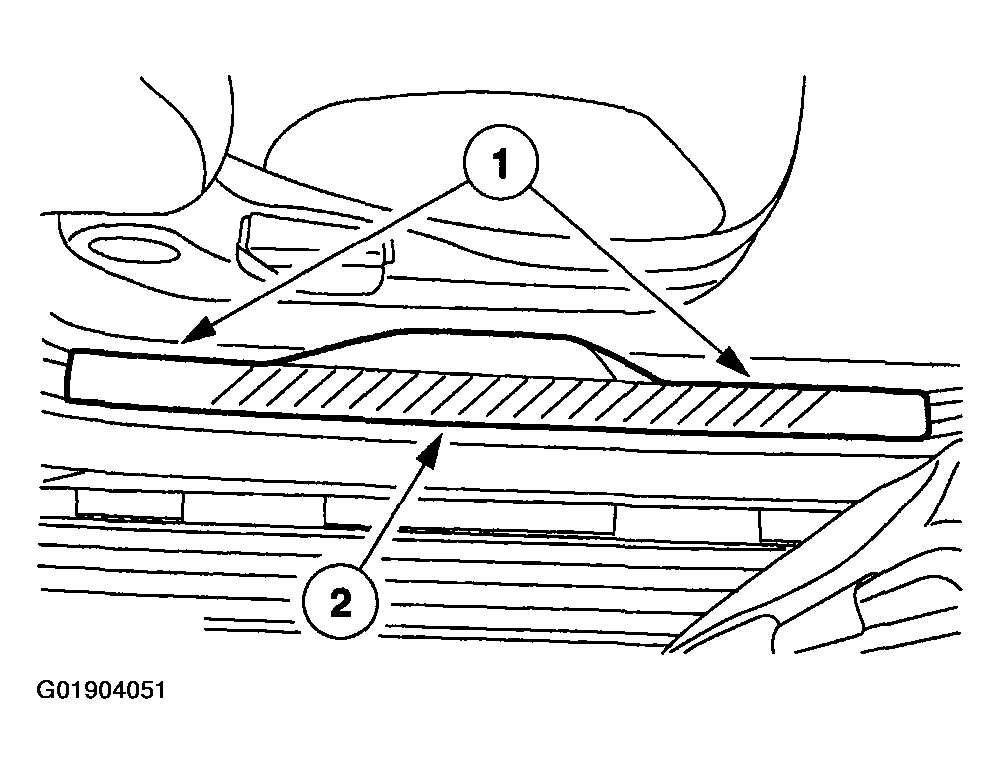

Fig 4: Removing Front Door Scuff Plate Trim Panel
Courtesy of MAZDA MOTORS CORP.
Remove the front door scuff plate trim panel.
1. Remove the pin-type retainers.
2. Remove the front door scuff plate trim panel.

  Fig 5: Removing Rear Door Scuff Plate Trim Panel
  Courtesy of MAZDA MOTORS CORP.
Remove the rear door scuff plate trim panel.
1. Remove the pin-type retainers.
2. Remove the rear door scuff plate trim panel.

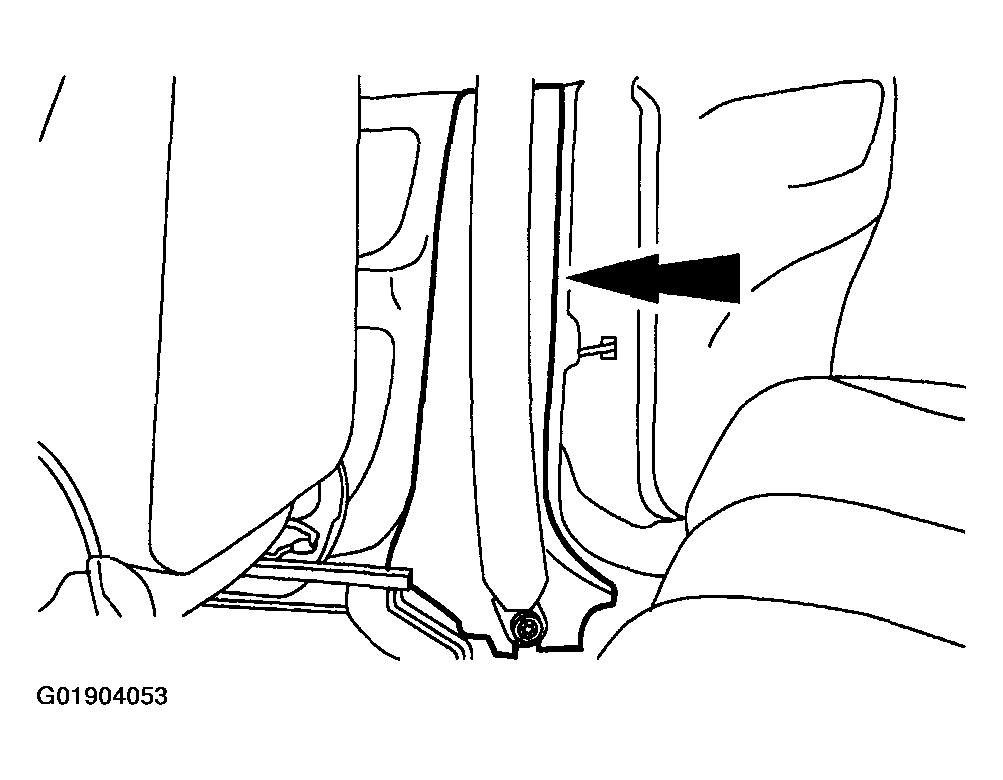

  Fig 6: Removing Lower B-Pillar Trim Panel
  Courtesy of MAZDA MOTORS CORP.
Remove the lower B-pillar trim panel.
To install, reverse the removal procedure.
