Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear door trim panel. For additional information, refer to REAR DOOR TRIM PANEL .
Position the watershield aside.

Fig 1: Removing Rear Door Moulding Screws
Courtesy of MAZDA MOTORS CORP.
Remove the rear door molding screws.

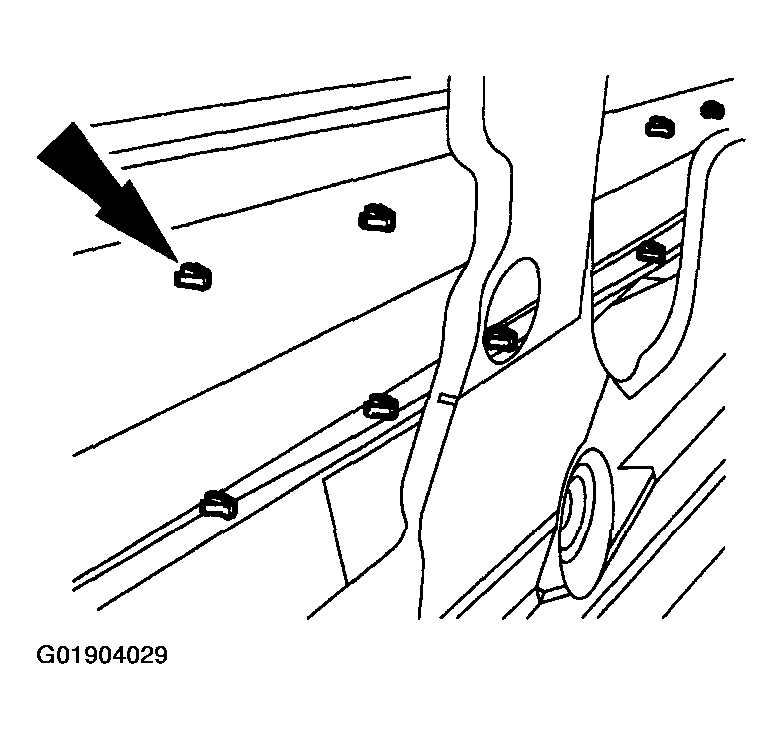

Fig 2: Collapsing Door Moulding Retaining Clips
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- The rear door molding retainer clips must be collapsed from inside the door, failure to do so may result in damage to the vehicle.
NOTE:
- The rear door molding retainer clips are one-time use only. New clips must be used during installation.
Collapse the door molding retaining clips.

Fig 3: Removing Rear Door Moulding
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Use a wedge type tool to add tension to assist in removal of door molding.
Remove the rear door molding.
NOTE:
- New door molding will snap into position when installed.
To install, reverse the removal procedure.
