Disassembly and Assembly

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

60% split bench seat shown, 40% and bench seat similar.

Fig 1: Disassembling And Assembling Rear Seat Cushion

Courtesy of MAZDA MOTORS CORP.

Lift up the rear seat cushion.

Fig 2: Removing Rear Seat Cushion
Courtesy of MAZDA MOTORS CORP.
Remove the rear seat cushion.
- Pull up on release lever and slide the seat out of the floor bracket.

  Fig 3: Releasing J-Retainer
  Courtesy of MAZDA MOTORS CORP.
Release the J-retainer.

Fig 4: Unzipping Rear Seat Cushion Trim
Courtesy of MAZDA MOTORS CORP.
Unzip the rear seat cushion trim.

Fig 5: Removing Rear Seat Cushion Trim From Rear Seat Cushion Pad
Courtesy of MAZDA MOTORS CORP.
Remove the rear seat cushion trim from the rear seat cushion pad.

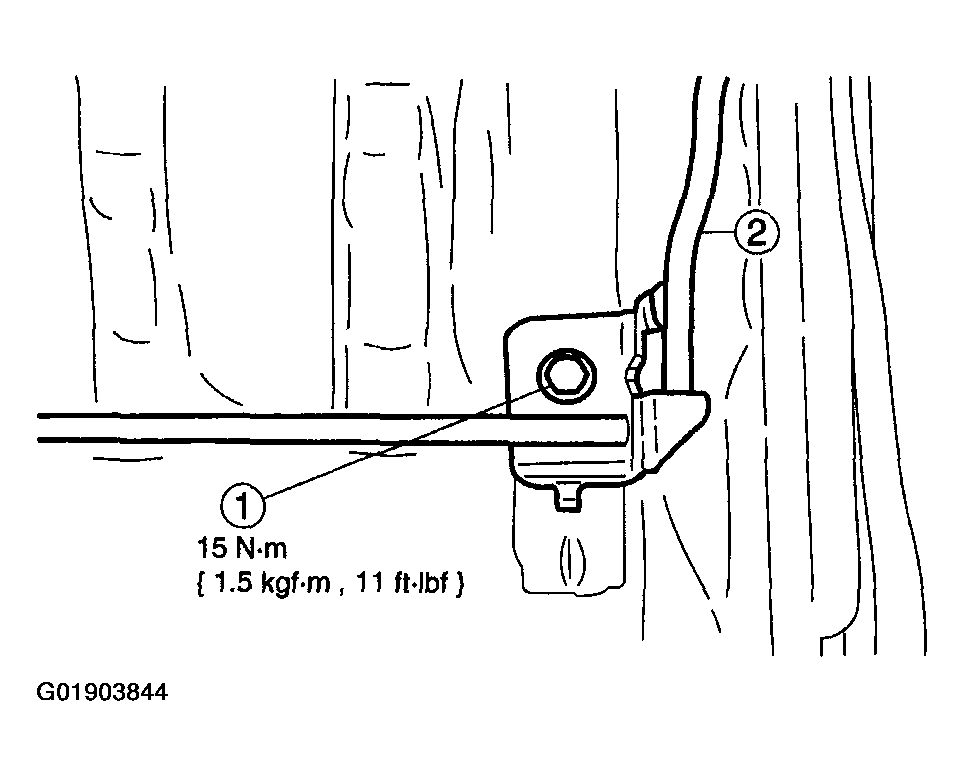

Fig 6: Removing Rear Seat Cushion Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the rear seat cushion bracket.
1. Remove the two bolts.
2. Remove the rear seat cushion bracket.
To assemble, reverse the disassembly procedure.
