Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

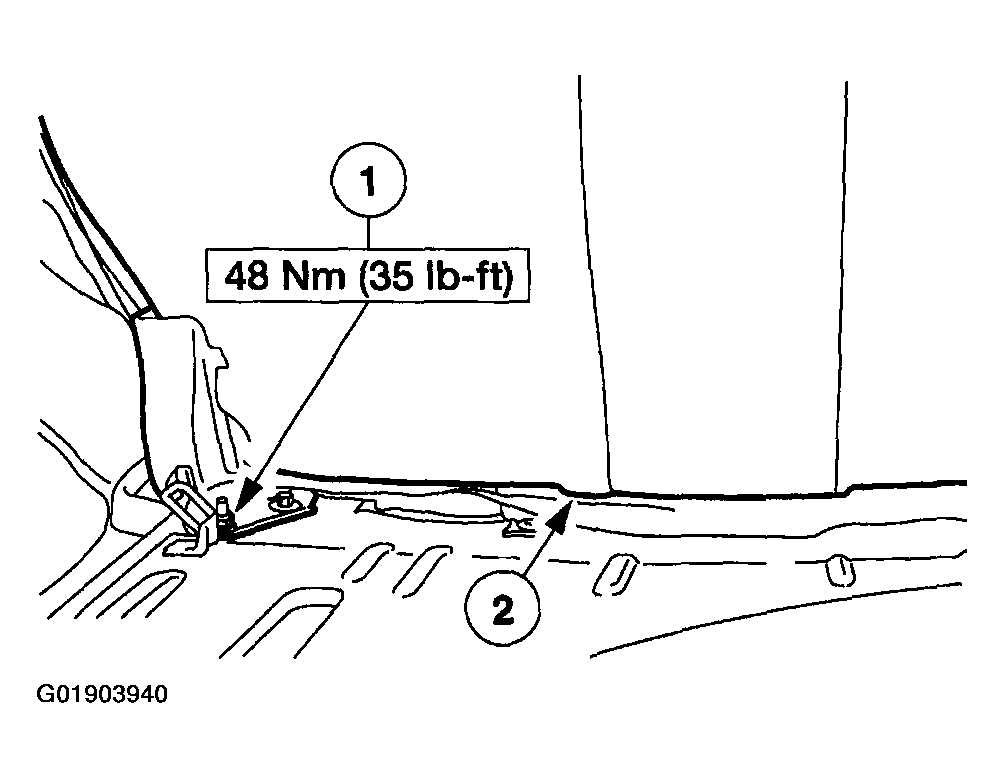

Fig 1: Removing Rear Seat Backrest
G01903940Courtesy of MAZDA MOTORS CORP.
  1. Remove the rear seat backrest.
    1. Remove the two nuts and two bolts.
    2. Remove the rear seat backrest.
  2. To install, reverse the removal procedure.
