Pinpoint Test 23: The Four Wheel Drive (4WD) Indicator Is Inoperative

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

Fig 1: Pinpoint Test 23: Four Wheel Drive (4WD) Indicator Is Inoperative (Step 1)

Courtesy of MAZDA MOTORS CORP.

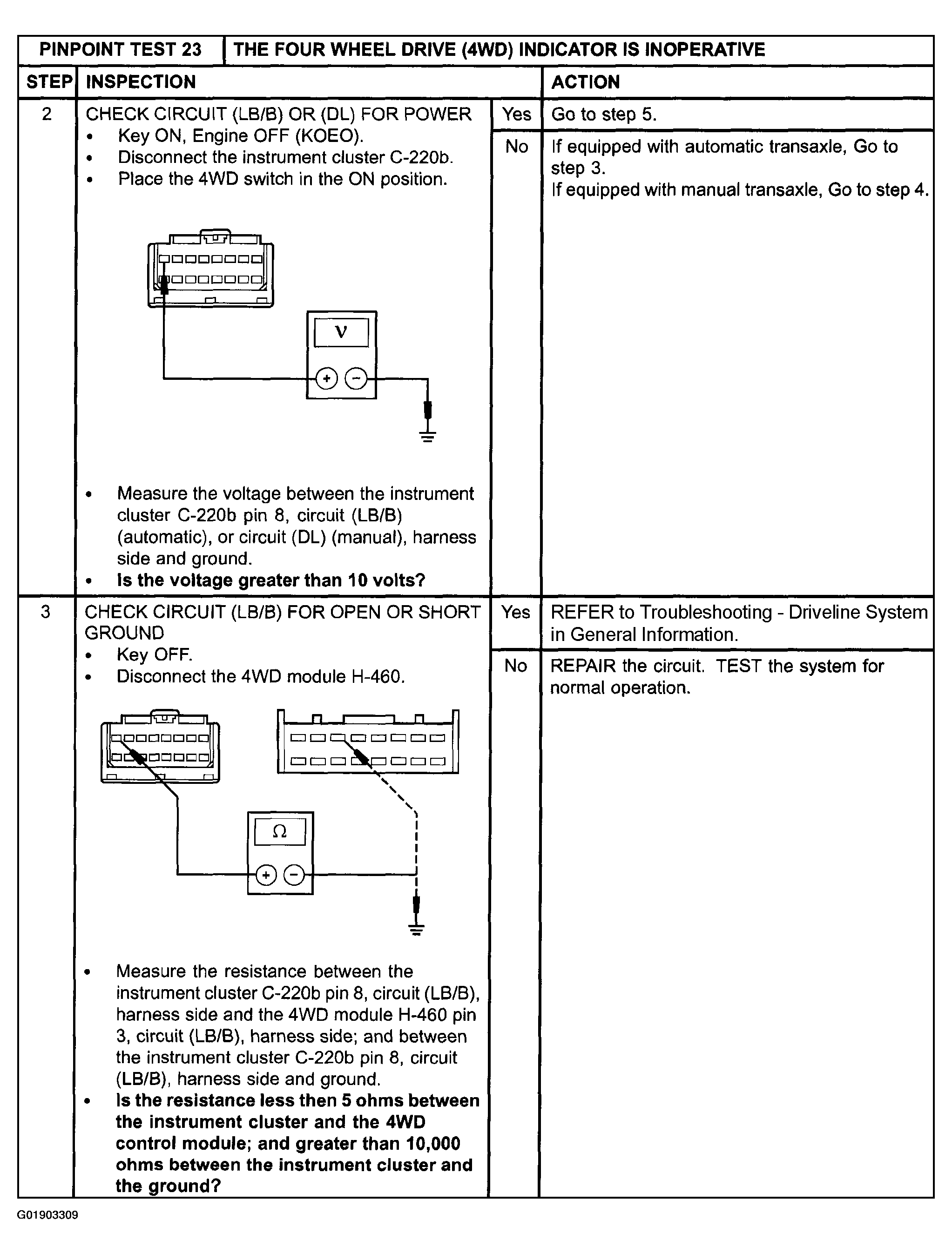

Fig 2: Pinpoint Test 23: Four Wheel Drive (4WD) Indicator Is Inoperative (Steps 2-3)

Courtesy of MAZDA MOTORS CORP.

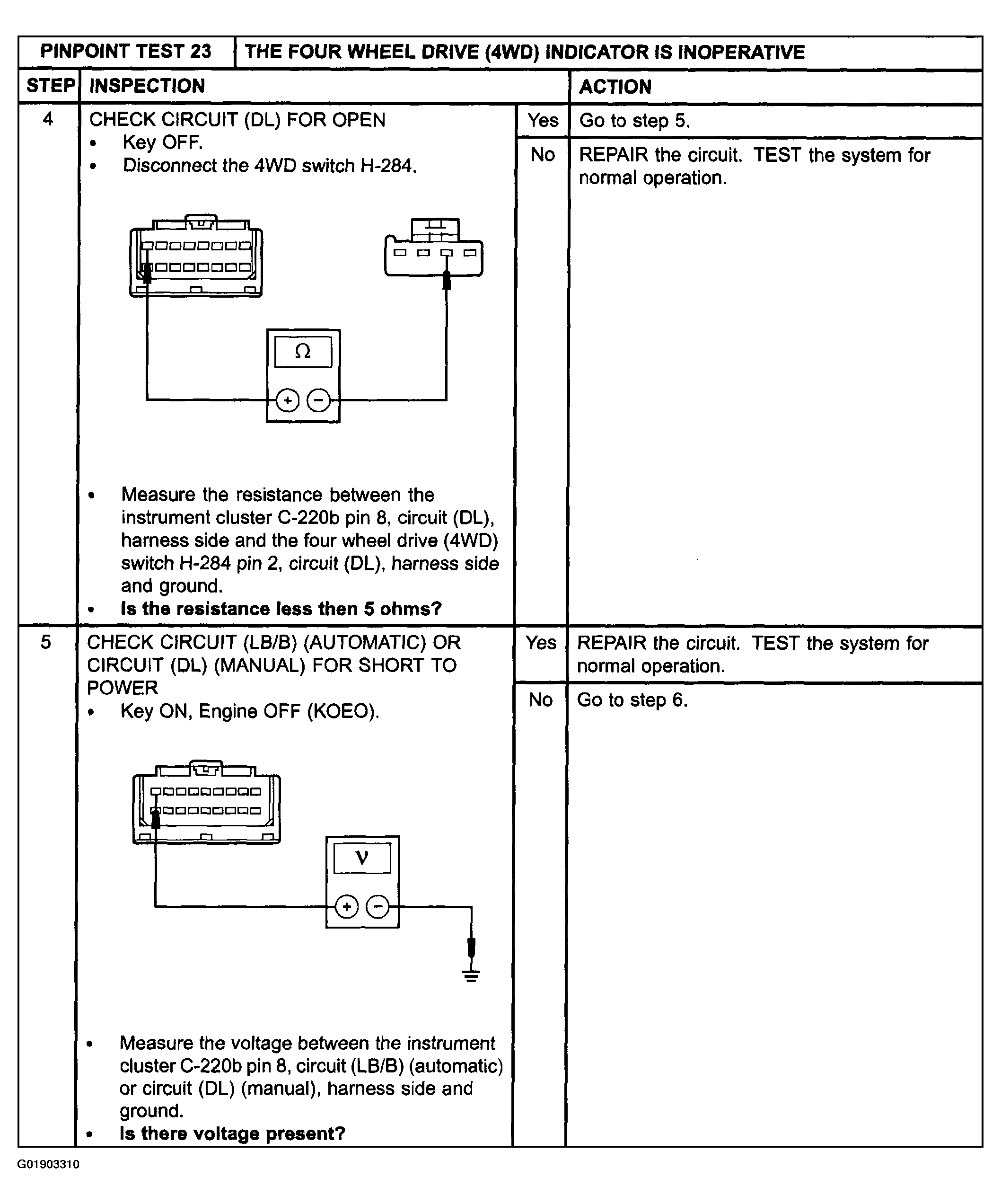

Fig 3: Pinpoint Test 23: Four Wheel Drive (4WD) Indicator Is Inoperative (Steps 4-5)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Pinpoint Test 23: Four Wheel Drive (4WD) Indicator Is Inoperative (Step 6)

Courtesy of MAZDA MOTORS CORP.
