Pinpoint Test 20: The Safety Belt Warning Indicator Is Inoperative (Chime Is Operative)

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

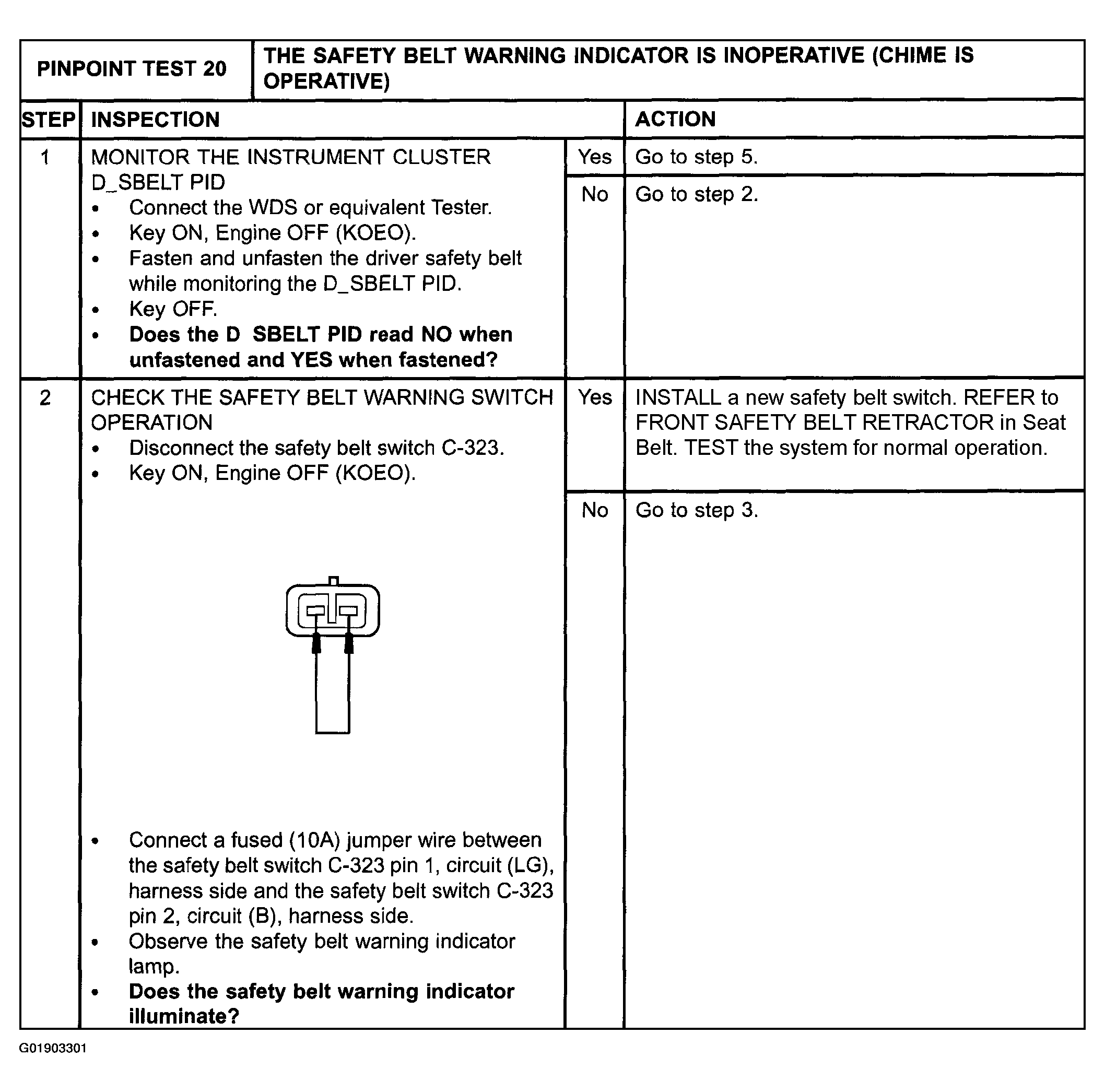

Fig 1: Pinpoint Test 20: Safety Belt Warning Indicator Is Inoperative (Chime Is Operative) (Step 1-2)

Courtesy of MAZDA MOTORS CORP.

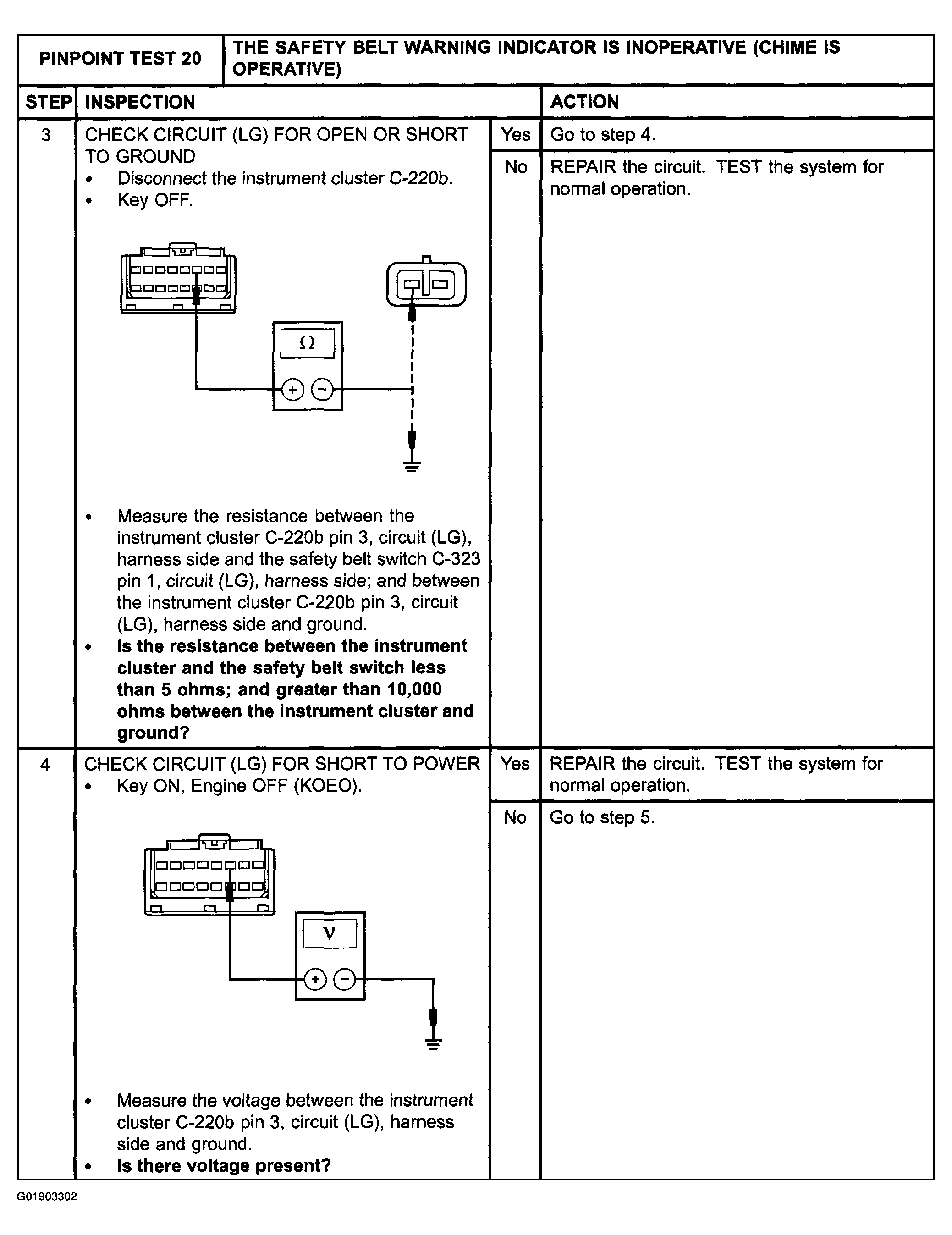

Fig 2: Pinpoint Test 20: Safety Belt Warning Indicator Is Inoperative (Chime Is Operative) (Steps 3-4)

Courtesy of MAZDA MOTORS CORP.

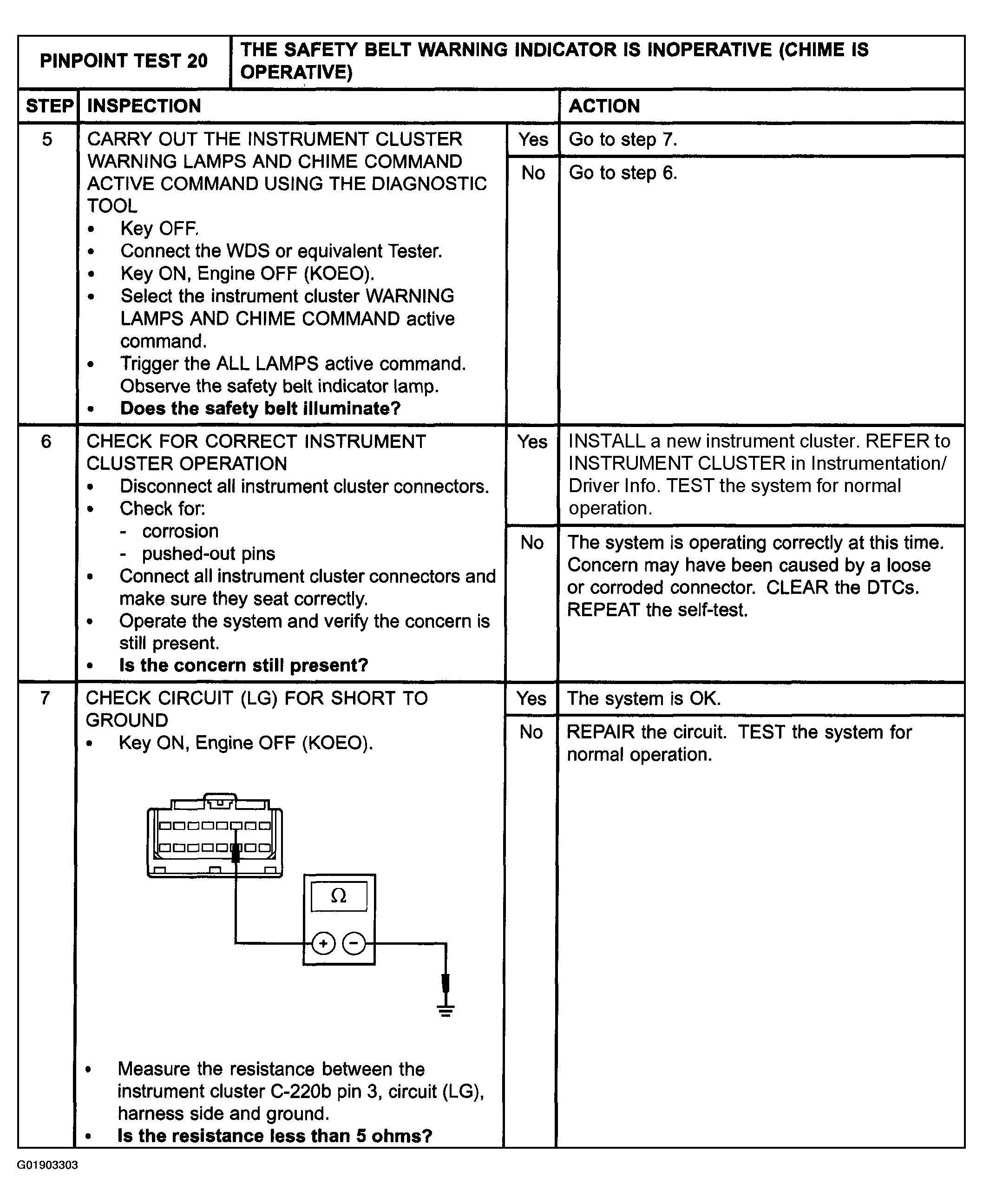

Fig 3: Pinpoint Test 20: Safety Belt Warning Indicator Is Inoperative (Chime Is Operative) (Steps 5-7)

Courtesy of MAZDA MOTORS CORP.
