Pinpoint Test 1: No Communication With The Instrument Cluster

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

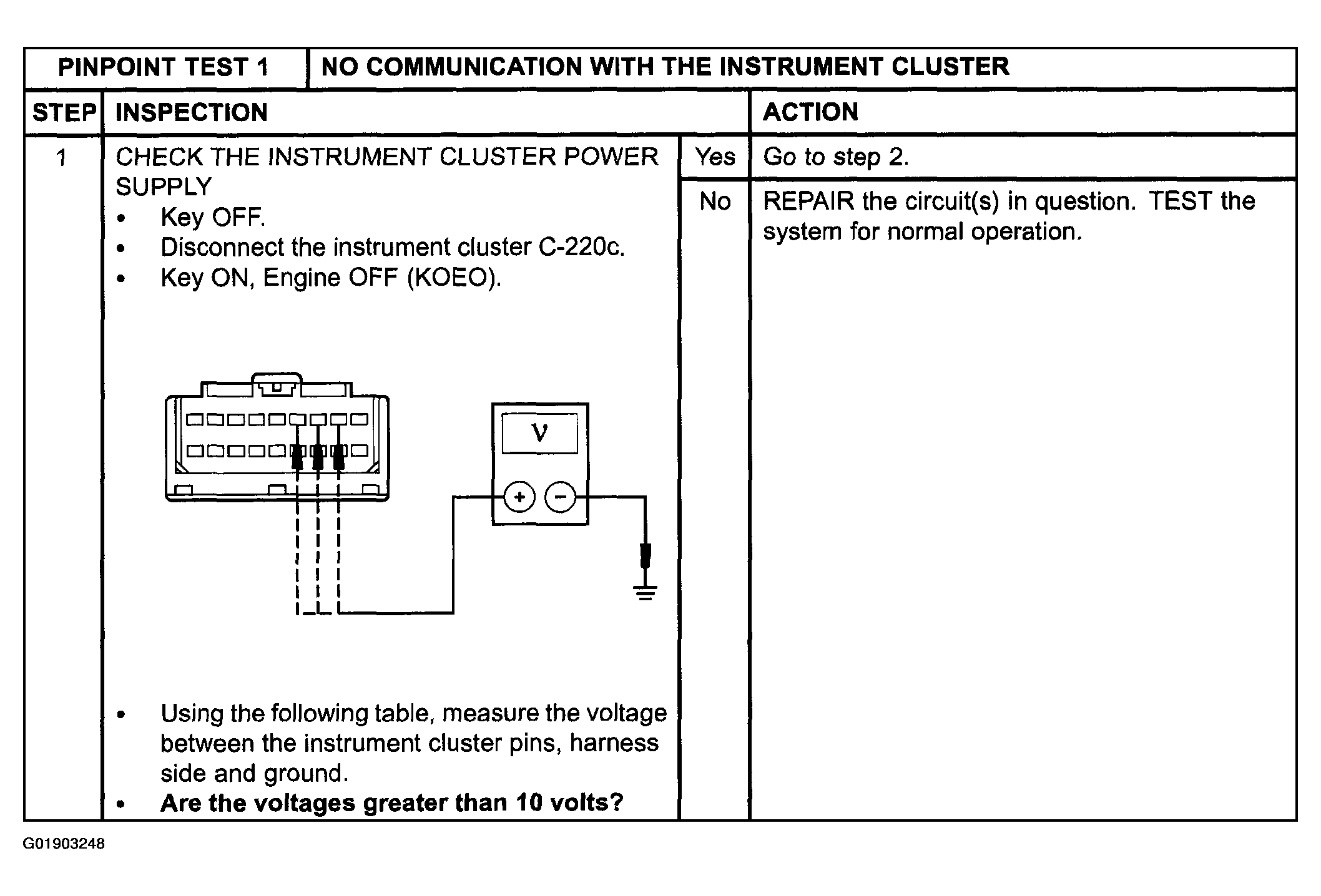

Fig 1: Pinpoint Test 1: No Communication With Instrument Cluster (Step 1)

Courtesy of MAZDA MOTORS CORP.

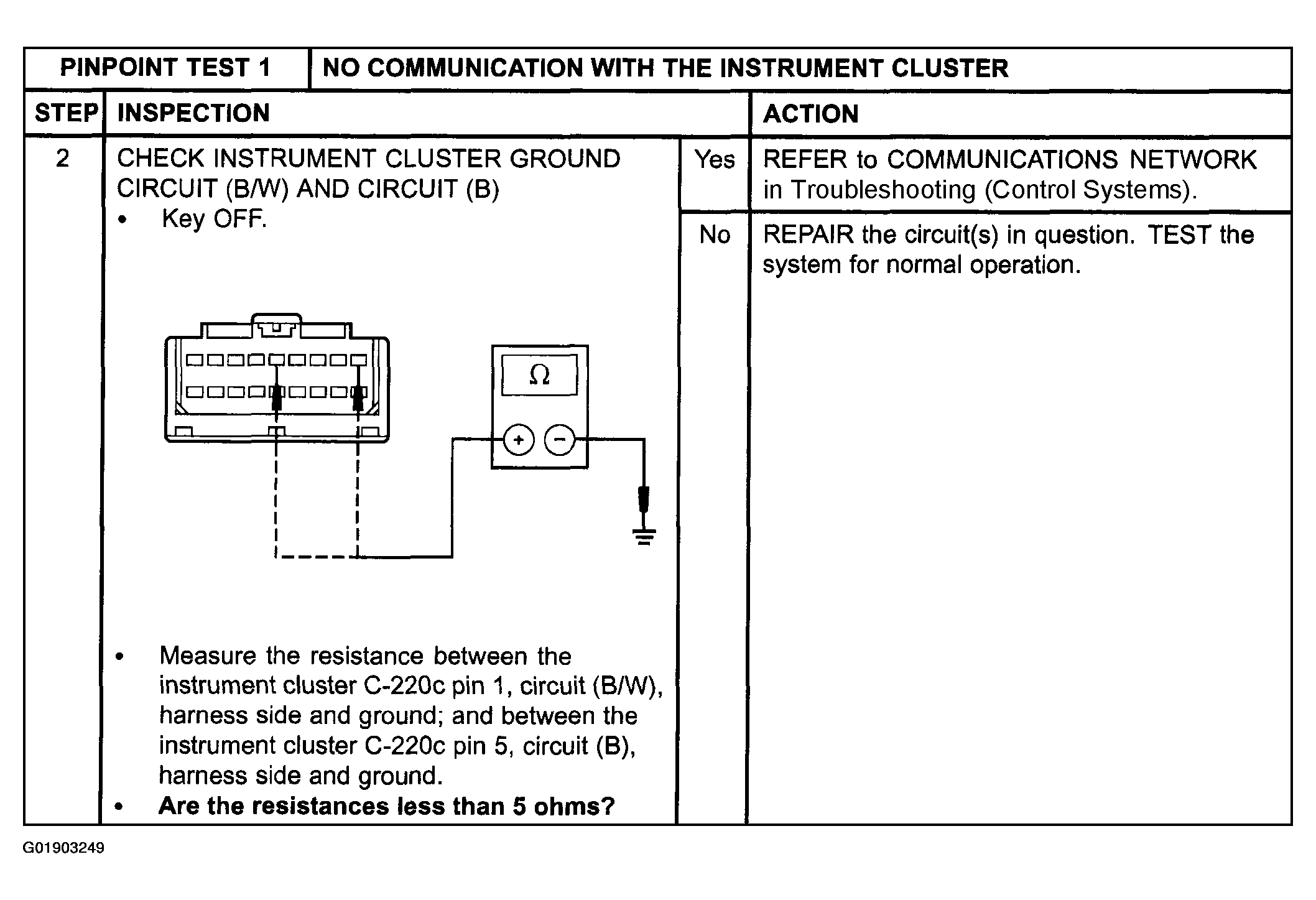

Fig 2: Pinpoint Test 1: No Communication With Instrument Cluster (Step 2)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Instrument Cluster - Connector Specification

Courtesy of MAZDA MOTORS CORP.
