Pinpoint Test 2: The Wipers Stay On Continuously

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

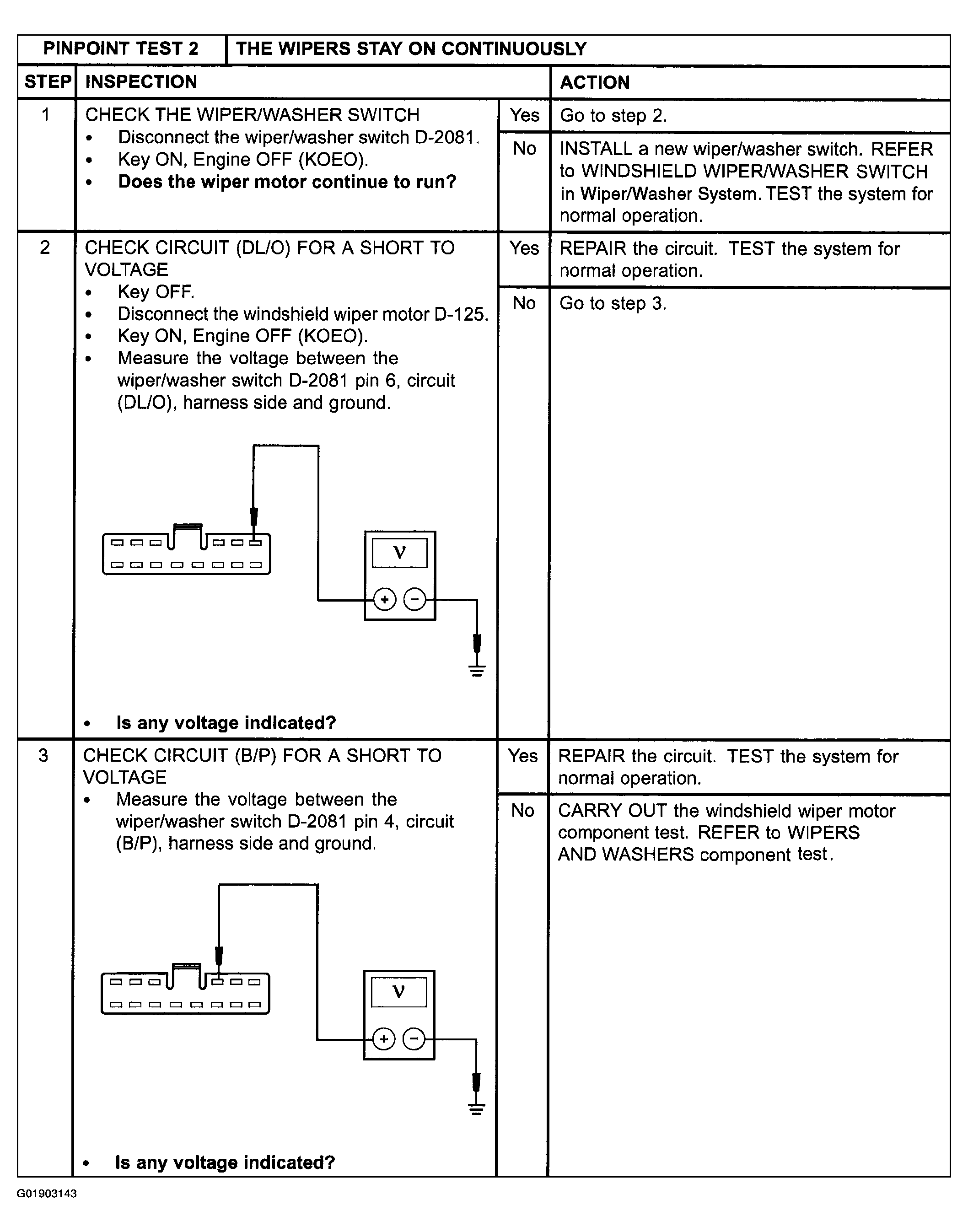

Fig 1: Pinpoint Test 2: Wipers Stay On Continuously
G01903143Courtesy of MAZDA MOTORS CORP.
