Pinpoint Test 4: The Hazard Flasher Lamps Are Always On

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

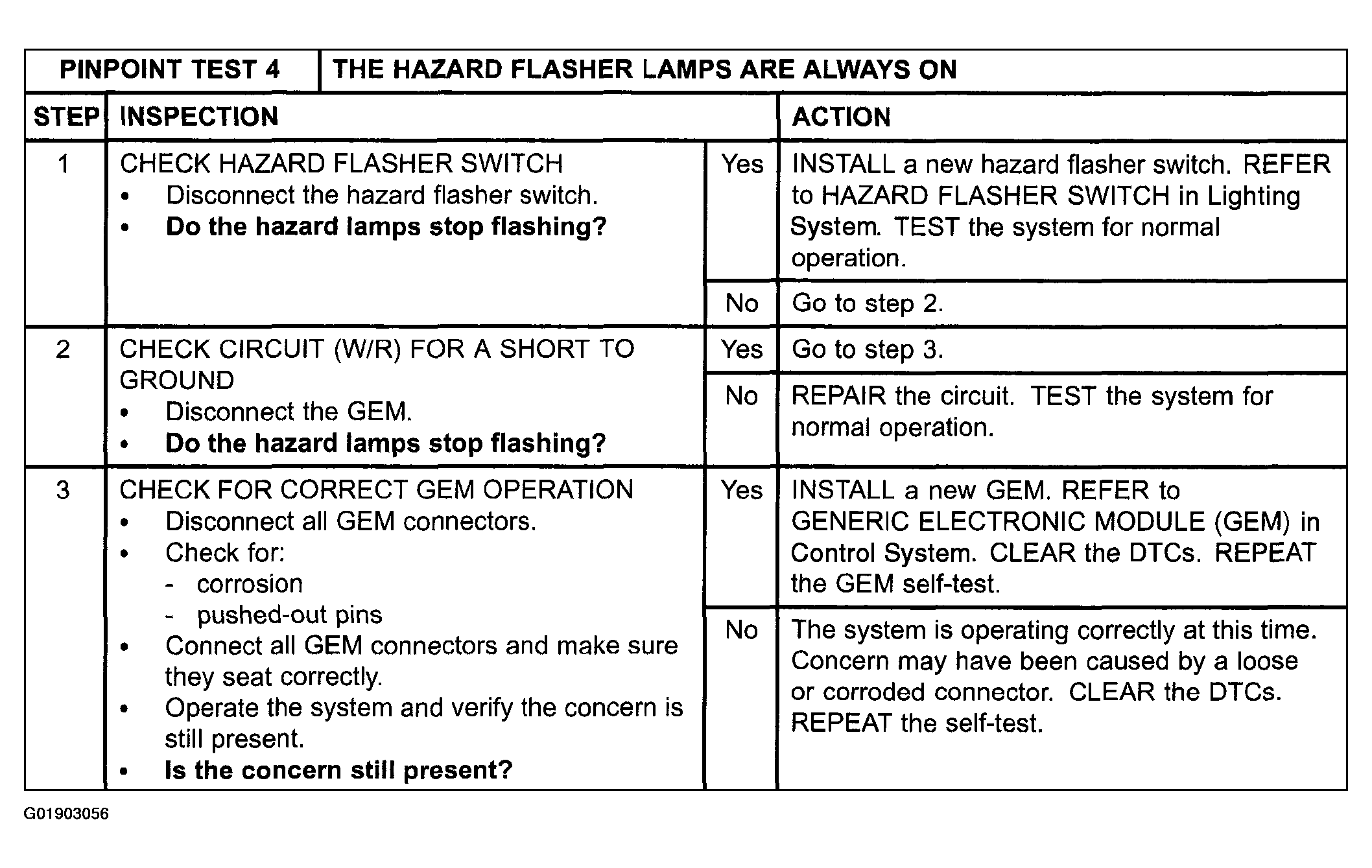

Fig 1: Pinpoint Test 4: Hazard Flasher Lamps Are Always On
G01903056Courtesy of MAZDA MOTORS CORP.
