Pinpoint Test 3: The Hazard Flasher Lamps Are Never On
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

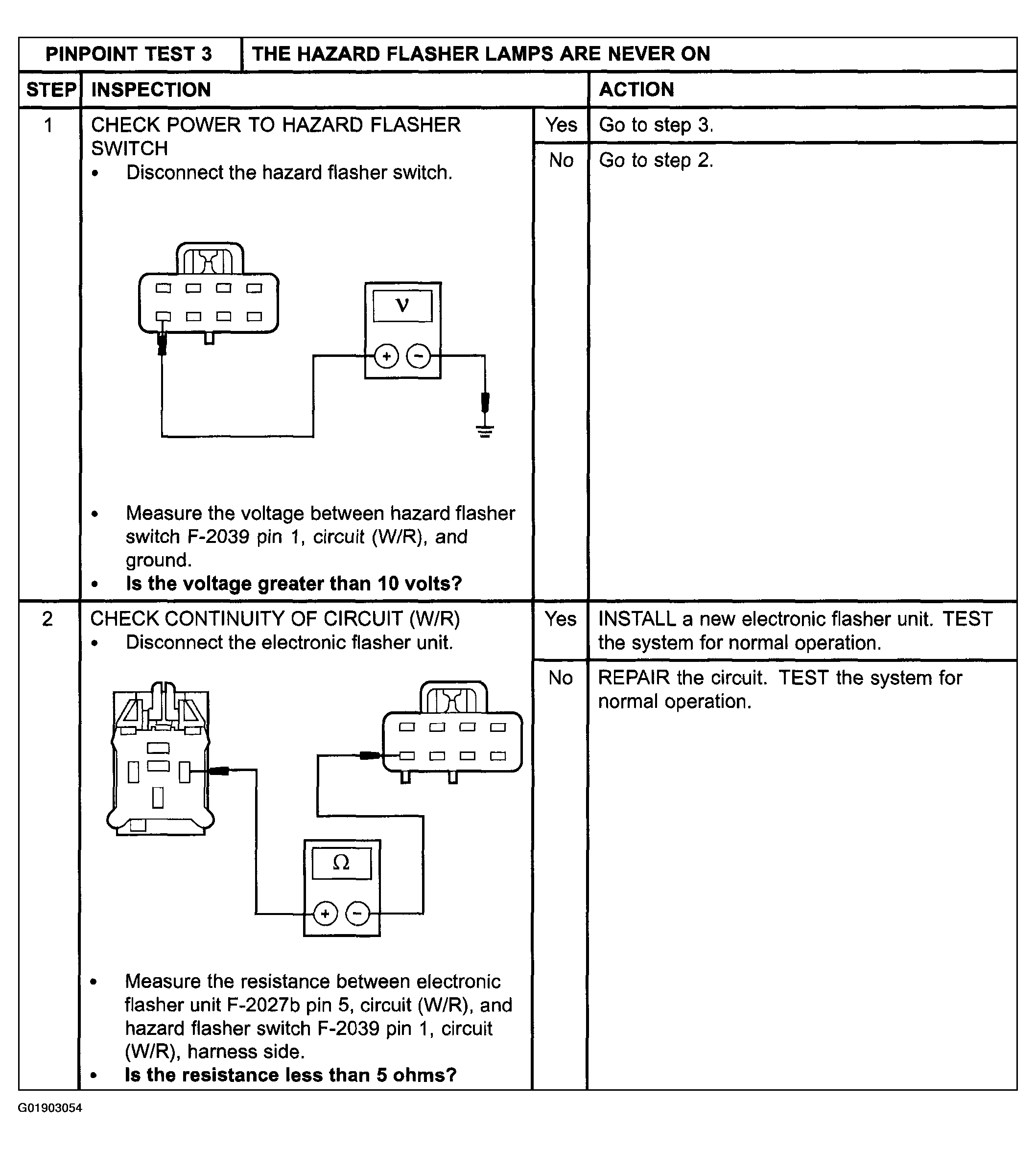

Fig 1: Pinpoint Test 3: Hazard Flasher Lamps Are Never On (Steps 1-2)
Courtesy of MAZDA MOTORS CORP.

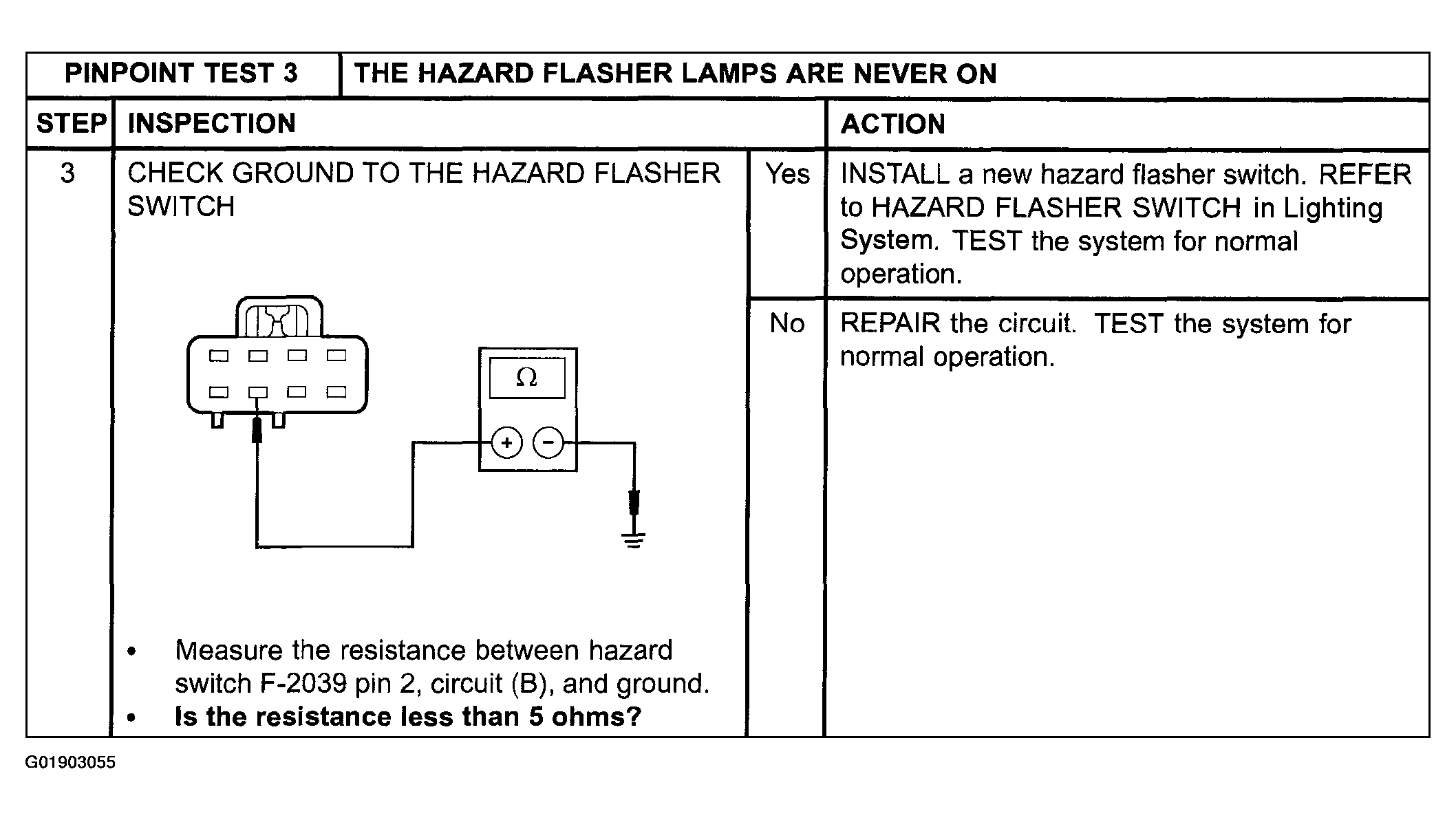

Fig 2: Pinpoint Test 3: Hazard Flasher Lamps Are Never On (Step 3)
