Pinpoint Test 1: The Turn Signal Lamps Are Never On

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Pinpoint Test 1: Turn Signal Lamps Are Never On (Step 1)

Courtesy of MAZDA MOTORS CORP.

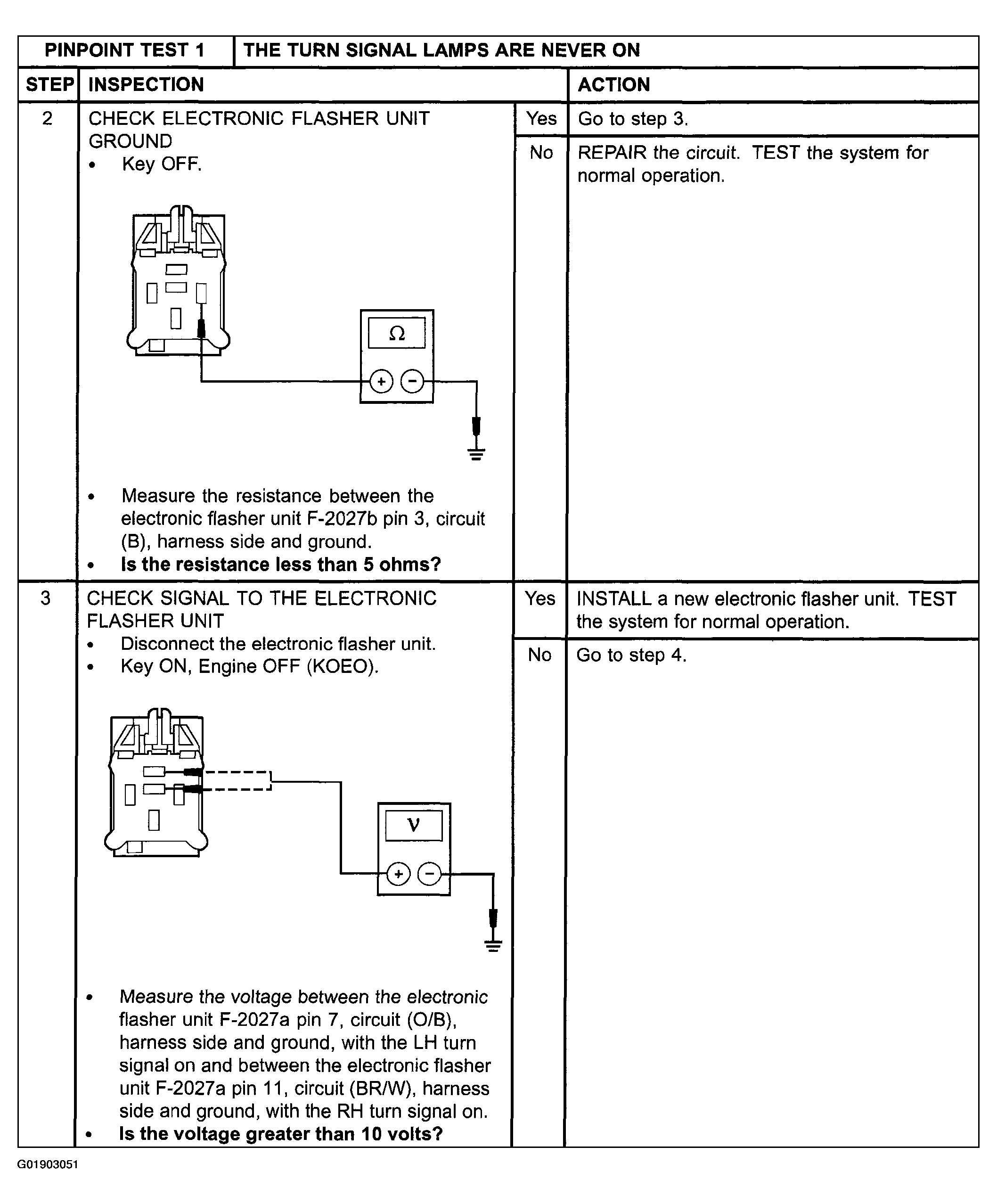

Fig 2: Pinpoint Test 1: Turn Signal Lamps Are Never On (Steps 2-3)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Pinpoint Test 1: Turn Signal Lamps Are Never On (Steps 4-5)

Courtesy of MAZDA MOTORS CORP.
