Pinpoint Test 1: The STOPLAMPS Are Inoperative

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

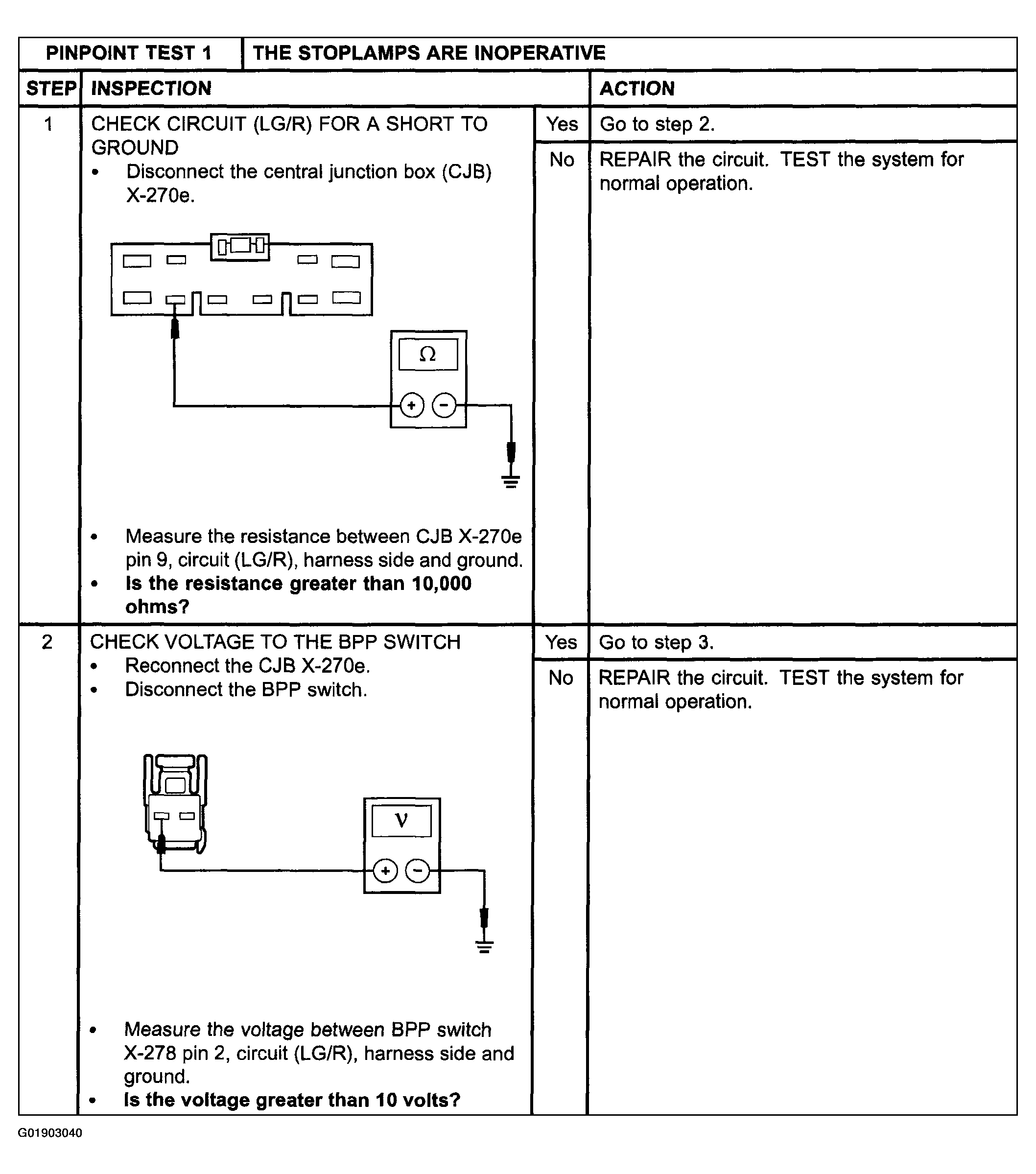

Fig 1: Pinpoint Test 1: Stoplamps Are Inoperative (Steps 1-2)
G01903040Courtesy of MAZDA MOTORS CORP.

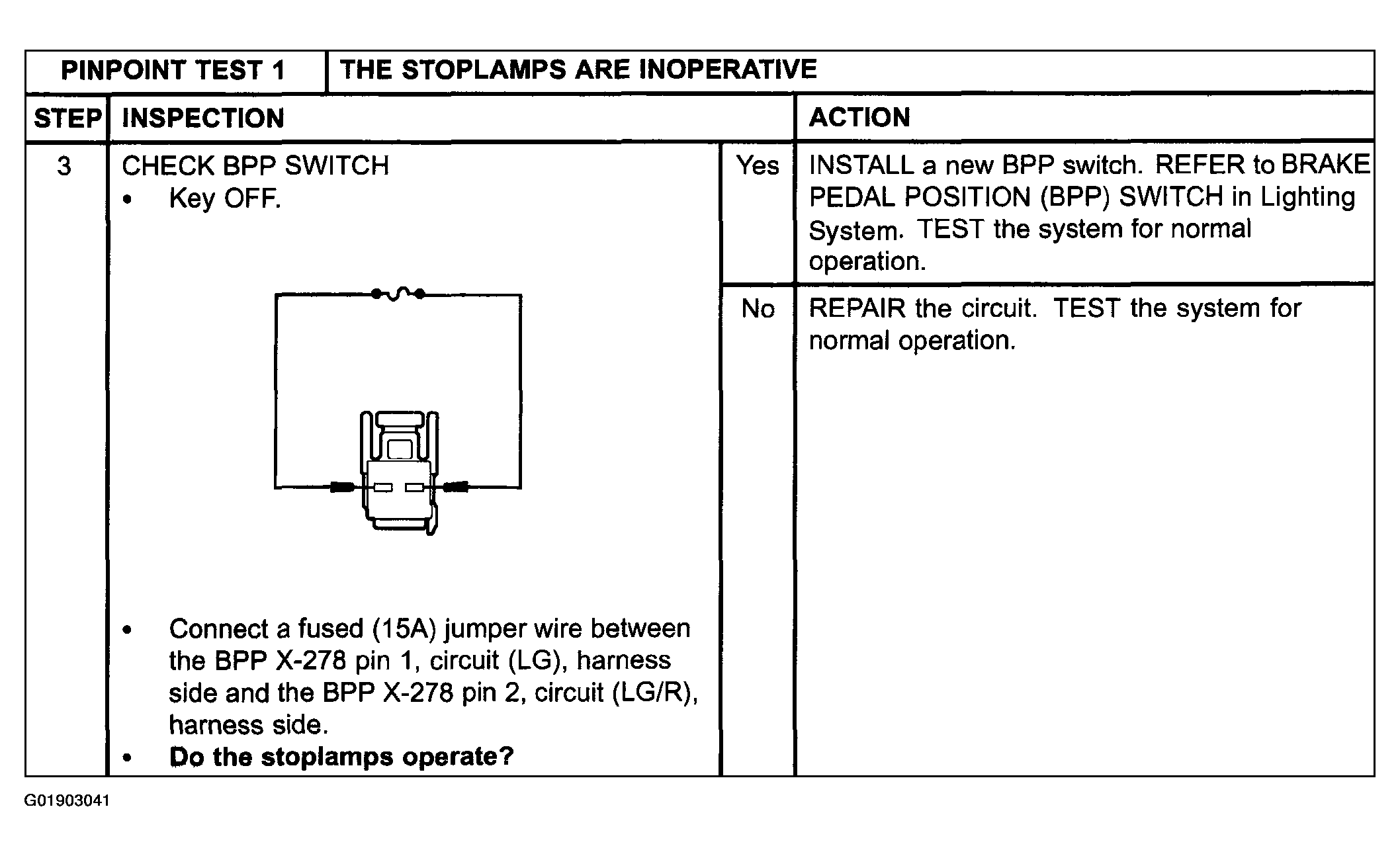

Fig 2: Pinpoint Test 1: Stoplamps Are Inoperative (Step 3)
G01903041Courtesy of MAZDA MOTORS CORP.
