WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

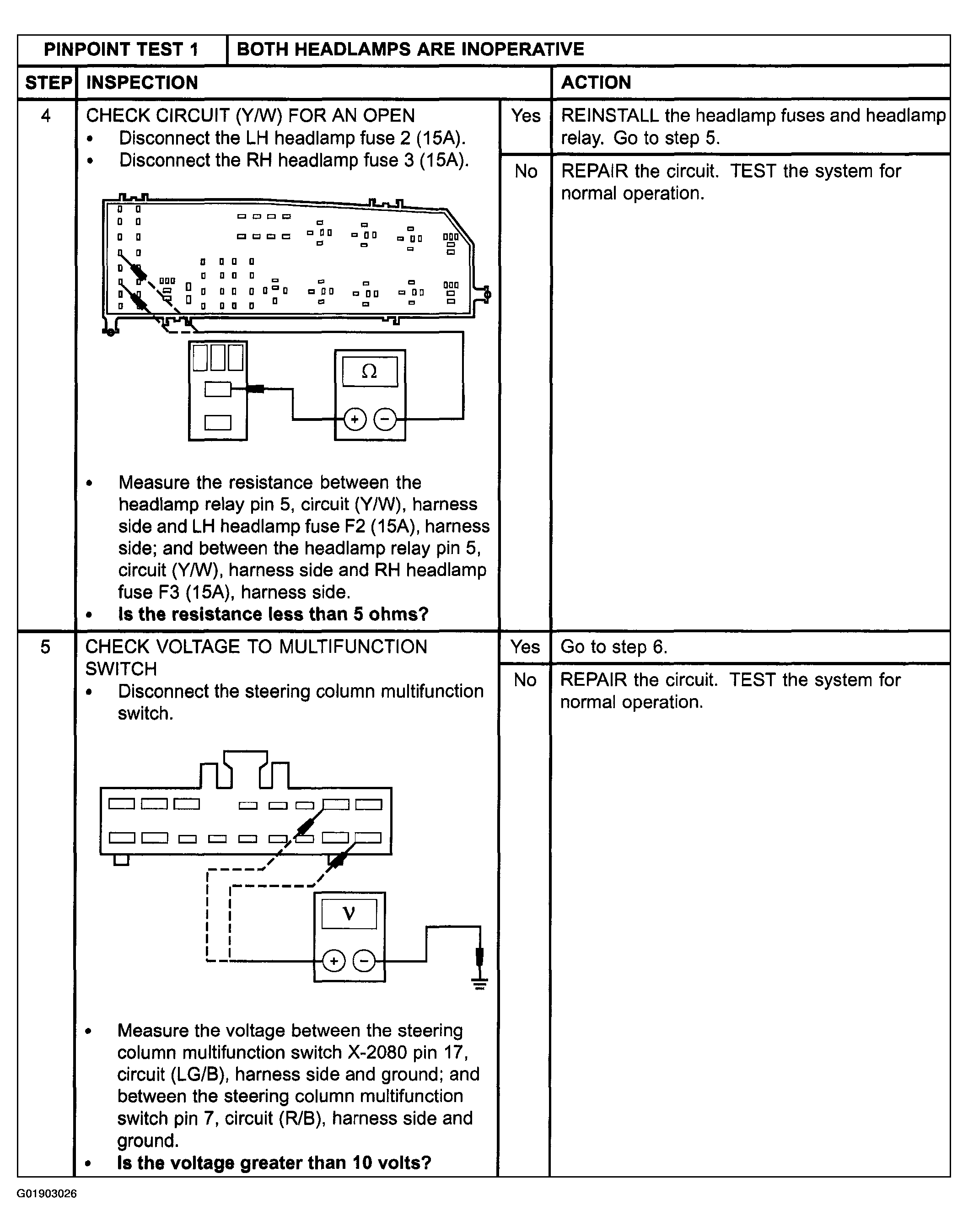

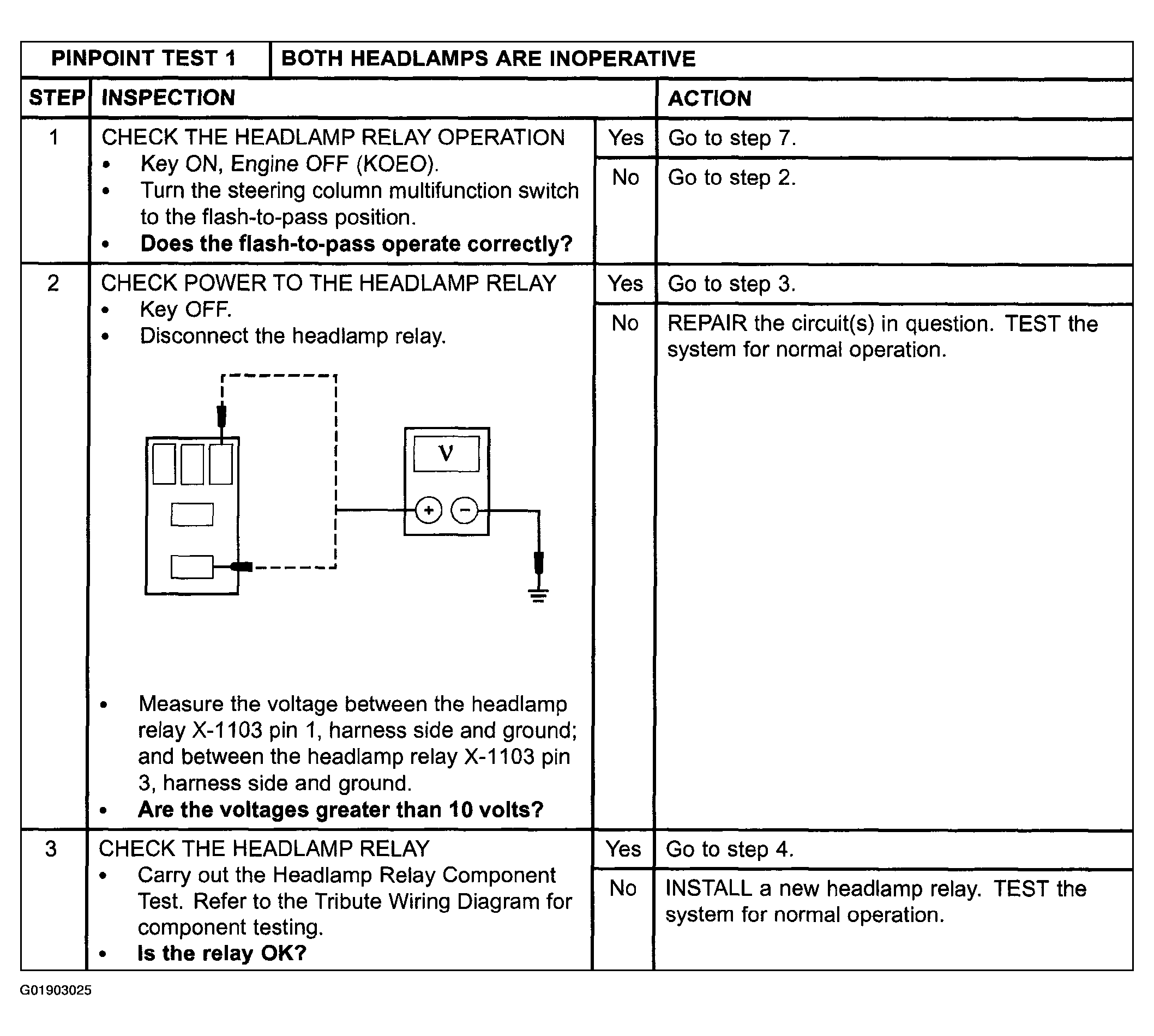

Fig 1: Pinpoint Test 1: Both Headlamps Are Inoperative (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Pinpoint Test 1: Both Headlamps Are Inoperative (Steps 4-5)
Courtesy of MAZDA MOTORS CORP.

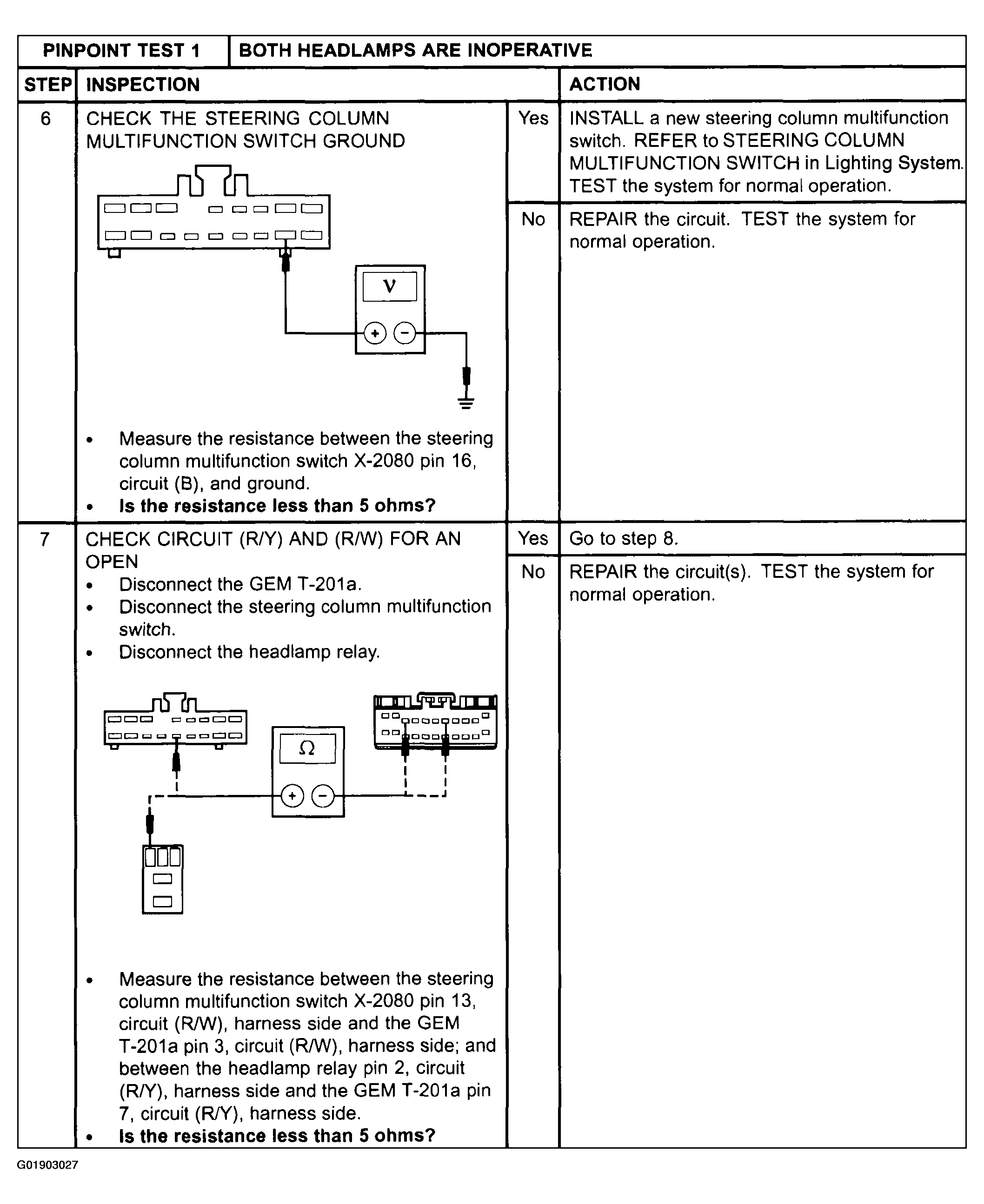

Fig 3: Pinpoint Test 1: Both Headlamps Are Inoperative (Steps 6-7)
Courtesy of MAZDA MOTORS CORP.

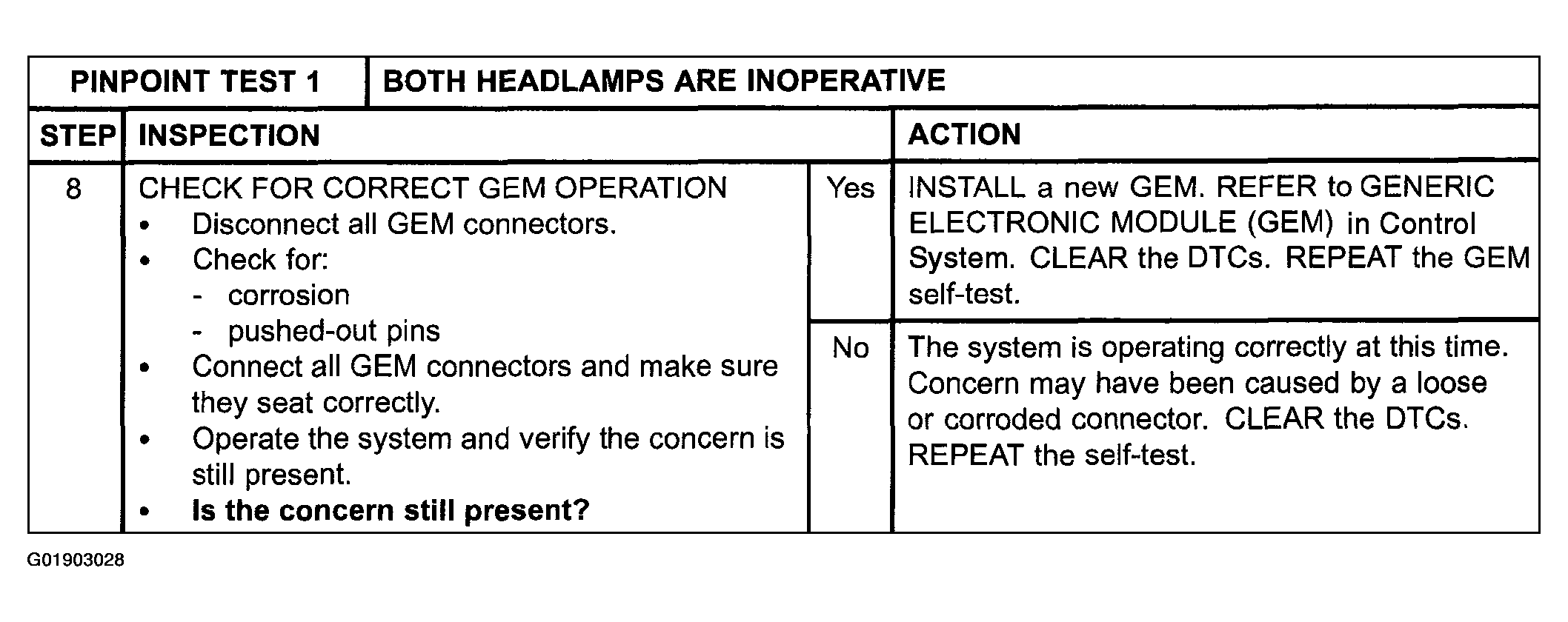

Fig 4: Pinpoint Test 1: Both Headlamps Are Inoperative (Step 8)
