Pinpoint Test 3: A Single Mirror Does Not Function With Switch Logic
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

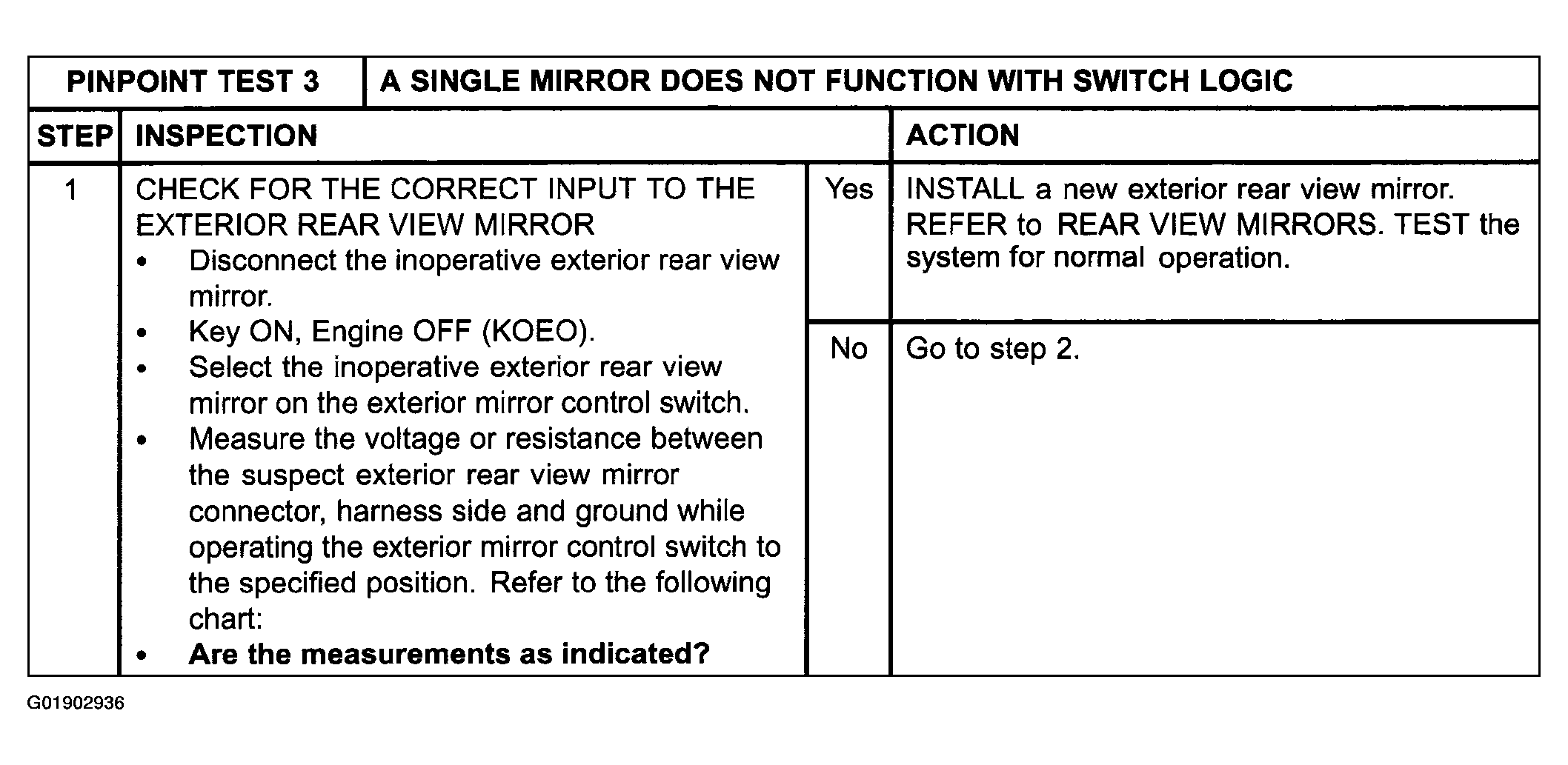

Fig 1: Pinpoint Test 3: A Single Mirror Does Not Function With Switch Logic (Step 1)
Courtesy of MAZDA MOTORS CORP.

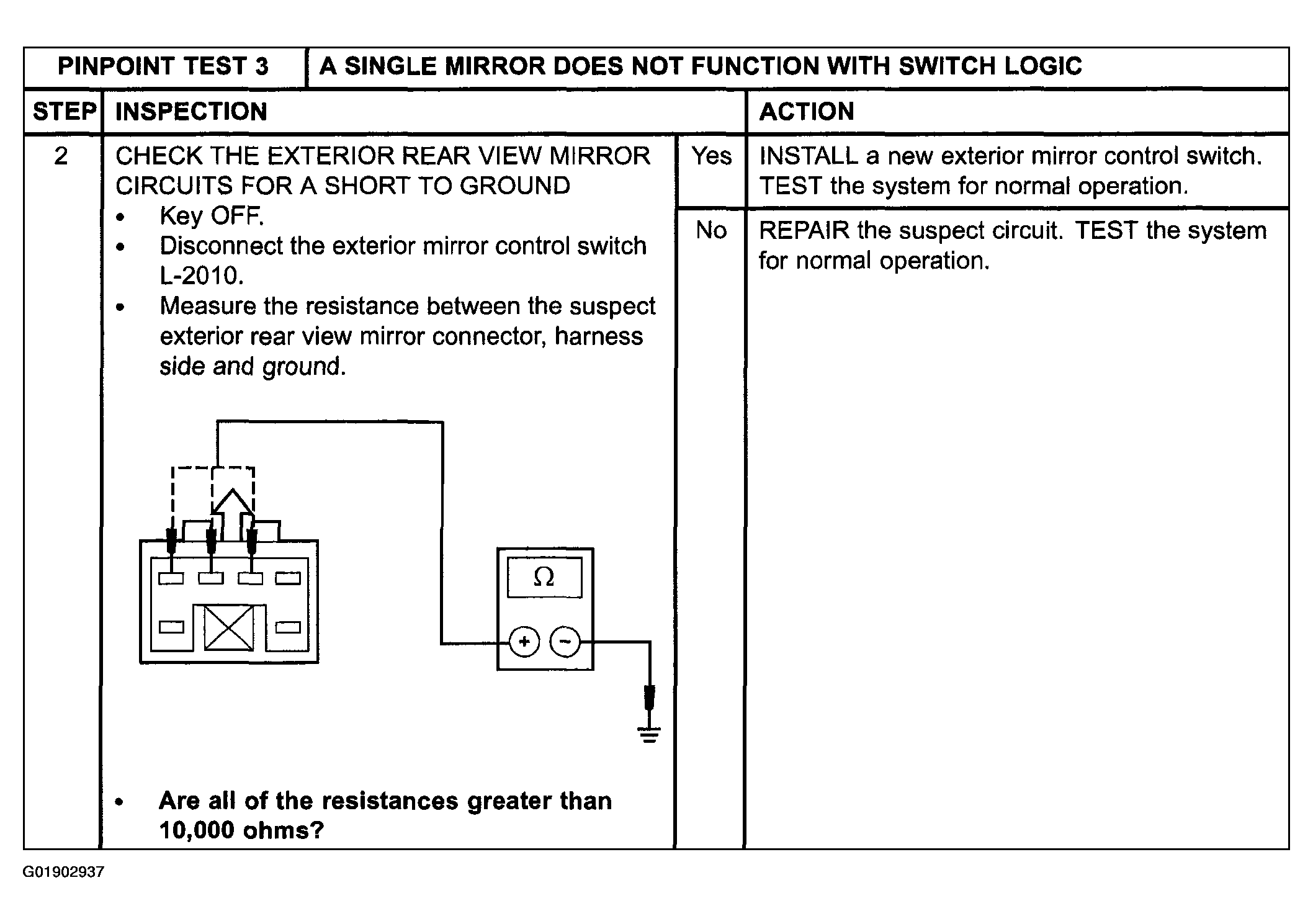

Fig 2: Pinpoint Test 3: A Single Mirror Does Not Function With Switch Logic (Step 2)
Courtesy of MAZDA MOTORS CORP.

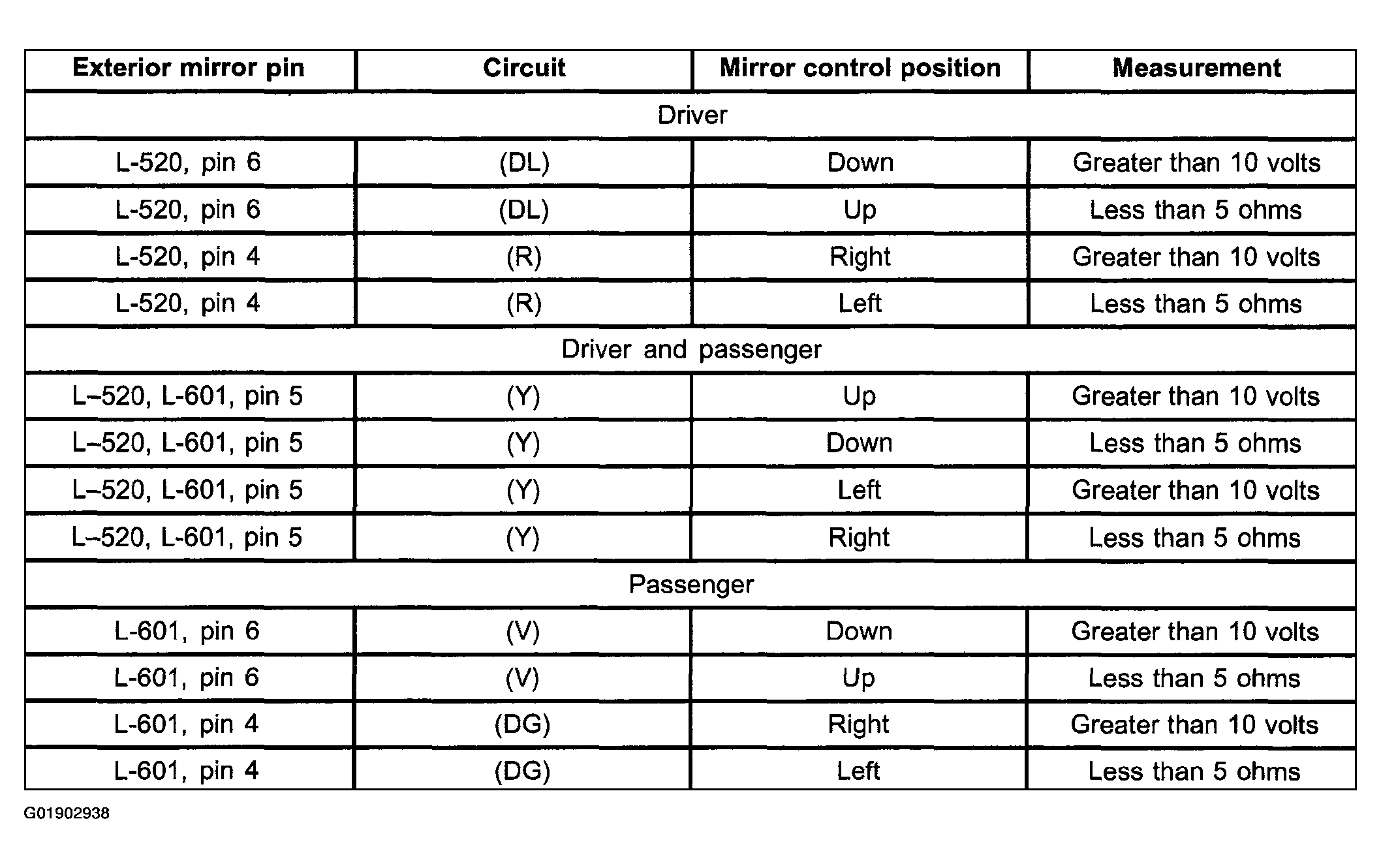

Fig 3: Driver And Passenger Exterior Circuit Specifications (1 Of 3)
Courtesy of MAZDA MOTORS CORP.
Fig 4: Driver And Passenger Exterior Circuit Specifications (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

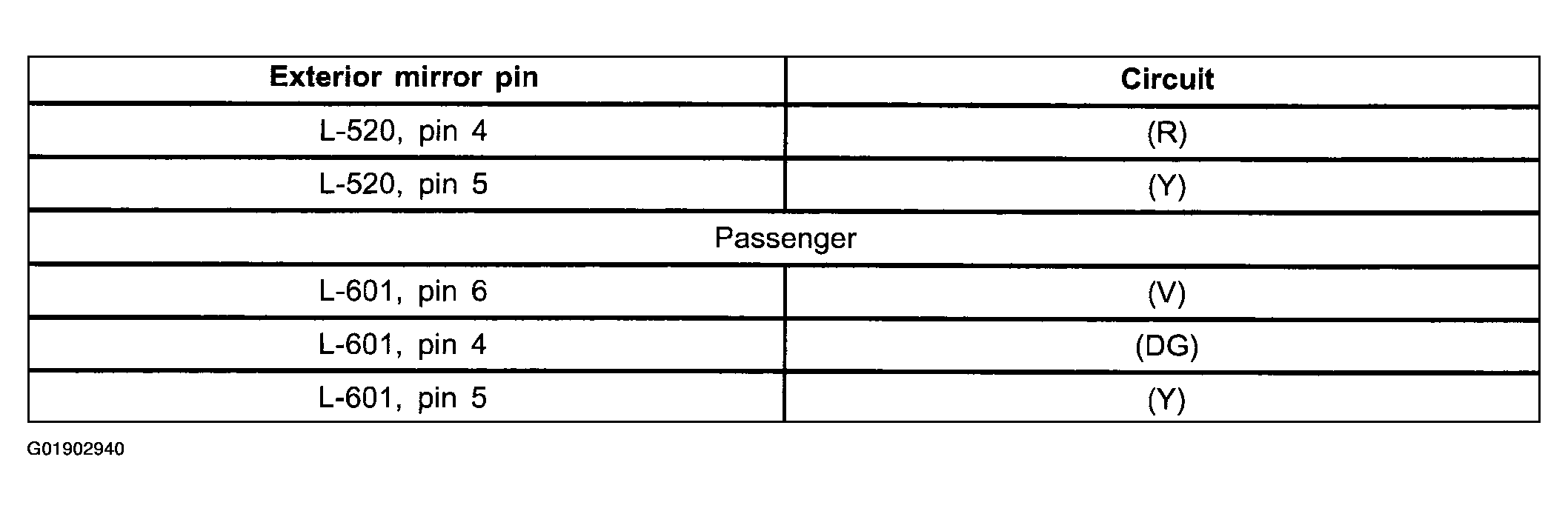

Fig 5: Driver And Passenger Exterior Circuit Specifications (3 Of 3)
