Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine coolant. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .

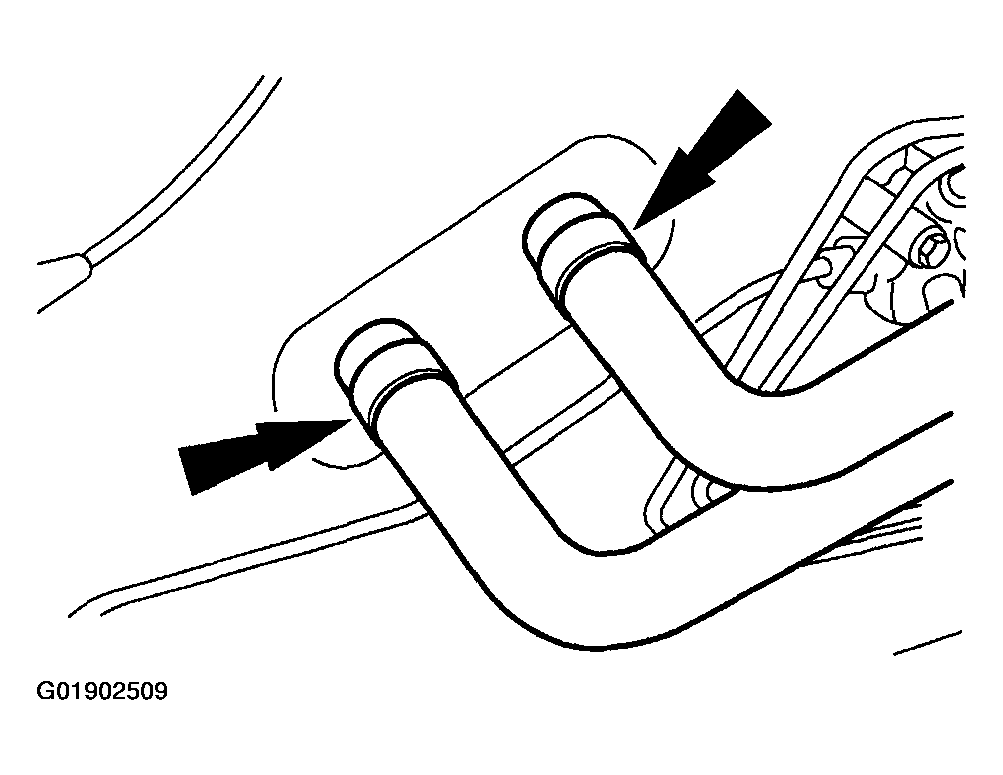

Fig 1: Disconnecting Heater Hoses From Heater Core (2.0L ZETEC)
Courtesy of MAZDA MOTORS CORP.
Disconnect the heater hoses from the heater core.

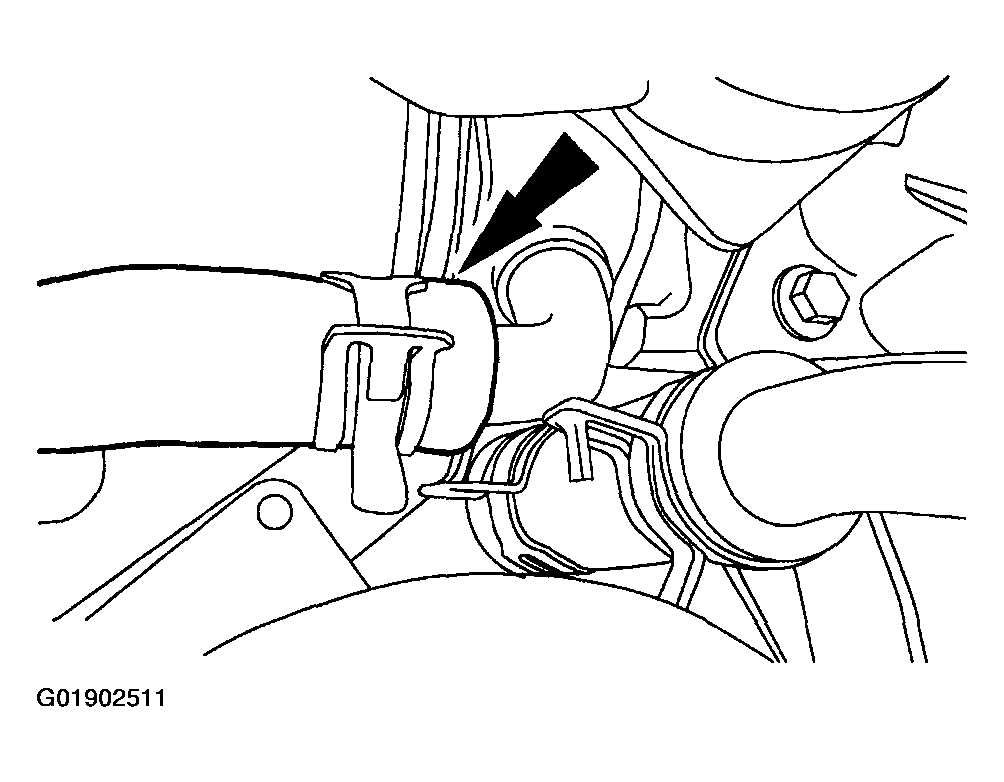

Fig 2: Disconnecting Heater Hose From Hose Connection (2.0L ZETEC) (1 Of 2)
Courtesy of MAZDA MOTORS CORP.
Disconnect the heater hose from the hose connection.
Remove the RH front wheel. For additional information, refer to WHEEL AND TIRE .

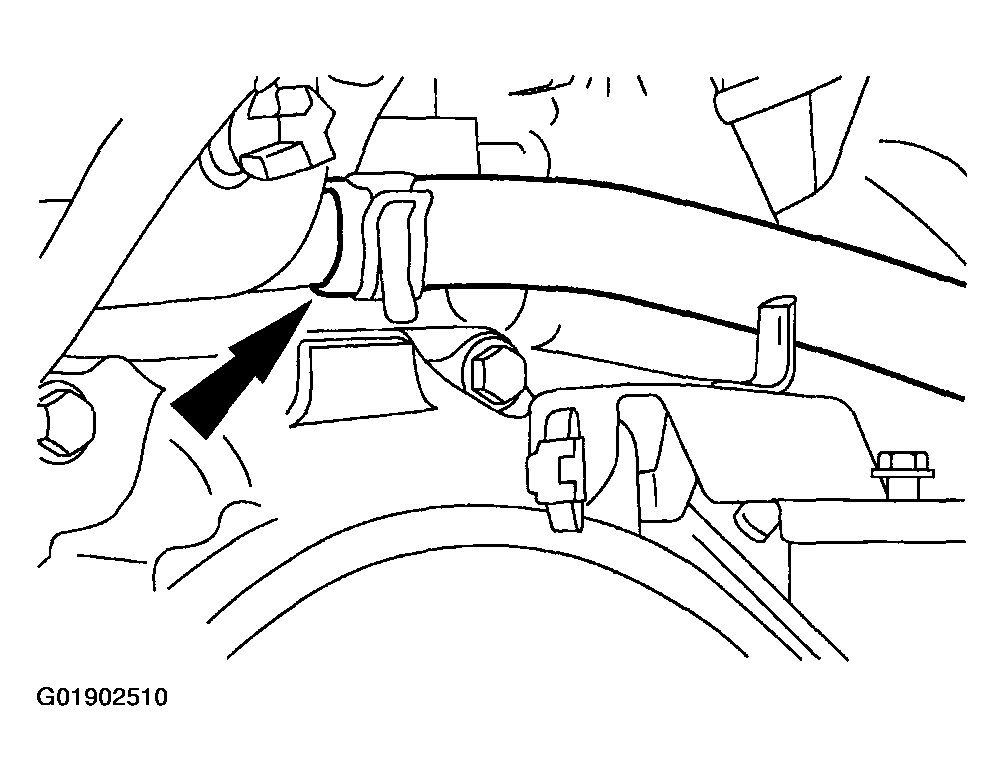

Fig 3: Disconnecting Heater Hose From Hose Connection (2.0L ZETEC) (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

Disconnect the heater hose from the hose connection.
To install, reverse the removal procedure.
1. Lubricate the hoses with Rubber Suspension Insulator Lube.
