Clutch And Clutch Field Coil: Removal

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the A/C compressor. For additional information, refer to AIR CONDITIONING (A/C) COMPRESSOR - 2.0L ZETEC in this section, or AIR CONDITIONING (A/C) COMPRESSOR - 3.0L DURATEC (4V) .

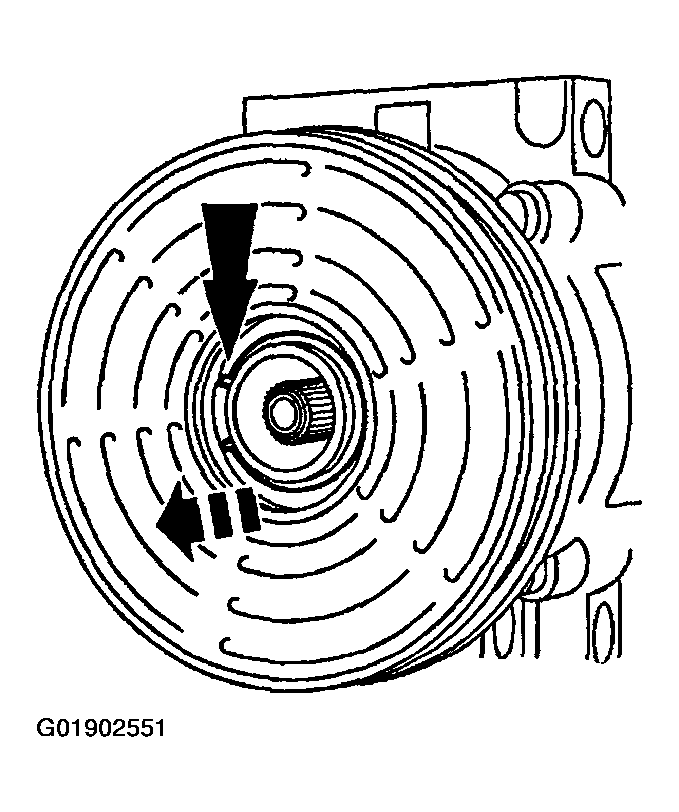

Fig 1: Removing A/C Clutch Bolt
Courtesy of MAZDA MOTORS CORP.
Using the special tool, remove the A/C clutch bolt.

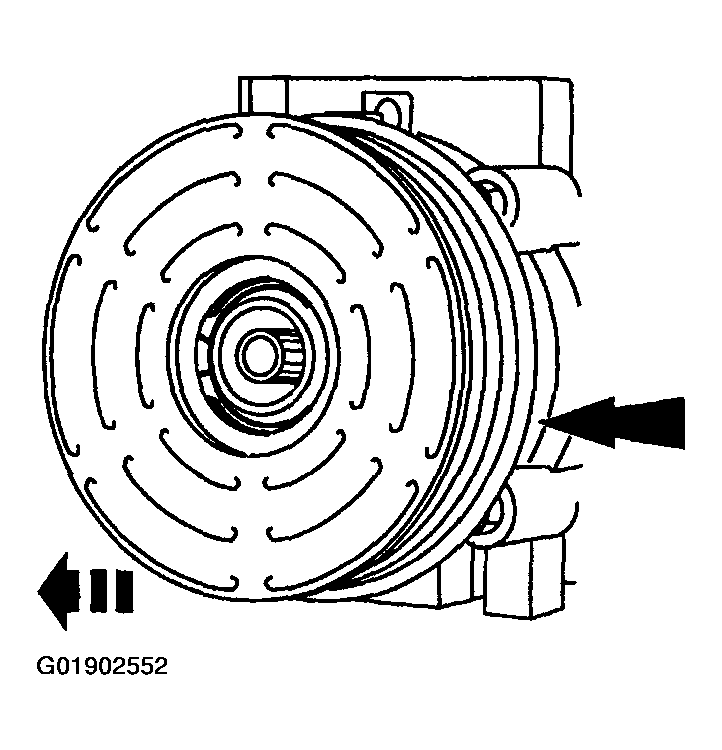

Fig 2: Removing Disk & Hub Assembly & A/C Clutch Hub Spacer
Courtesy of MAZDA MOTORS CORP.
Remove the disk and hub assembly and the A/C clutch hub spacer.
1. Thread an 8 x 1.25 mm bolt into the A/C clutch to force it from the compressor shaft.
2. Lift the disk and hub assembly and the A/C clutch hub spacer from the compressor shaft.

  Fig 3: Removing Pulley Snap Ring
  Courtesy of MAZDA MOTORS CORP.
Remove the pulley snap ring.

Fig 4: Removing A/C Clutch Pulley
Courtesy of MAZDA MOTORS CORP.
Remove the A/C clutch pulley.

Fig 5: Removing A/C Clutch Field Coil
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not use air tools. The A/C clutch field coil can be easily damaged.
Remove the A/C clutch field coil.
1. Note the location of the A/C clutch field coil electrical connector.
2. Using the special tools, remove the A/C clutch field coil.
