Vehicle without T-stud (When replacing roof panel)

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Apply primer to the areas of the roof panel indicated.

Fig 1: Applying Primer To Roof Panel
Courtesy of MAZDA MOTORS CORP.
Cut the spring off of the front and rear ends of the roof molding.

Fig 2: Cutting Spring Off Of Front And Rear Ends Of Roof Molding
Courtesy of MAZDA MOTORS CORP.
Apply primer to the areas of the roof molding indicated in Fig 3 .
Apply sealant to the areas of the roof molding indicated in Fig 3 .

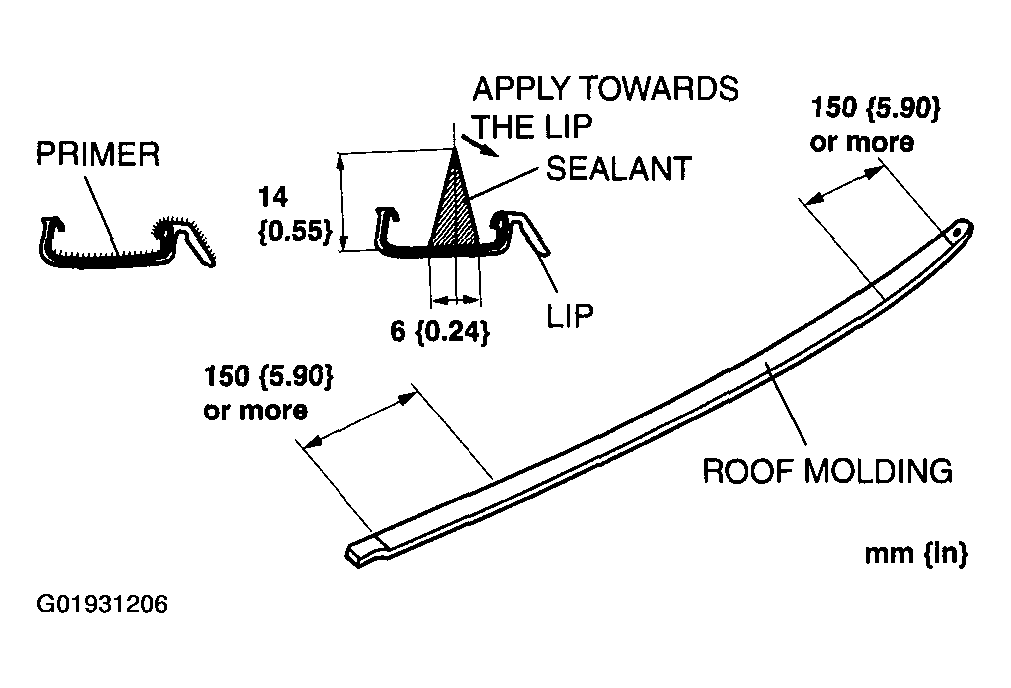

Fig 3: Applying Primer/Sealant To Roof Molding
Courtesy of MAZDA MOTORS CORP.
Install the roof molding to the clips as shown.

Fig 4: Installing Roof Molding To Clips
Courtesy of MAZDA MOTORS CORP.
Use a plastic card (10 mm {0.39 in} width, 30 mm {1.18 in} length) to adjust the front and rear gaps of the roof molding.

Fig 5: Using Plastic Card For Adjusting Roof Molding
Courtesy of MAZDA MOTORS CORP.
Secure the front and rear ends of the roof molding as shown.

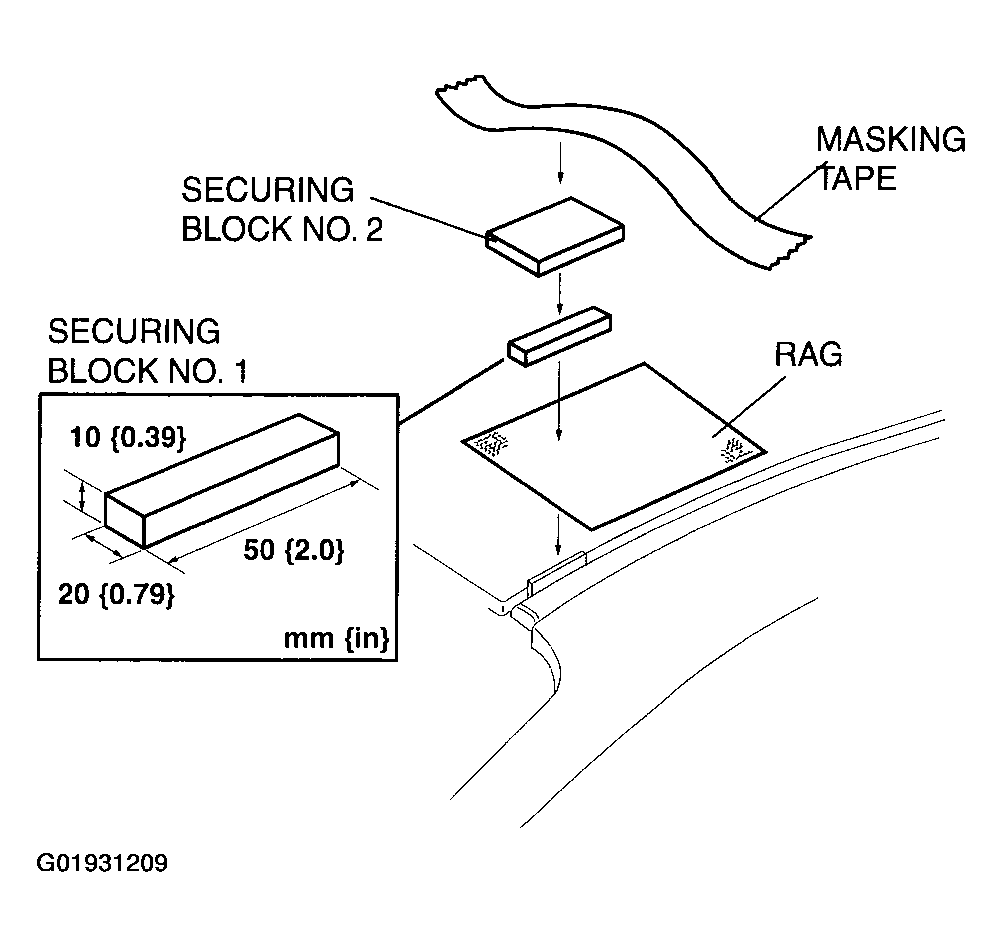

Fig 6: Securing Front And Rear Ends Of Roof Molding
Courtesy of MAZDA MOTORS CORP.
After the adhesive material has hardened, remove the securing parts.
