Vehicle with T-stud
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

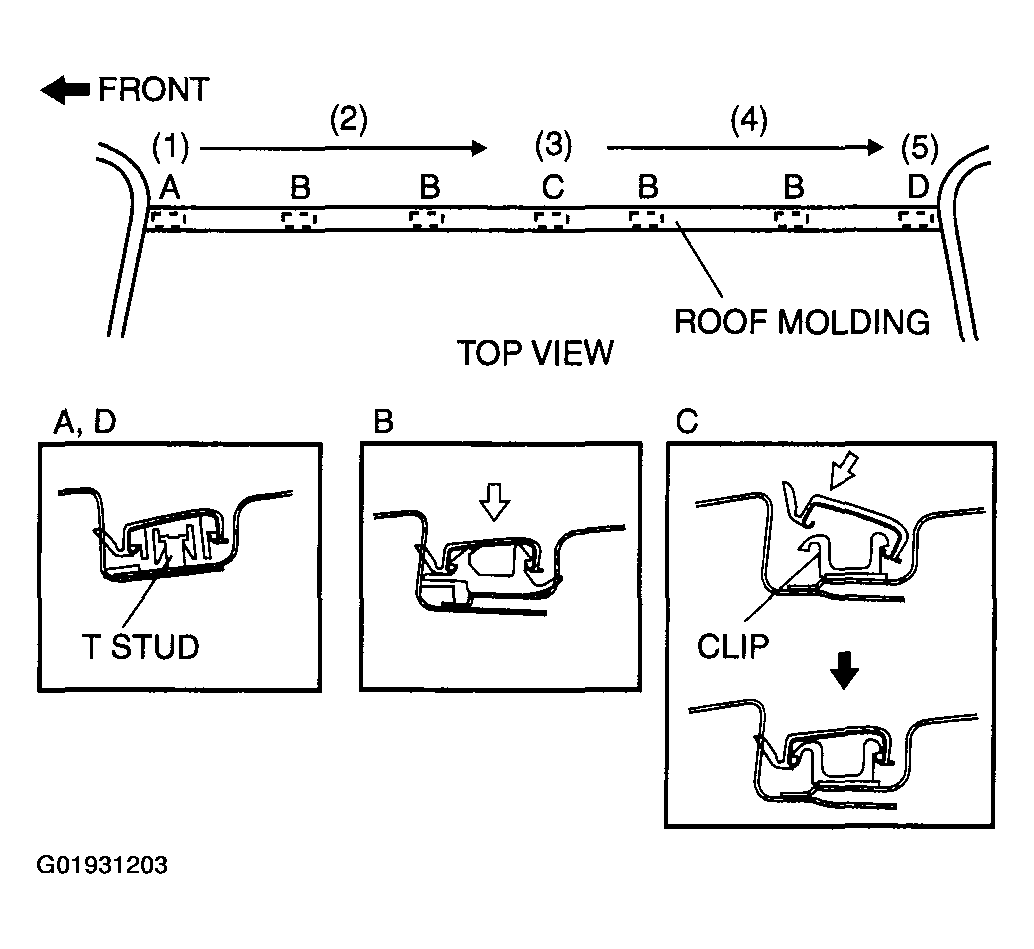

- Attach the roof molding to the T-stud at section A.
- Press in the roof molding following the arrows.
- Hook the roof molding to the clip, and then press it in to attach the roof molding to the clip.
- Press in the roof molding following the arrows.
- Attach the roof molding to the T-stud at section D.
