Front BELTLINE Molding Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Press the clip into the body.
Press in section B of the front beltline molding along the direction (1) shown in Fig 1 to attach it to the body.
NOTE:
- If the front beltline molding is difficult to attach, apply soapy water.

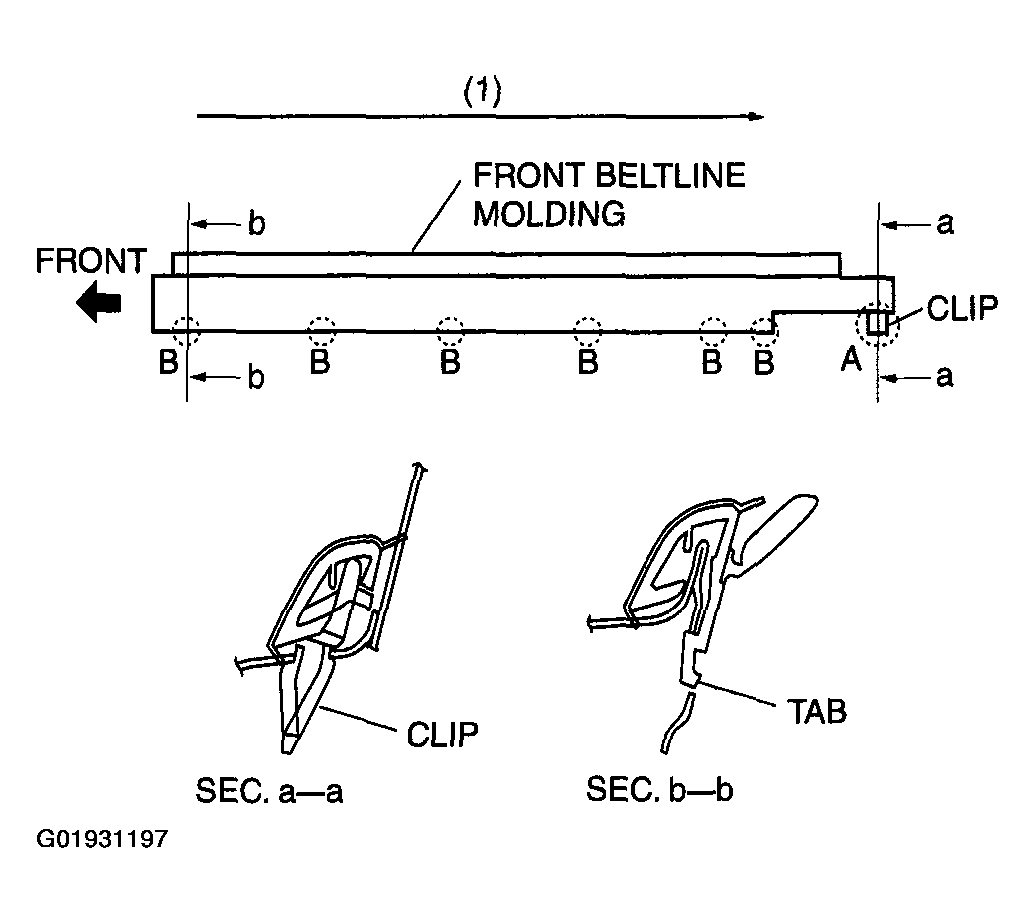

Fig 1: Installing Front Beltline Molding To Body
Courtesy of MAZDA MOTORS CORP.
