Oil Pump Removal Note (AJ)

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the oil pump bolts in the order shown in Fig 1.

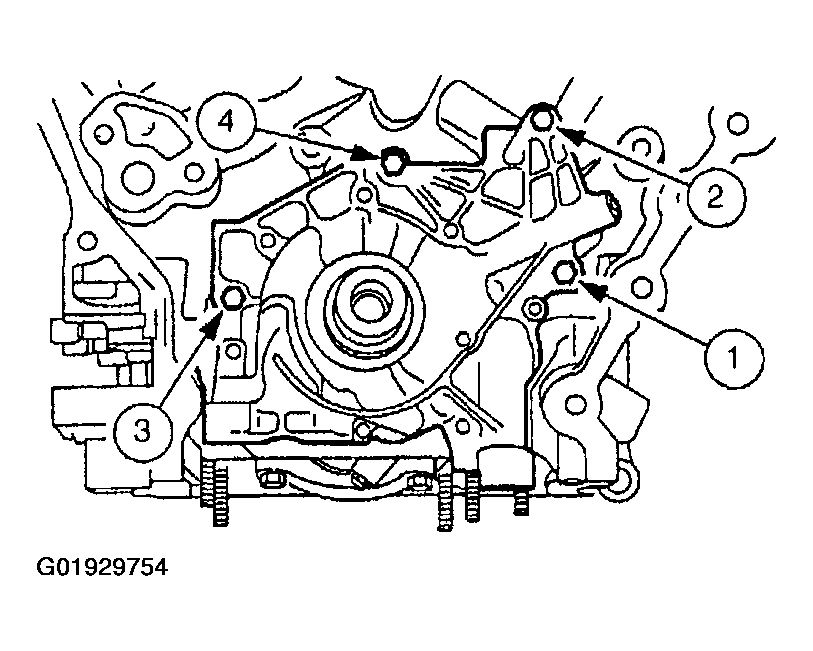

Fig 1: Loosening Sequence Of Oil Pump Bolts
Courtesy of MAZDA MOTORS CORP.
