Cylinder Head Cover (RH) Installation Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Apply silicone sealant to the mating faces as shown in Fig 1.

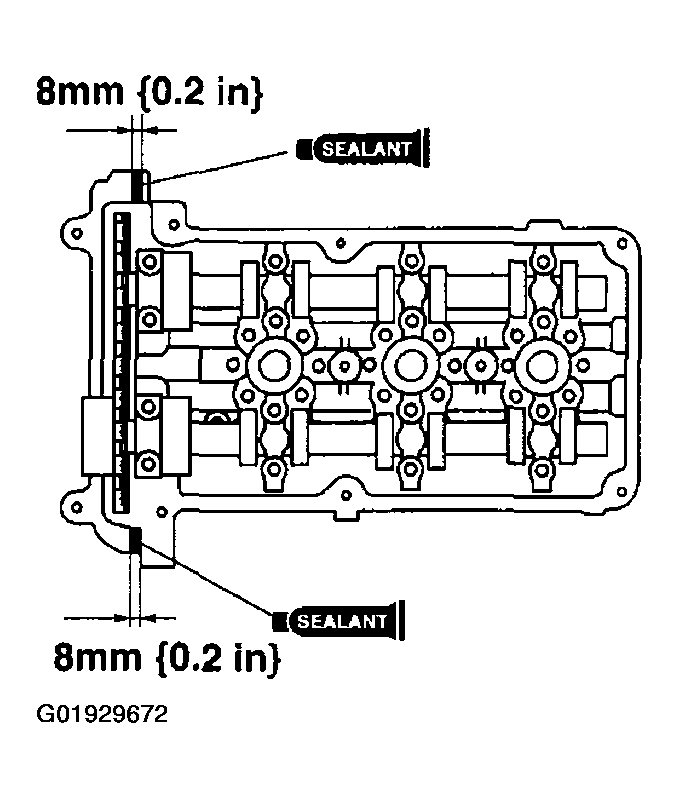

Fig 1: Identifying Silicone Sealant Application Locations
Courtesy of MAZDA MOTORS CORP.
Install the cylinder head cover with a new gasket.
Install the oil control valve (OCV) with cylinder head cover raised as shown in Fig 2.
NOTE:
- Take care not to let the OCV tightening bolt slip into the timing chain cover when Installing the OCV tightening bolt from engine front.

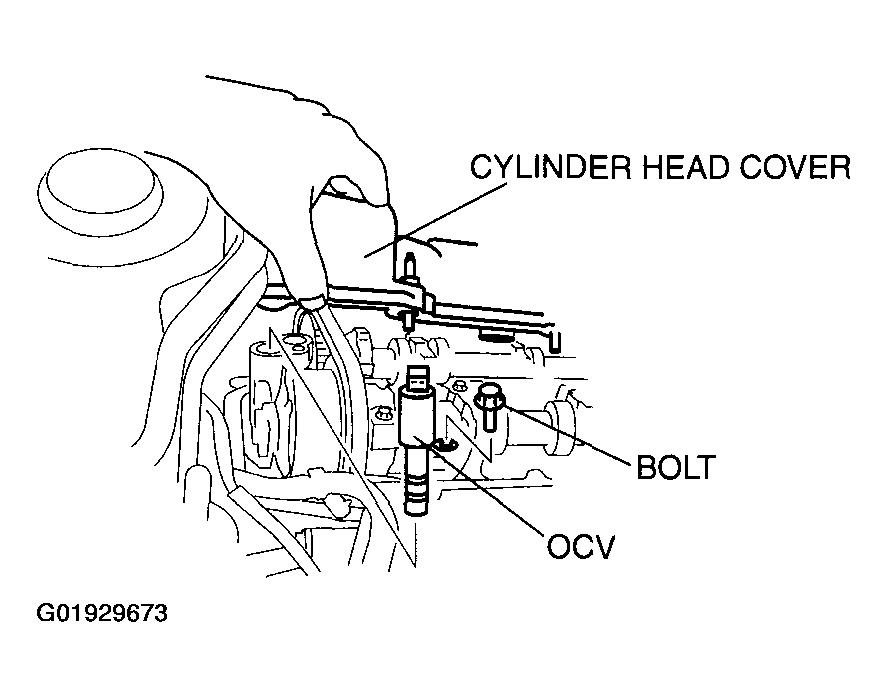

Fig 2: Installing Oil Control Valve
Courtesy of MAZDA MOTORS CORP.

Tightening torque
1. 8.0-12.0 N.m
2. {82-122 kgf.cm, 71-106 in.lbf}
Install the cylinder head cover.
Tighten the bolts in the order shown in Fig 3.

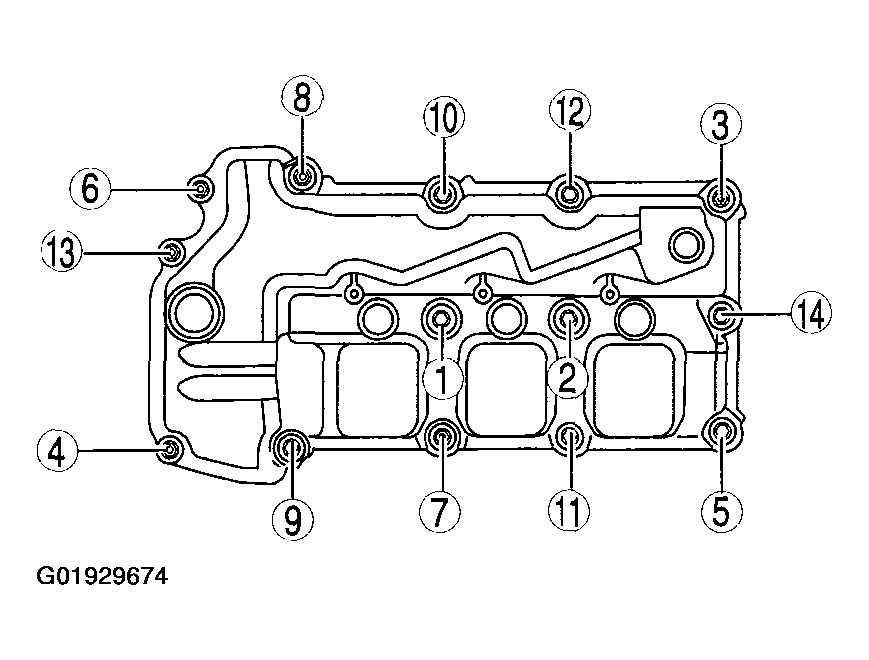

Fig 3: Tightening Sequence Of Cylinder Head Cover Bolts (RH)
Courtesy of MAZDA MOTORS CORP.
