Idle Speed Inspection

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Idle speed is not adjustable.
  • Idle speed verification requires WDS or equivalent.
  1. Verify that the idle speed (WDS: RPM PID) is within the specification using WDS or equivalent.

    Idle speed

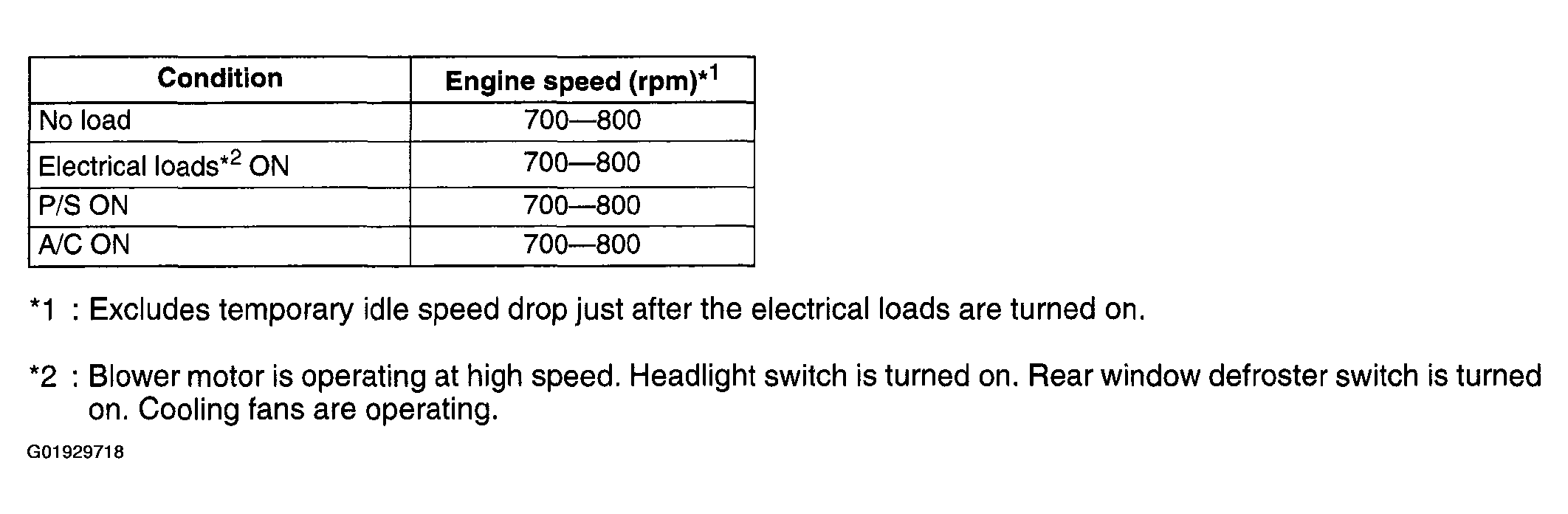

    Fig 1: AJ Engine Idle Speed Specifications
    G01929718Courtesy of MAZDA MOTORS CORP.
  1. Excludes temporary idle speed drop just after the electrical loads are turned on.
  2. Blower motor is operating at high speed. Headlight switch is turned on. Rear window defroster switch is turned on. Cooling fans are operating.
