Front Drive Belt

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the under cover and splash shield (RH).
  2. Set a breaker bar on the center of the tensioner pulley as shown in Fig 1.
  3. Using the breaker bar, turn the center of the tensioner pulley clockwise to release tension to the drive belt.

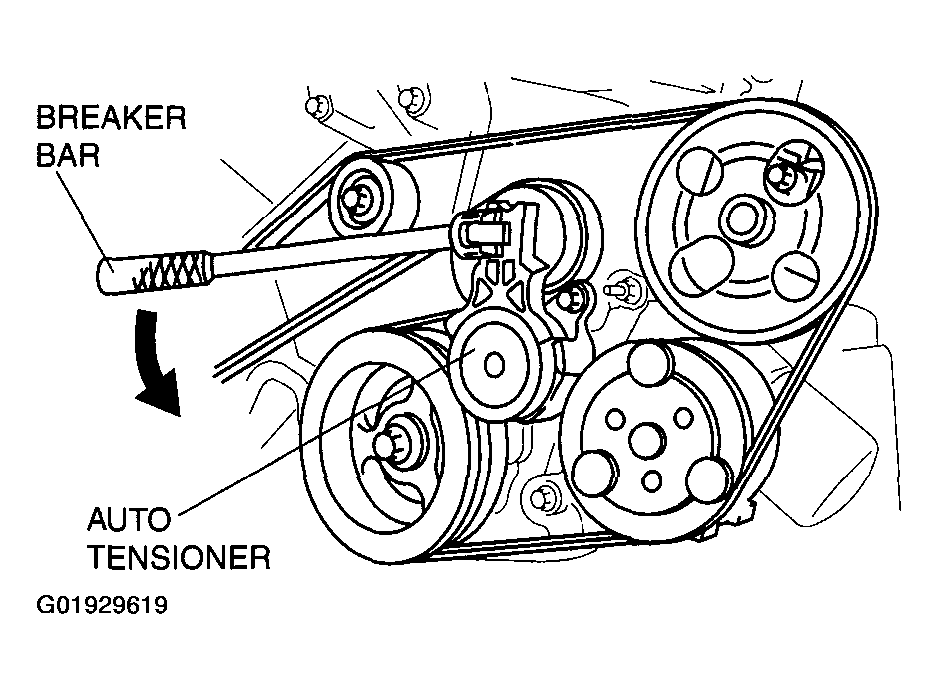

    Fig 1: Releasing Front Drive Belt Tension
    G01929619Courtesy of MAZDA MOTORS CORP.
  4. Remove the drive belt.
  5. Reinstall the drive belt or install a new drive belt.
  6. Verify that the drive belt auto tensioner indicator mark does not exceed the limit. (See FRONT DRIVE BELT .)
    • If it exceeds the limit, replace the drive belt.
  7. Install the splash shield (RH).
