Cylinder Head (RH) Installation Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten the cylinder head bolts in the order shown in Fig 1 using the following 6 steps.
    1. Tighten to 32-38 N.m {3.3-3.8 kgf.m, 24-28 ft.lbf}  .
    2. Tighten 85°  -95°  .
    3. Loosen 360°  (one full turn) in reverse order.
    4. Tighten to 32-38 N.m {3.3-3.8 kgf.m, 24-28 ft.lbf}  .
    5. Tighten 85°  -95°  .
    6. Tighten 85°  -95°  .

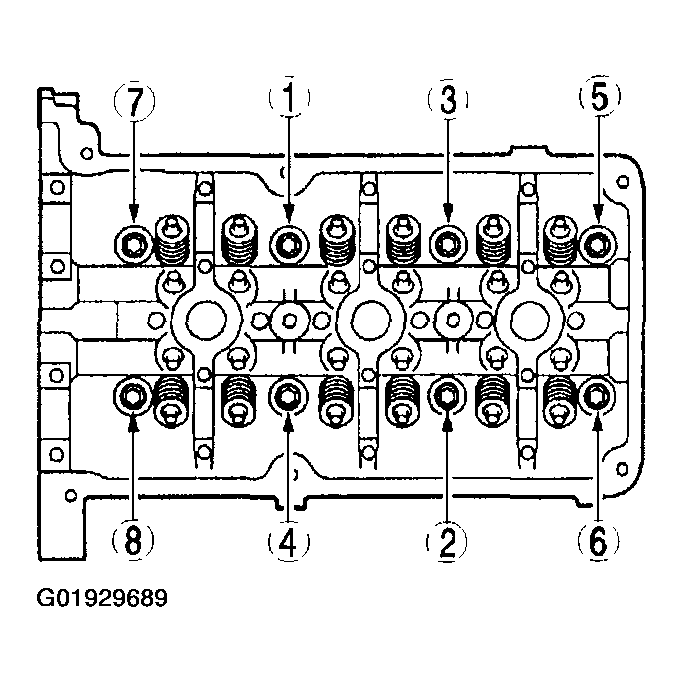

    Fig 1: Tightening Sequence Of RH Cylinder Head Bolts
    G01929689Courtesy of MAZDA MOTORS CORP.
