Pilot Bearing Inspection/Replacement [Mt]: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mazda RX-8, 2010 Mazda RX-8, 2009 Mazda RX-8, 2008 Mazda RX-8, and 2007 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new pilot bearing using the SSTs  .
  2. Apply grease to the pilot bearing.

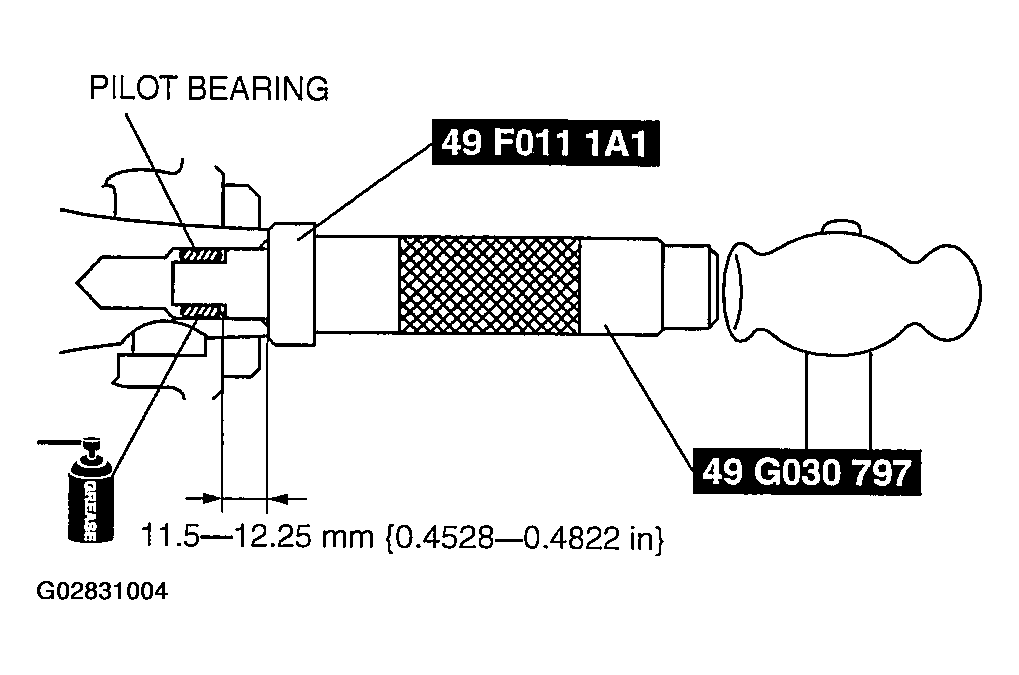

    Fig 1: Installing Pilot Bearing Installing Pilot Bearing
    G02831004Courtesy of MAZDA MOTORS CORP.
  3. Install a new oil seal using the SSTs  .
    Fig 2: Installing Oil Seal
    G02831005Courtesy of MAZDA MOTORS CORP.
