Pulley LOCKBOLT Disassembly Note

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mazda RX-8, 2010 Mazda RX-8, 2009 Mazda RX-8, 2008 Mazda RX-8, and 2007 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lock the flywheel (MT) or counterweight (AT) against rotation using the SST  .

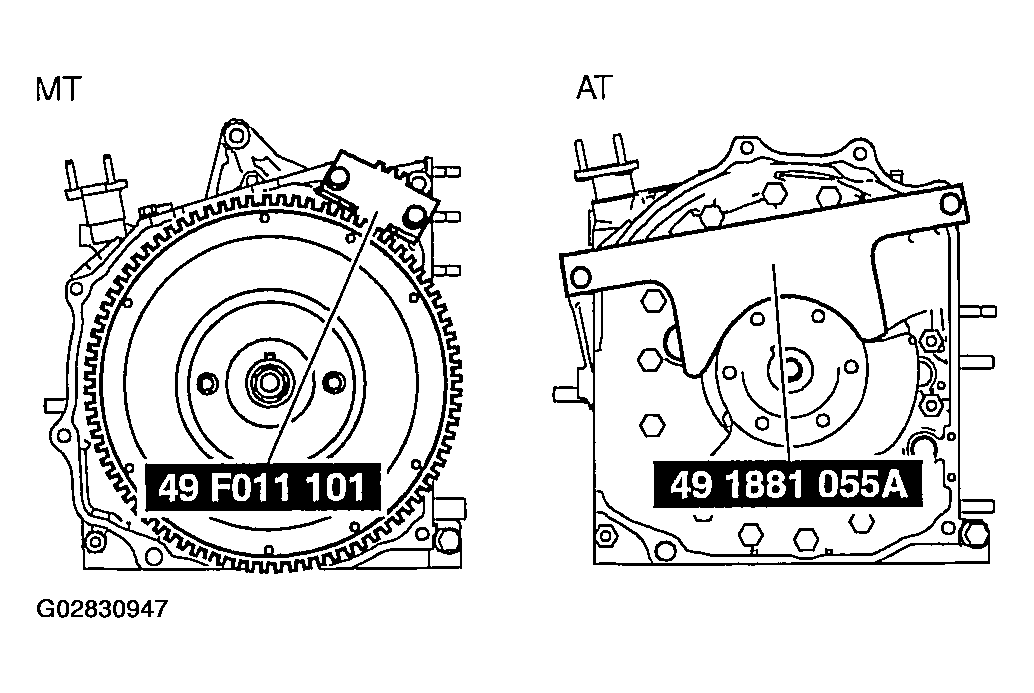

    Fig 1: Locking Flywheel/Counterweight
    G02830947Courtesy of MAZDA MOTORS CORP.
