Chain TENSIONER (RH) Disassembly Note

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before removing chain tensioner (RH), turn the crankshaft clockwise to position the crankshaft keyway in the 3 o'clock  position, (camshafts (RH) are in the neutral position.)
    Fig 1: Crankshaft Keyway In 3 O'clock Position
    G02831251Courtesy of MAZDA MOTORS CORP.
  2. Hold the timing chain tensioner ratchet lock mechanism away from the ratchet stem with a thin screwdriver.
  3. Slowly press the tensioner piston.
  4. Hold the tensioner piston with a 1.5 mm (0.06 in)  wire or paper clip.

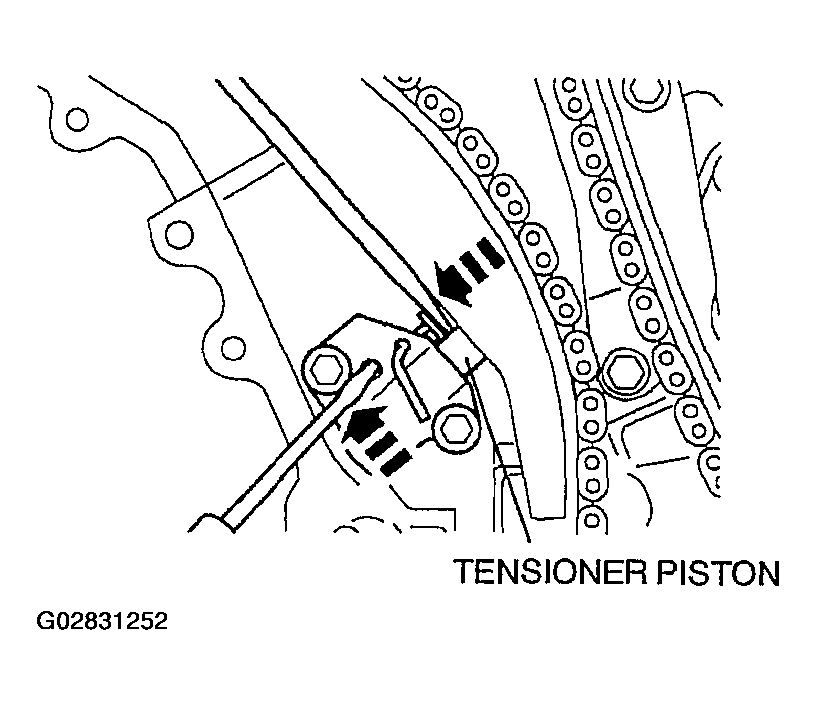

    Fig 2: Holding Tensioner Piston
    G02831252Courtesy of MAZDA MOTORS CORP.
