Camshaft (RH) Assembly Note

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the crankshaft clockwise to position the crankshaft keyway in the 3 o'clock  position.

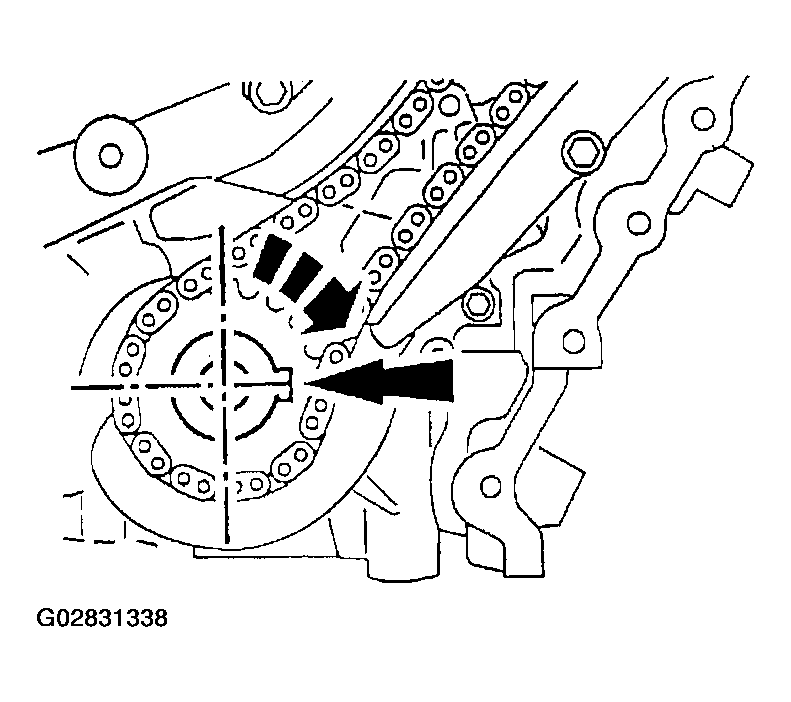

    Fig 1: Positioning Crankshaft Keyway In 3 O'clock Position
    G02831338Courtesy of MAZDA MOTORS CORP.
  2. Install the camshafts (RH).
    1. Position the exhaust camshaft so that the mark is at 12 o'clock  direction.
    2. Position the intake camshaft so that the mark is at 3 o'clock  direction.

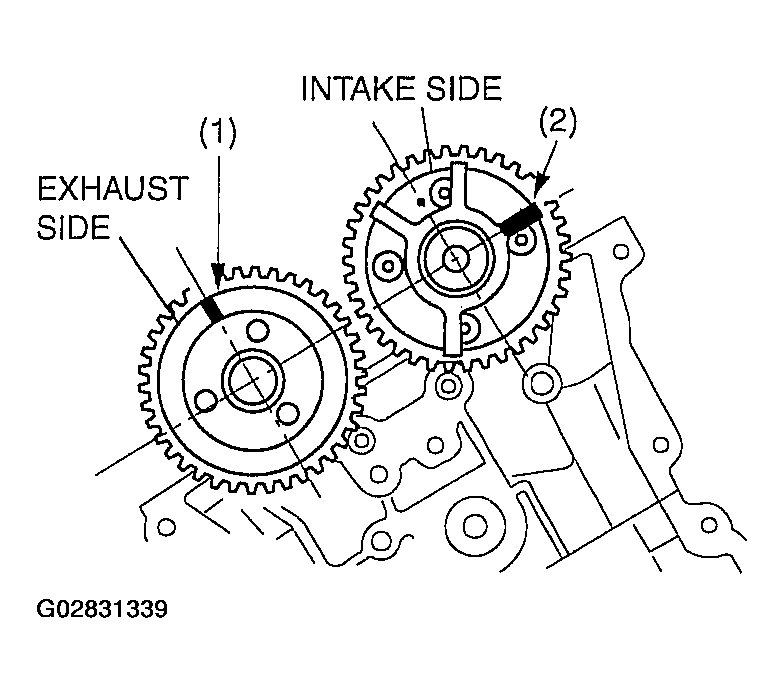

      Fig 2: Installing Camshafts (RH)
      G02831339Courtesy of MAZDA MOTORS CORP.
    3. CAUTION:
    • Do not install thrust caps 1R and 5R at this time, or damage to the thrust caps may occur.
    NOTE:
    • Tighten the camshafts caps at specified torque after assembling the timing chain.
    • The camshaft bearing caps are numbered to make sure they are assembled in their original positions.
  3. Hand tighten the camshaft caps (RH) in their original positions.
