Water Pump Disassembly Note

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water pump mounting bolts as shown.

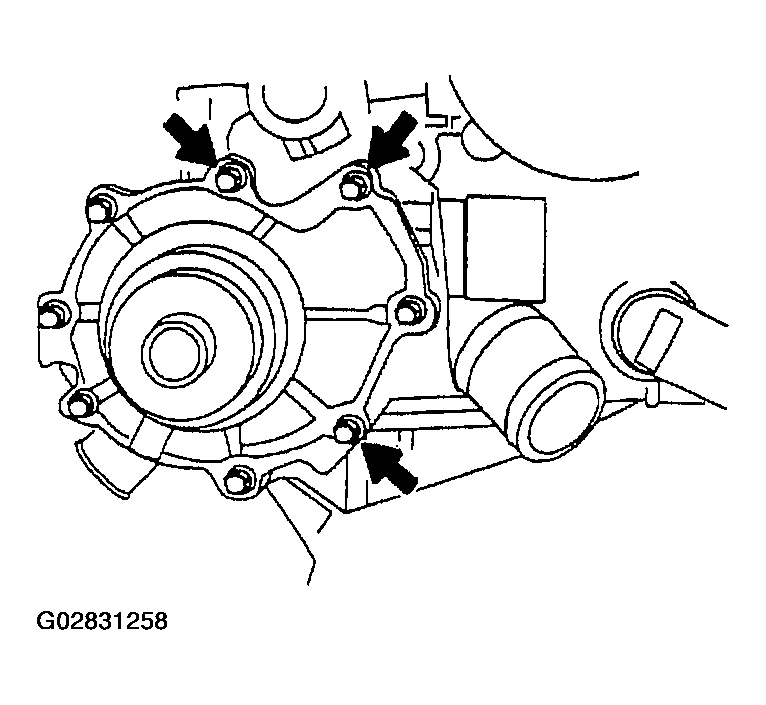

    Fig 1: Removing Water Pump
    G02831258Courtesy of MAZDA MOTORS CORP.
