Cylinder Head Assembly Note

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten the cylinder head bolts in the order indicated in the figure in six steps.
    1. Tighten to 32-38N.m {3.2 - 3.9kgf.m, 23-28 ft.lbf}  .
    2. Tighten 85°-95°  .
    3. Loosen 360°  (one full turn) in reverse order.
    4. Tighten to 32-38N.m {3.2-3.9kgf.m, 23-28 ft.lbf}  .
    5. Tighten 85°-95°  .
    6. Tighten 85°-95°  .

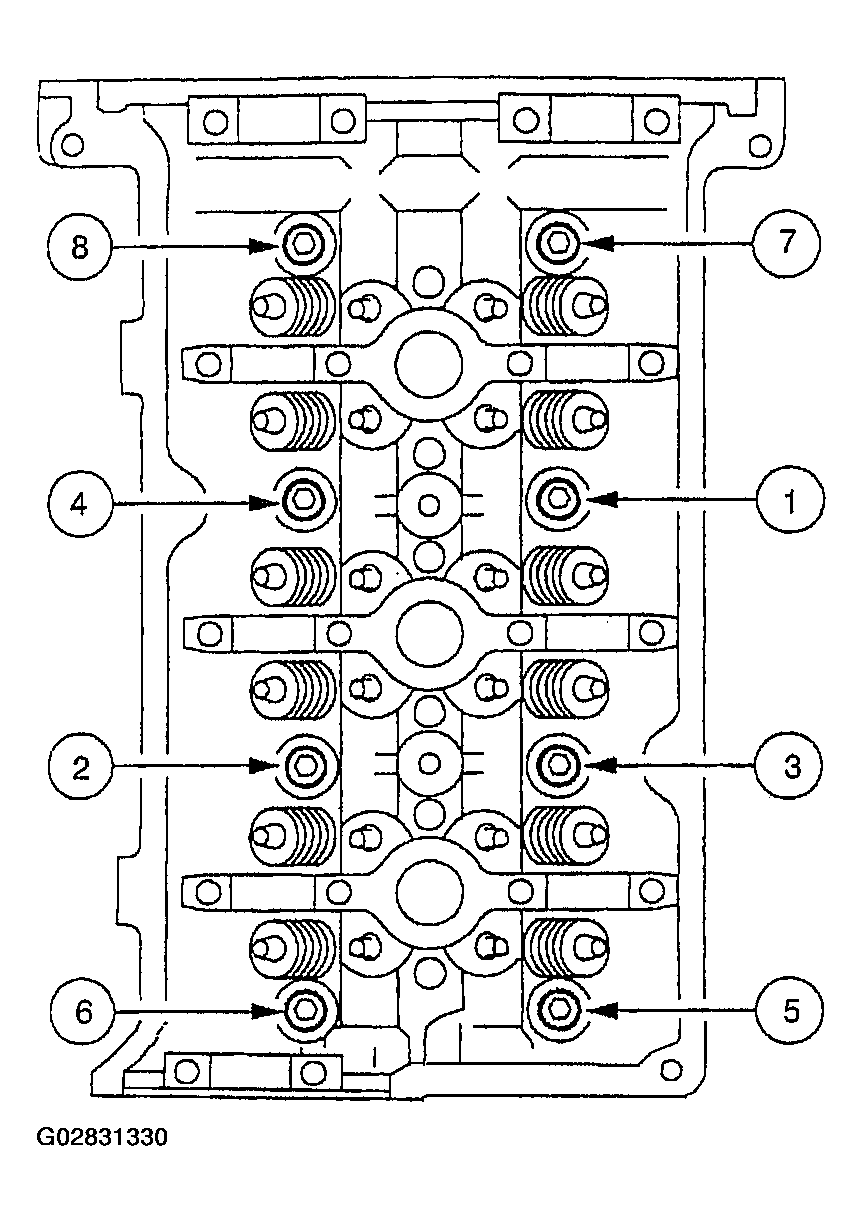

      Fig 1: Cylinder Head Bolt Tightening Sequence
      G02831330Courtesy of MAZDA MOTORS CORP.
