Cylinder Head Assembly (I): Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Assemble in the order Indicated in the table/figure.

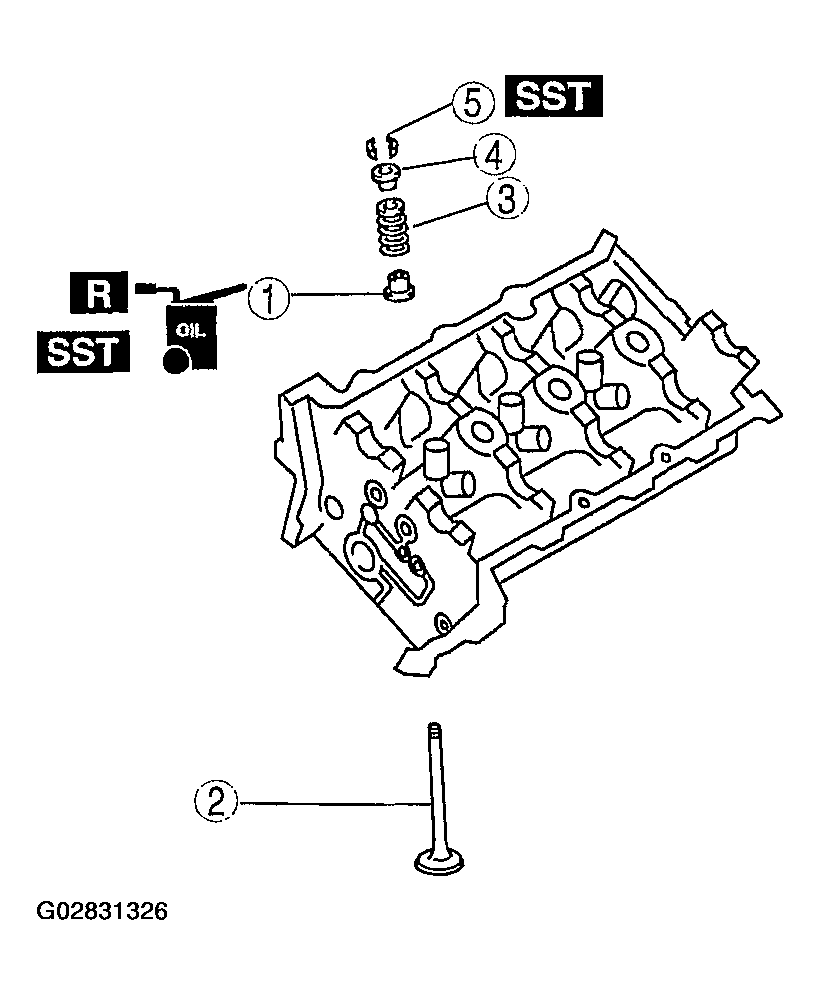

CYLINDER HEAD ASSEMBLY (I)
| Component/Step No. | Component Description |
|---|---|
| 1 | Valve Seal (See VALVE SEAL ASSEMBLY NOTE ) |
| 2 | Valve |
| 3 | Valve Spring |
| 4 | Upper Valve Spring Seat |
| 5 | Valve Keeper (See VALVE KEEPER ASSEMBLY NOTE ) |
