Lower Cylinder Block Disassembly Note

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before removing the lower cylinder block, inspect the crankshaft end play. (See CRANKSHAFT END PLAY INSPECTION .)
  2. Remove the lower cylinder block bolts in the order indicated in the figure in, loosening several passes.

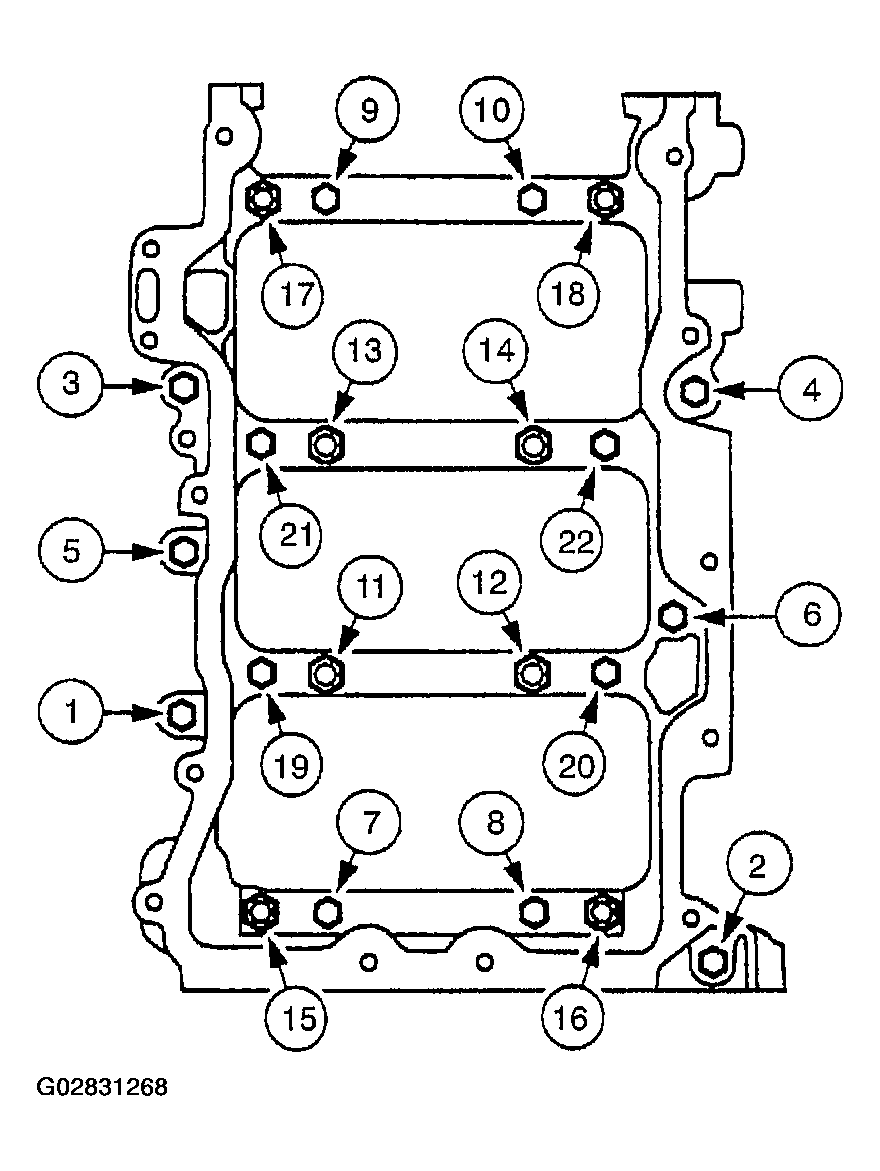

    Fig 1: Lower Cylinder Block Bolt Removal Sequence
    G02831268Courtesy of MAZDA MOTORS CORP.
