Millenia 2.3L

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 Mazda Protege5, 2002 Mazda Protege, 2002 Mazda Millenia, 2002 Mazda MX-5 Miata, and 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fuel pump resistor and relay (speed) is located in left front corner of engine compartment. See Fig 1 . Disconnect fuel pump resistor and relay connector. To check fuel pump resistor, measure resistance between relay terminals "A" and "B". See Fig 2 . Resistance should be .38-.42 ohms. If resistance is not as specified, replace fuel pump resistor and relay (speed).
  2. To check relay, check for continuity between terminals "E" and "F". See Fig 2 . Continuity should not be present. Using fused jumper wires, connect positive battery terminal to connector terminal "C" and ground terminal "D". Continuity should be present between terminals "E" and "F". If continuity is not as specified, replace fuel pump resistor and relay (speed).

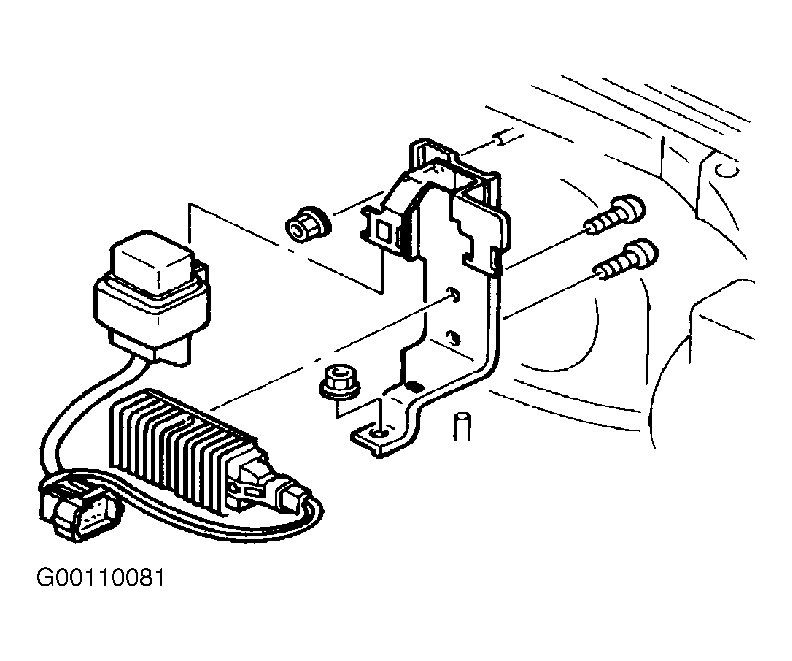

Fig 1: Identifying Fuel Pump Resister & Relay (Millenia 2.3L)
G00110081Courtesy of MAZDA MOTORS CORP.
Fig 2: Identifying Fuel Pump Resistor & Relay Connector Terminals (Millenia 2.3L)
G97A07228Courtesy of MAZDA MOTORS CORP.
