Oil Seal Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV, 2003 Mazda MPV, and 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Drain the ATF. See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .
Remove the drive shaft and joint shaft. See INTERMEDIATE SHAFT and AXLE SHAFT .
Remove and discard the oil seal using a screwdriver.

CAUTION: The oil seal is easily damaged by the sharp edges of the drive shaft splines. Do not let the splines contact the oil seal.

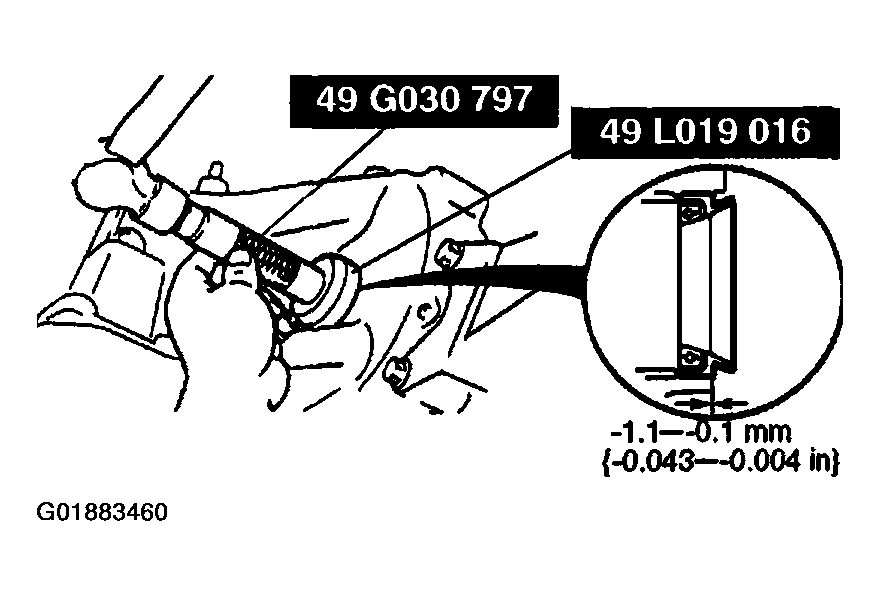

Fig 1: Installing Oil Seal

Courtesy of MAZDA MOTORS CORP.

Using the SSTs and a hammer, tap a new oil seal in evenly until the SSTs contacts the transaxle case.
Coast the lip of the oil seal with ATF.
Install the drive shaft and joint shaft. See INTERMEDIATE SHAFT and AXLE SHAFT .
Add ATF to the specified level. See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .
Carry out the mechanical system test. See Figure.
